STDatasheet (PDF)

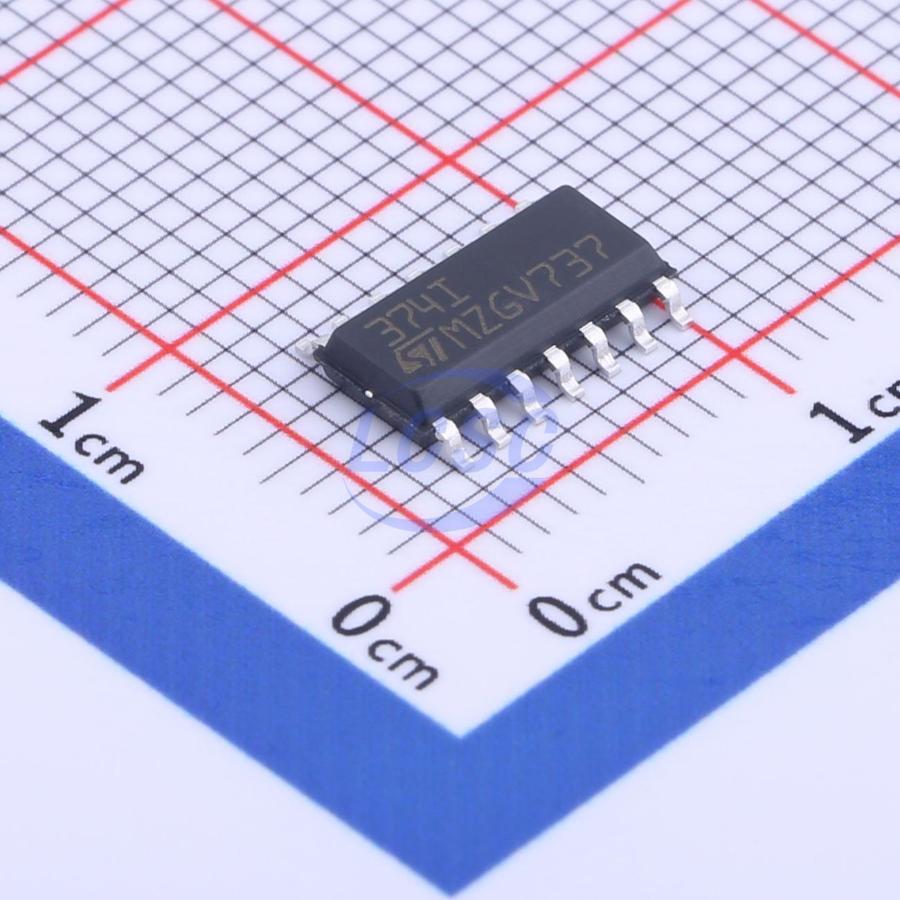

TS374IDT
Four channels 150uA 10mV SOIC-14 Comparators RoHS
SOIC-14ROHS3 CompliantActive
LOW POWER QUAD CMOS VOLTAGE COMPARATOR
- Manufacturer
- ST
- Manufacturer part #
- TS374IDT
- Store part #
- C2688494
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,736 in stock
#C2688494
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.37 | ₹56.37 |
| 10+ | ₹49.73 | ₹497.30 |
| 30+ | ₹46.52 | ₹1,395.60 |
| 100+ | ₹43.09 | ₹4,309.00 |
| 500+ | ₹41.16 | ₹20,580.00 |
| 1,000+ | ₹40.30 | ₹40,300.00 |
1 × ₹56.37
₹56.37
excl. GST
₹66.52 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS374IDT
₹56.37 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 100pA
- Output Mode
- TTL;MOS;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.5V~8V;-8V~-1.5V
- Ib - Input Bias Current
- 1pA
- Propagation Delay(tpd)
- 200ns
- Quiescent Current(Iq)
- 150uA
- Vos - Input Offset Voltage
- 10mV
- Maximum Power Supply Range (Vdd-Vss)
- 18V
- Response Time (tr)
- 200ns
- Single Supply
- 3V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
These devices consist of four independent precision voltage comparators, designed to operate with single or dual supplies. These differential comparators use the STMicroelectronics silicon lin MOS process giving them an excellent consumption - speed ratio. These devices are ideally suited for low consumption applications.
Key features
- WIDE SINGLE SUPPLY RANGE OR DUAL SUPPLIES 3V TO 16V OR ±1.5V TO ±8V
- VERY LOW SUPPLY CURRENT: 0.1mA/COMP INDEPENDENT OF SUPPLY VOLTAGE
- EXTREMELY LOW INPUT BIAS CURRENT: 1pA typ
- EXTREMELY LOW INPUT OFFSET CURRENTS: 1pA typ
- LOW INPUT OFFSET VOLTAGE
- INPUT COMMON - MODE VOLTAGE RANGE INCLUDES GND
- LOW OUTPUT SATURATION VOLTAGE 150mV TYP
- OUTPUT COMPATIBLE WITH TTL, MOS AND CMOS
- HIGH INPUT IMPEDANCE: 10^12Ω typ
- FAST RESPONSE TIME: 200ns TYP FOR TTL LEVEL INPUT STEP
