STDatasheet (PDF)

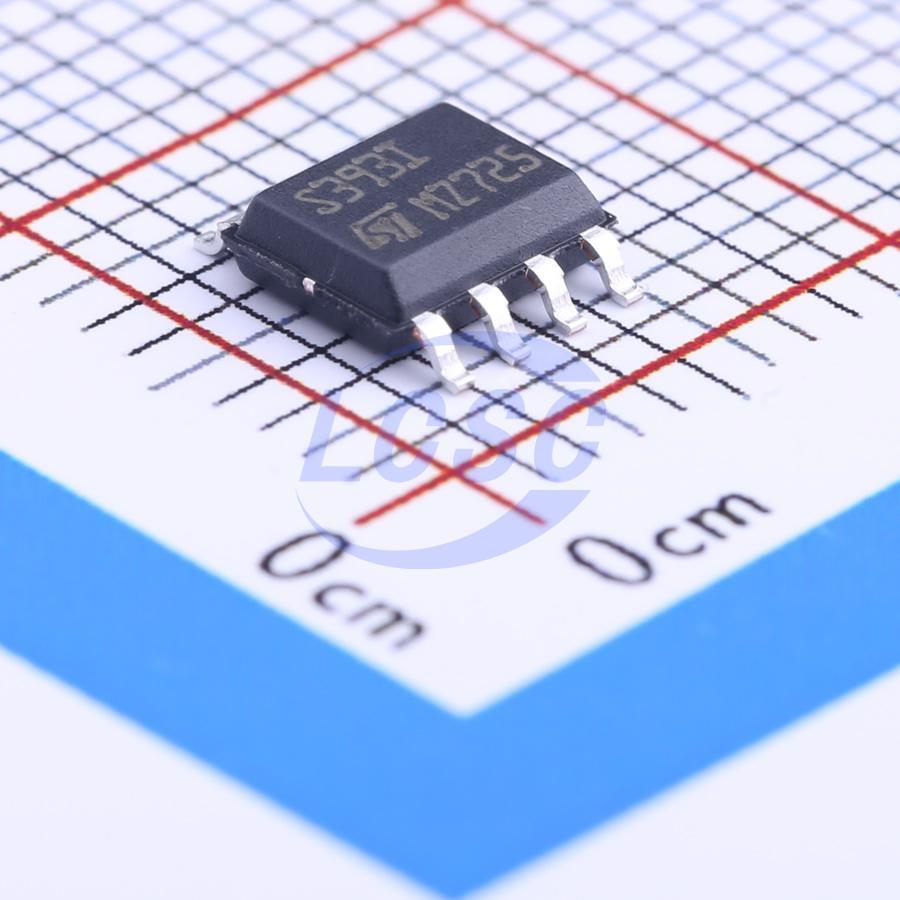

TS393IDT
2 9uA 5mV SO-8 Comparators RoHS
SO-8ROHS3 CompliantActive
Micropower dual CMOS voltage comparators
- Manufacturer
- ST
- Manufacturer part #
- TS393IDT
- Store part #
- C7106
- Package / case
- SO-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C7106
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.26 | ₹206.30 |
| 50+ | ₹33.05 | ₹1,652.50 |
| 150+ | ₹29.53 | ₹4,429.50 |
| 500+ | ₹25.14 | ₹12,570.00 |
| 2,500+ | ₹23.18 | ₹57,950.00 |
| 5,000+ | ₹22.00 | ₹1,10,000.00 |
5 × ₹41.26
₹206.30
excl. GST
₹243.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS393IDT
₹206.30 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 1pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- 1.35V~8V;-8V~-1.35V
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 71dB
- Quiescent Current(Iq)
- 9uA
- Vos - Input Offset Voltage
- 5mV
- Maximum Power Supply Range (Vdd-Vss)
- 18V
- Single Supply
- 2.7V~16V
- Response Time (tr)
- 2.5us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The TS393 device is a micropower CMOS dual voltage comparator with extremely low consumption of 9 μA typically per comparator (20 times less than the dual bipolar LM393 device). Similar performance is offered by the dual micropower comparator TS3702 with a pushpull CMOS output. Thus response times remain similar to the LM393 device.
Key features
- Extremely low supply current: typically 9 μA per comparator
- Wide single supply range 2.7 V to 16 V or dual supplies (±1.35 V to ±8 V)
- Extremely low input bias current: 1 pA typical
- Extremely low input offset current: 1 pA typical
- Input common-mode voltage range includes ground
- High input impedance: 10¹² Ω typ.
- Fast response time: 2.5 μs typ. for 5 mV overdrive
- Pin-to-pin and functionally compatible with dual bipolar LM393
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LTC393YS8/R8#C2888116Linearin · SOIC-8 | Linearin | SOIC-8 | 3,662 | ₹37.45 · 3,662 in stock | View |
 | LM393DT-TP#C48543199TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,360 | ₹6.17 · 2,360 in stock | View |
