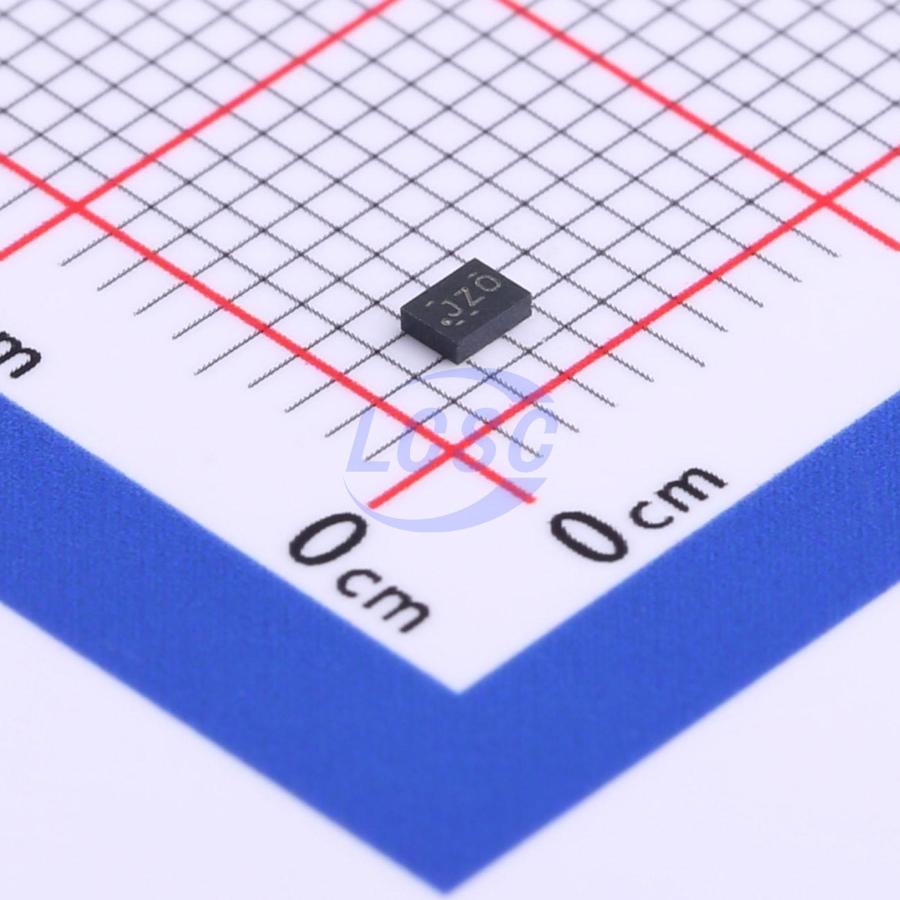

TS3A24157RSER

1.65V~3.6V UQFN-10(1.5x2) Analog Switches, Multiplexers, Demultiplexers RoHS

UQFN-10(1.5x2)ROHS3 CompliantActive

2-Channel SPDT Analog Switch, 2-Channel 2:1 Multiplexer and Demultiplexer

Manufacturer: TI
Manufacturer part #: TS3A24157RSER
Store part #: C575568
Package / case: UQFN-10(1.5x2)
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,466 in stock

#C575568

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹107.90	₹107.90
10+	₹83.97	₹839.70
30+	₹73.74	₹2,212.20
100+	₹63.52	₹6,352.00
500+	₹57.43	₹28,715.00
1,000+	₹54.16	₹54,160.00

Quantity (min 1)

1 × ₹107.90

₹107.90

excl. GST

₹127.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS3A24157RSER

₹107.90 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Features: Break-before-make function
Operating Temperature: -40℃~+85℃
Quiescent Current: 200nA
Voltage - Supply: 1.65V~3.6V
Voltage Supply Source: Single Supply
Propagation Delay: 35ns@3V,35pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.069 g

Overview

The TS3A24157 is a bidirectional, 2-channel, single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 3.6 V. The device offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature, to prevent signal distortion during the transfer of a signal from one channel to another. The device has excellent total harmonic distortion (THD) performance and consumes very-low power. These features make this device suitable for portable audio applications.

Applications

Cell Phones
PDAs
Portable Instrumentation
Audio and Video Signal Routing
Low-Voltage Data Acquisition Systems
Communication Circuits
Modems Hard Drives
Computer Peripherals Wireless Terminals and Peripherals

Key features

Specified Break-Before-Make Switching
Low ON-State Resistance (0.65-Ω Maximum)
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion
1.65-V to 3.6-V Single-Supply Operation
Bidirectional Signal Paths
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
