TECH PUBLIC

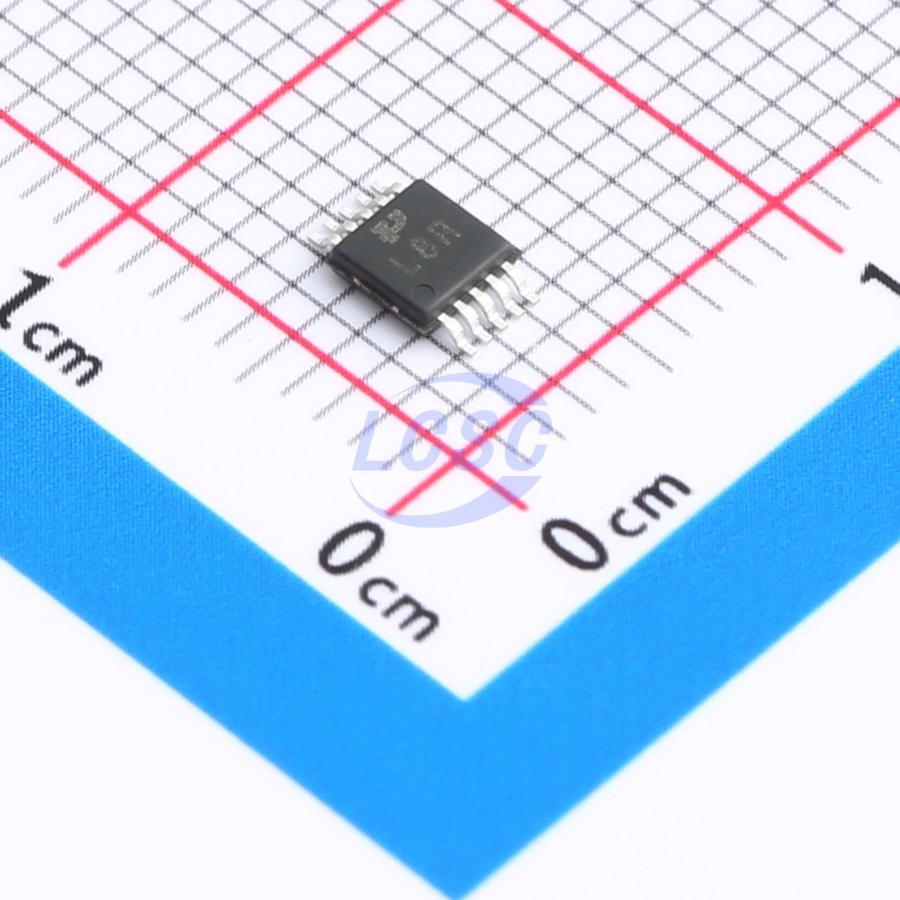

TS3A24159DGSR-TP

2 1.5V~5.5V 1Ω MSOP-10L Analog Switches, Multiplexers, Demultiplexers

MSOP-10LRoHSActive

Dual SPDT Analog Switches in UCSP

Manufacturer: TECH PUBLIC
Manufacturer part #: TS3A24159DGSR-TP
Store part #: C47117648
Package / case: MSOP-10L
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,960 in stock

#C47117648

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹38.10	₹190.50
50+	₹29.69	₹1,484.50
150+	₹26.08	₹3,912.00
500+	₹21.58	₹10,790.00
2,500+	₹19.58	₹48,950.00
4,000+	₹18.38	₹73,520.00

Quantity (min 5, multiples of 5)

5 × ₹38.10

₹190.50

excl. GST

₹224.79 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TS3A24159DGSR-TP

₹190.50 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 2
Voltage - Supply: 1.5V~5.5V
Ron: 1Ω
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.519 g

Overview

The is a dual SPDT low on-resistance analog switch. It can operate from a single 1.5V to 5.5V power supply. The device offers low ON-state resistance and excellent ON-state resistance matching with break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device is capable of true isolation. Even when COMx overrides VCC, very little current will flow back to the supply.

Applications

Mobile Phones, Tablets and Notebooks
USB Type-C Mic/Gnd Switch
Audio, Vide0, UART, USB2.0 Signal and Supply Routing
Telecom Signal Switching
Sample and Hold Systems
Signal Gating, Multiplexer/Demultiplexer

Key features

Low On-resistance, Ron = 1Ω
1.8V Logic Compatible Control Pin
High Off-Isolation: -100dB @ 100KHz
COMx Overrides VCC to Achieve True Isolation Even When Supply Is Dead
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @300MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
Small Packaging: MSOP-10L
