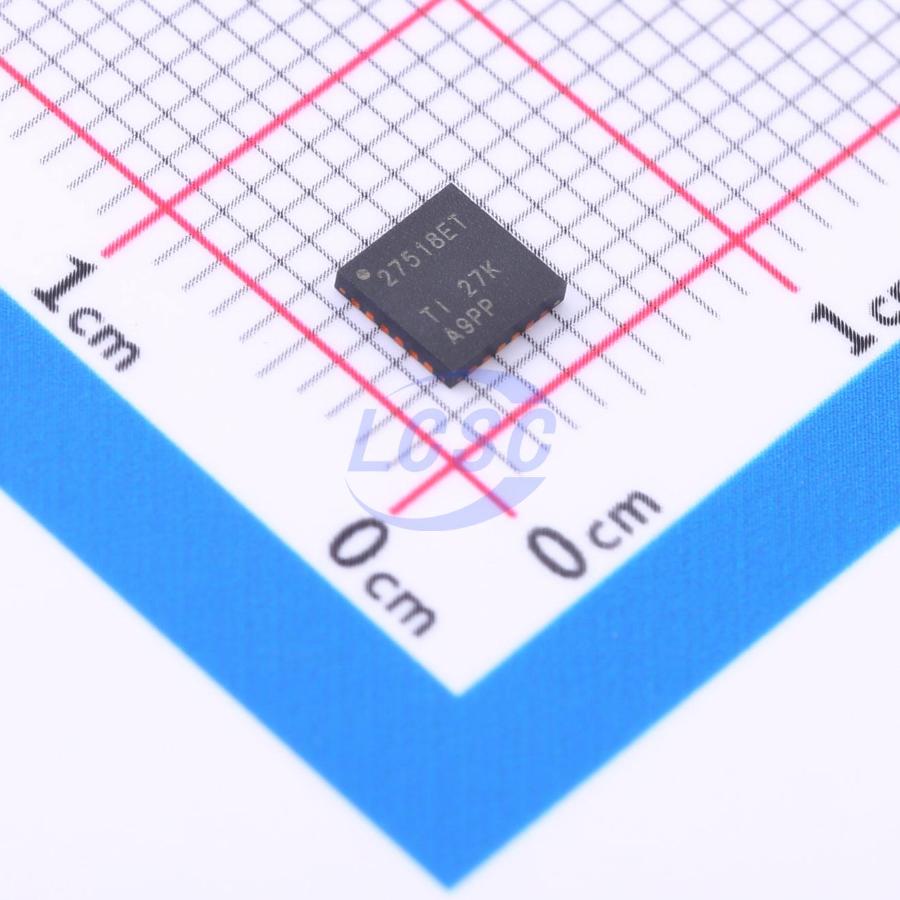

TS3A27518ETRTWRQ1

The TS3A27518E-Q1 is a 6-bit, 2-to-1 multiplexer/demultiplexer designed to operate at supply voltages from 1.65V to 3.6V. This device can handle both digital and analog signals, and allows signal transmission up to V+ in either direction. The TS3A27518E-Q1 features two control pins, each simultaneously controlling three 2-to-1 multiplexers, and an enable pin that places all outputs into high-impedance mode. The control pins are compatible with 1.8V logic thresholds and are also backward compatible with 2.5V and 3.3V thresholds. Since the SDIO interface contains 6-bit signals — CMD, CLK, and Data[0:3] — the TS3A27518E-Q1 allows SD, SDIO, and multimedia card host controllers to expand to multiple cards or peripherals. The TS3A27518E-Q1's two control pins provide users with additional flexibility, such as multiplexing different audio/video signals between two devices (e.g., LCD TVs, LCD monitors, or laptop docking stations).

Applications

• SD/SDIO and MMC dual-port multiplexer
• PC VGA video multiplexer/video system
• Audio and video signal routing

Key features

• Qualified for automotive applications with the following AEC-Q100 characteristics:
• Device temperature grade 2: -40°C to 105°C ambient operating temperature range
• Device HBM ESD classification level H2
• Device CDM ESD classification level C3B
• Functional Safety documentation available to aid functional safety system design
• 1.65V to 3.6V single-supply operation
• Power-off protection (isolation in power-down mode, high-impedance state when V+=0)
• Low-capacitance switching, 21.5pF (typical)
• Up to 240MHz bandwidth for high-speed rail-to-rail signal handling
• Crosstalk and off-isolation: -62dB
• 1.8V logic threshold compatibility for control inputs
• Control inputs tolerant of 3.6V
• ESD performance: NC/NO ports
• ±6KV contact discharge (IEC 61000-4-2)
• 24-pin TSSOP (7.80mm×4.40mm) and 24-pin QFN (4.00mm×4.00mm) packages
