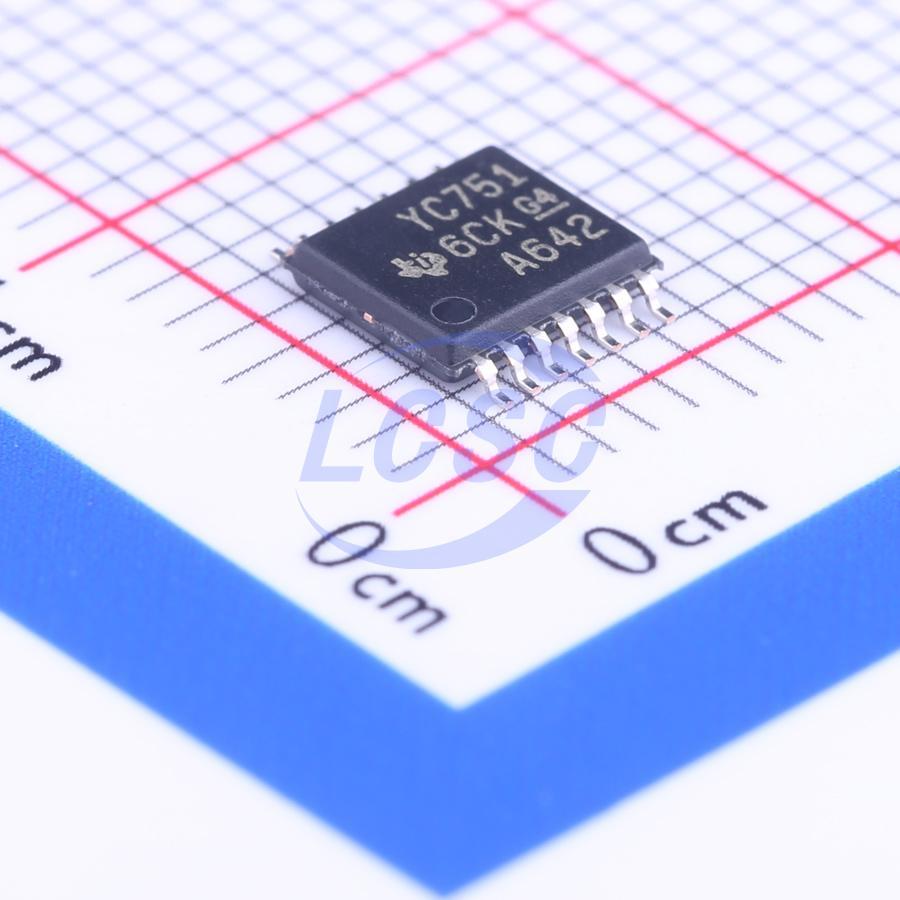

TS3A4751PWR

The TS3A4751 device is a bidirectional, 4-channel, normally open (NO) single-pole single-throw (SPST) analog switch that operates from a single 1.6-V to 3.6-V supply. This device has fast switching speeds, handles rail-to-rail analog signals, and consumes very low quiescent power. The digital input is 1.8-V CMOS compatible when using a 3-V supply. The TS3A4751 device has four normally open (NO) switches. The TS3A4751 is available in a 14-pin thin shrink small-outline package (TSSOP) and in spacesaving 14-pin VQFN (RGY) and micro X2QFN (RUC) packages.

Applications

• Power Routing
• Battery-Powered Systems
• Audio and Video Signal Routing
• Low-Voltage Data-Acquisition Systems
• Communications Circuits
• PCMCIA Cards
• Cellular Phones
• Modems
• Hard Drives

Key features

• Low ON-State Resistance (RON)
• 0.9 Ω Max (3-V Supply), 1.5 Ω Max (1.8-V Supply)
• RON Flatness: 0.4 Ω Max (3-V)
• RON Channel Matching: 0.05 Ω Max (3-V Supply), 0.15 Ω Max (1.8-V Supply)
• 1.6-V to 3.6-V Single-Supply Operation
• 1.8-V CMOS Logic Compatible (3-V Supply)
• High Current-Handling Capacity (100 mA Continuous)
• Fast Switching: fON = 5 ns, fOFF = 4 ns
• Supports Both Digital and Analog Applications
• ESD Protection Exceeds JESD-22: ±4000-V Human Body Model (A114-A), 300-V Machine Model (A115-A), ±1000-V Charged-Device Model (C101)
