TS3A5017DR
2.3V~3.6V 12Ω 2 SOIC-16 Analog Switches, Multiplexers, Demultiplexers RoHS
SOIC-16ROHS3 CompliantActive

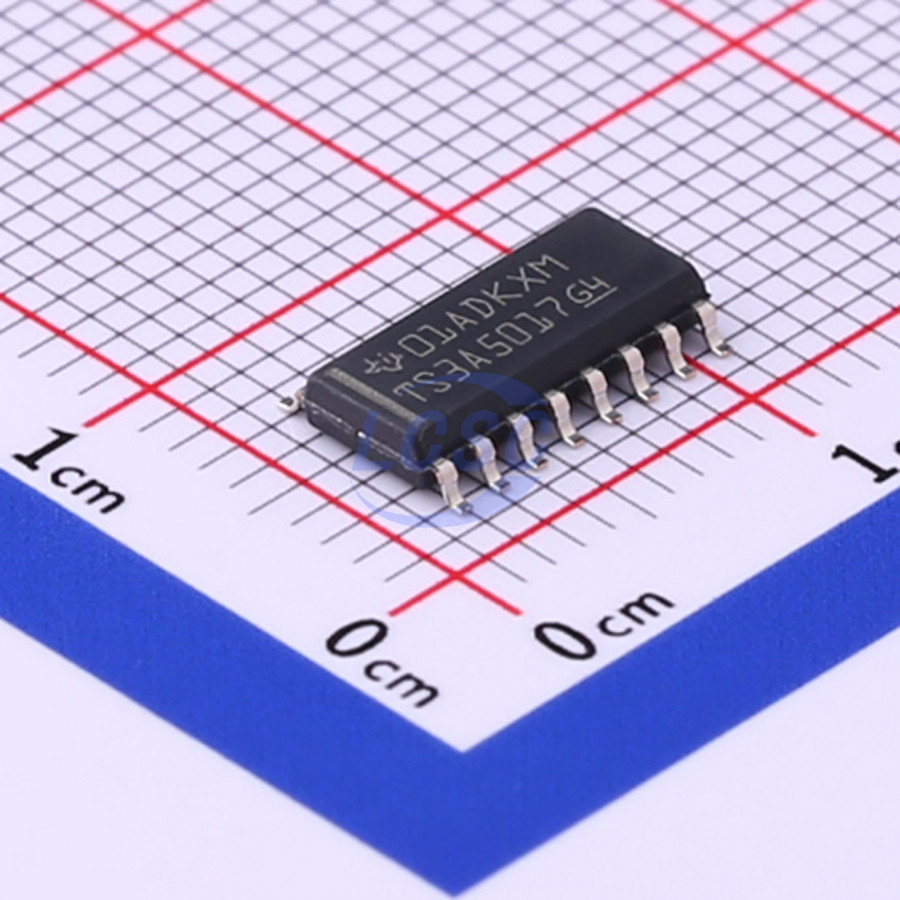

TS3A5017 Dual SP4T Analog Switch/ Multiplexer/ Demultiplexer
- Manufacturer
- TI
- Manufacturer part #
- TS3A5017DR
- Store part #
- C181505
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
880 in stock
#C181505
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹99.09 | ₹99.09 |
| 10+ | ₹79.80 | ₹798.00 |
| 30+ | ₹70.04 | ₹2,101.20 |
| 100+ | ₹60.29 | ₹6,029.00 |
| 500+ | ₹54.43 | ₹27,215.00 |
| 1,000+ | ₹51.61 | ₹51,610.00 |
1 × ₹99.09
₹99.09
excl. GST
₹116.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS3A5017DR
₹99.09 for 1 + GST
Specifications
- Features
- Bidirectional analog channel;Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 2.3V~3.6V
- Ron
- 12Ω
- Number of Channels
- 2
- Con
- 25pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.296 g
Overview
The TS3A5017 device is a dual single-pole quadruple-throw (4:1) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.
Applications
- Sample-and-Hold Circuits
- Battery-Powered Equipment
- Audio and Video Signal Routing
- Communication Circuits
Key features
- Isolation in the Powered-Down Mode, V+=0
- Low ON-State Resistance
- Low Charge Injection
- Excellent ON-State Resistance Matching
- Low Total Harmonic Distortion (THD)
- 2.3-V to 3.6-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
- ESD Performance Tested Per JESD 22 – 2000-V Human-Body Model (A114-B, Class II)
- 1000-V Charged-Device Model (C101)
