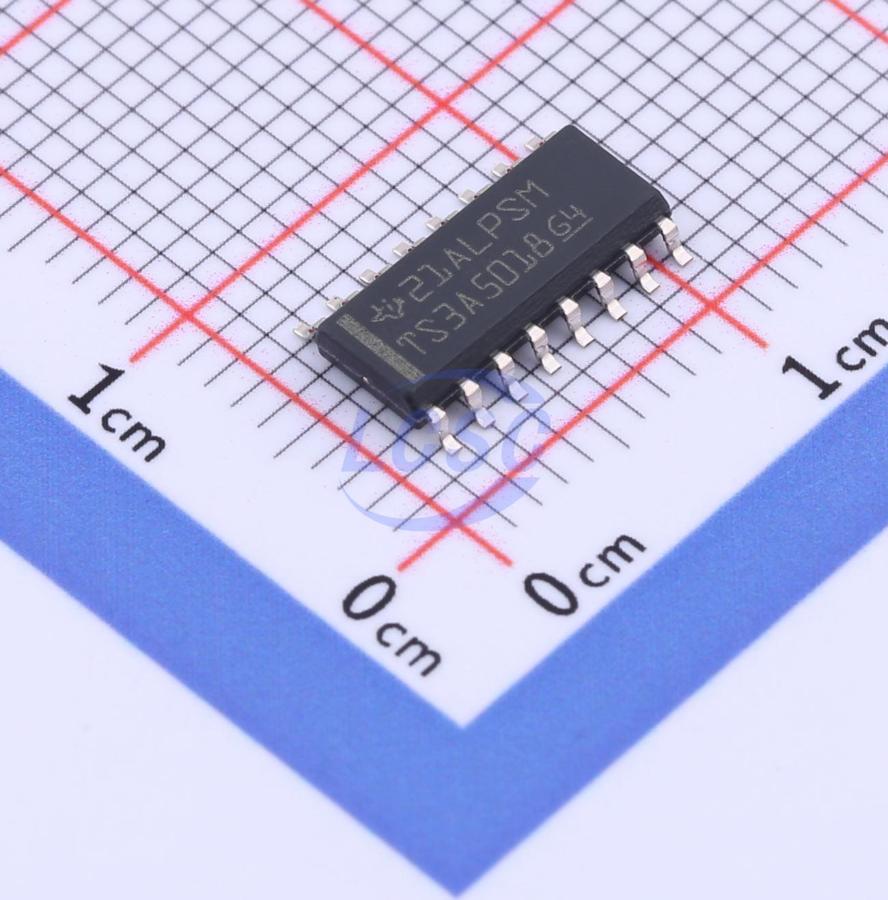

TS3A5018DR
4 Circuit IC SWITCH 2:1 7Ω SOIC-16
SOIC-16ROHS3 CompliantActive
TS3A5018 10Q Quad SPDT Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- TS3A5018DR
- Store part #
- C2651910
- Package / case
- SOIC-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,557 in stock
#C2651910
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.32 | ₹76.32 |
| 10+ | ₹65.26 | ₹652.60 |
| 30+ | ₹57.46 | ₹1,723.80 |
| 100+ | ₹51.17 | ₹5,117.00 |
| 500+ | ₹49.23 | ₹24,615.00 |
| 1,000+ | ₹47.92 | ₹47,920.00 |
1 × ₹76.32
₹76.32
excl. GST
₹90.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TS3A5018DR
₹76.32 for 1 + GST
Specifications
- Features
- Bidirectional analog channel;Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 1.65V~3.6V
- Ron
- 7Ω
- Number of Channels
- 4
- Con
- 16pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.216 g
Overview
The TS3A5018 is a quad single-pole double-throw (SPDT) analog switch designed to operate at 1.8V to 3.6V. The device can handle both digital and analog signals, with signals up to V+ passing in either direction.
Applications
- Sample-and-hold circuits
- Battery-powered devices
- Audio and video signal routing
- Communication circuits
Key features
- Low on-resistance (10Ω)
- Low charge injection
- Excellent on-resistance matching
- Low total harmonic distortion (THD)
- 1.8V to 3.6V single-supply operation
- Latch-up performance exceeds JESD 78 Class II specification by 100mA
- ESD performance tested per JESD 22 standard
- 2000V Human Body Model (A114-B, Class II)
- 1000V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74LVC157XS16G/TR#C5153220SGMICRO · SOIC-16 | SGMICRO | SOIC-16 | On request | Price on request | Quote | |
