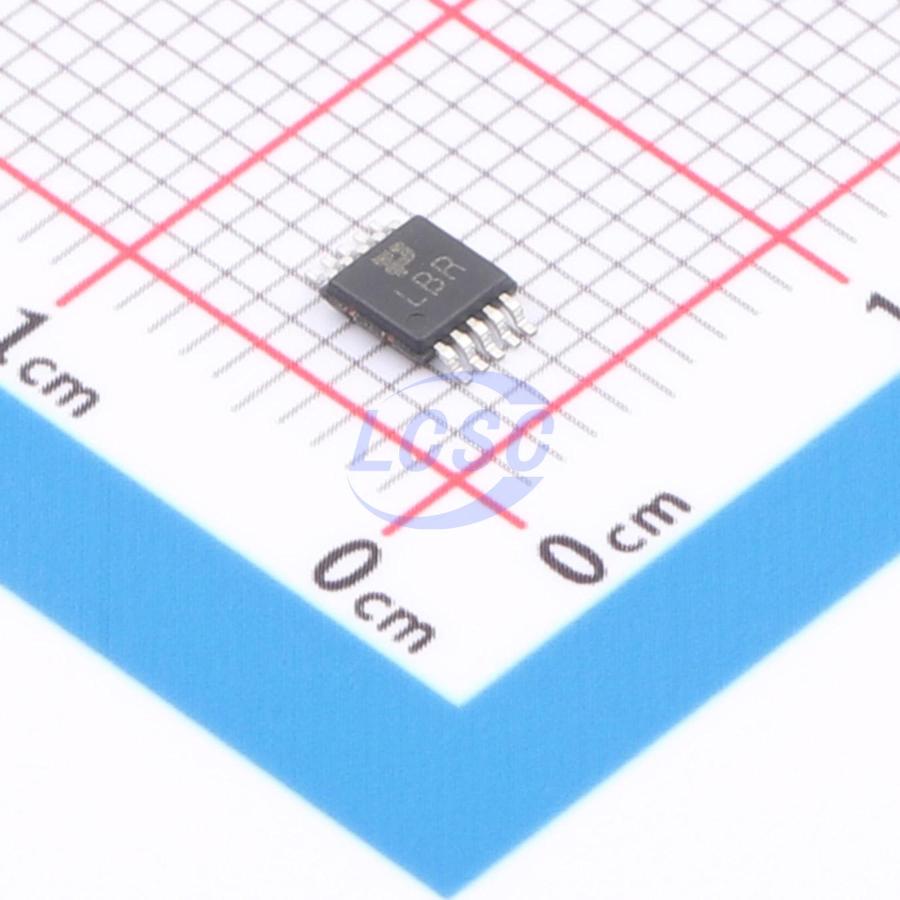

TS3USB30EDGSR-TP
2 11Ω 2.5V~5.5V MSOP-10L Analog Switches, Multiplexers, Demultiplexers RoHS
MSOP-10LROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TS3USB30EDGSR-TP
- Store part #
- C49375124
- Package / case
- MSOP-10L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,505 in stock
#C49375124
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.89 | ₹184.45 |
| 50+ | ₹32.36 | ₹1,618.00 |
| 150+ | ₹30.43 | ₹4,564.50 |
| 500+ | ₹28.01 | ₹14,005.00 |
| 2,500+ | ₹26.94 | ₹67,350.00 |
| 4,000+ | ₹26.29 | ₹1,05,160.00 |
5 × ₹36.89
₹184.45
excl. GST
₹217.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TS3USB30EDGSR-TP
₹184.45 for 5 + GST
Specifications
- Features
- Fault protection;Bidirectional analog channel
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 2
- Ron
- 11Ω
- Voltage - Supply
- 2.5V~5.5V
- Propagation Delay
- 200ps
- Con
- 4pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
This is a bidirectional, low-power, dual-port high-speed USB 2.0 analog switch with integrated protection, designed specifically for USB Type-C systems. The device is configured as a dual 2:1 or 1:2 switch, optimized for USB 2.0 DP/DM lines in USB Type-C systems. Integrated overvoltage protection on the D+/- pins withstands voltages up to DC 30V, with an auto-shutdown circuit to protect downstream system components. GPIO control logic for SEL and QE is 1.8V compatible. Available in a lead-free and halogen-free MSOP-10L package, the device is ideal for mobile and space-constrained applications.
Applications
- Mobile phones, tablets, and laptops
- Any application using USB Type-C or Micro-B connectors
Key features
- Low on-resistance, Ron=10Ω
- Differential 2:1 or 1:2 switch/multiplexer
- +/- ports support overvoltage protection up to DC 30V
- D+/- ports provide IEC 64000-4-5 surge protection: ±30V without external TVS
- System-side clamp voltage pulse less than 9V, duration less than 200ns
- Insertion loss: -1dB@200MHz, -2dB@650MHz, -3dB@1GHz
- Wide supply voltage range: 2.5V ~ 5.5V
