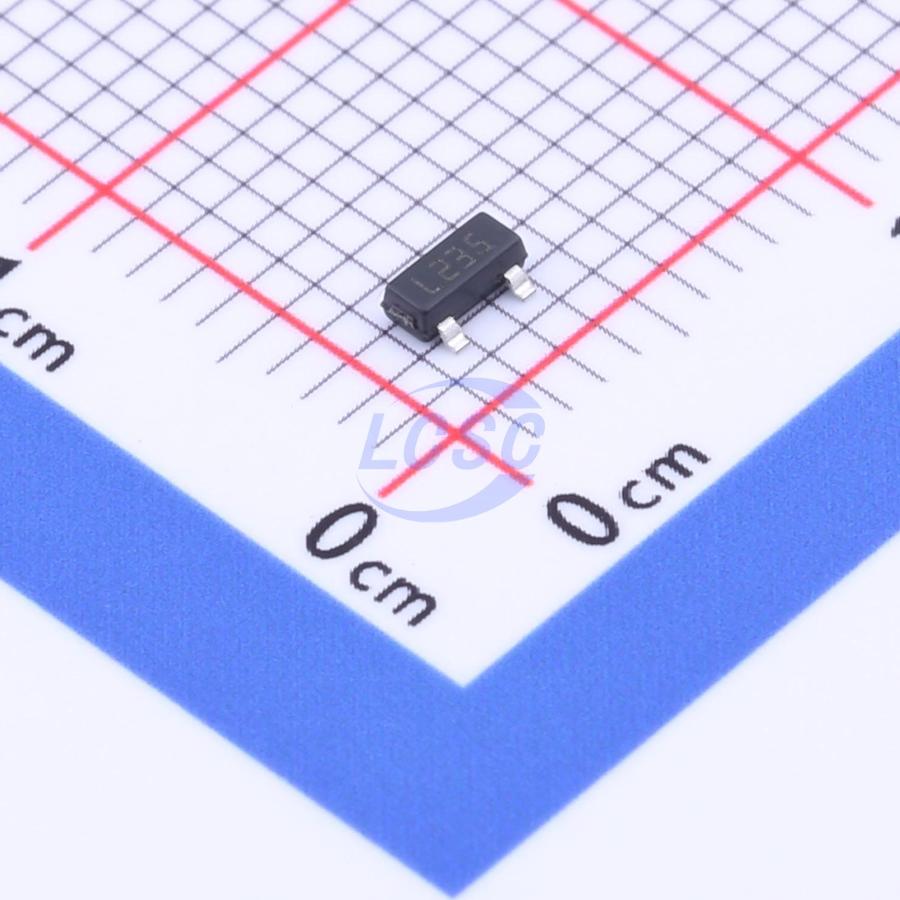

TS432ILT
1.24V~10V ±1% 12mA Adjustable SOT-23 Voltage Reference RoHS
SOT-23ROHS3 CompliantActive
1.24 V adjustable shunt voltage reference
- Manufacturer
- ST
- Manufacturer part #
- TS432ILT
- Store part #
- C2157631
- Package / case
- SOT-23
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,151 in stock
#C2157631
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹110.22 | ₹110.22 |
| 10+ | ₹88.44 | ₹884.40 |
| 30+ | ₹77.44 | ₹2,323.20 |
| 100+ | ₹66.65 | ₹6,665.00 |
| 500+ | ₹60.18 | ₹30,090.00 |
| 1,000+ | ₹56.73 | ₹56,730.00 |
1 × ₹110.22
₹110.22
excl. GST
₹130.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS432ILT
₹110.22 for 1 + GST
Specifications
- Output Voltage
- 1.24V~10V
- Quiescent Current
- 60uA
- Tolerance
- ±1%
- Minimum Cathode Current for Regulation
- 60uA
- Reference Type
- Parallel
- Output Current
- 12mA
- Operating Temperature
- -40℃~+85℃@(Ta)
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.08 g
Overview
An adjustable low power shunt voltage reference providing an output voltage from 1.24 V to 10 V over the industrial temperature range (-40°C to +85°C). Available in SOT23-3 surface mount package, it can be designed in applications where space saving is critical. The low operating current is also a key advantage for power restricted designs. In addition, it is very stable and can be used in a broad range of application conditions.
Applications
- Computers
- Instrumentation
- Battery chargers
- Switch mode power supply
- Battery operated equipments
Key features
- 1.24 V typical output voltage
- Ultra low operating current: 60 μA maximum at 25°C
- High precision at 25°C: +1 - 1%
- High stability when used with capacitive loads
- Industrial temperature range: -40°C to +85°C
- 100 ppm/°C temperature coefficient
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TL432ASF#C126099HTC · SOT-23 | HTC | SOT-23 | 1,085 | ₹20.49 · 1,085 in stock | View |
 | TP432R124S3#C47117585TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,285 | ₹12.33 · 2,285 in stock | View |
