TECH PUBLIC

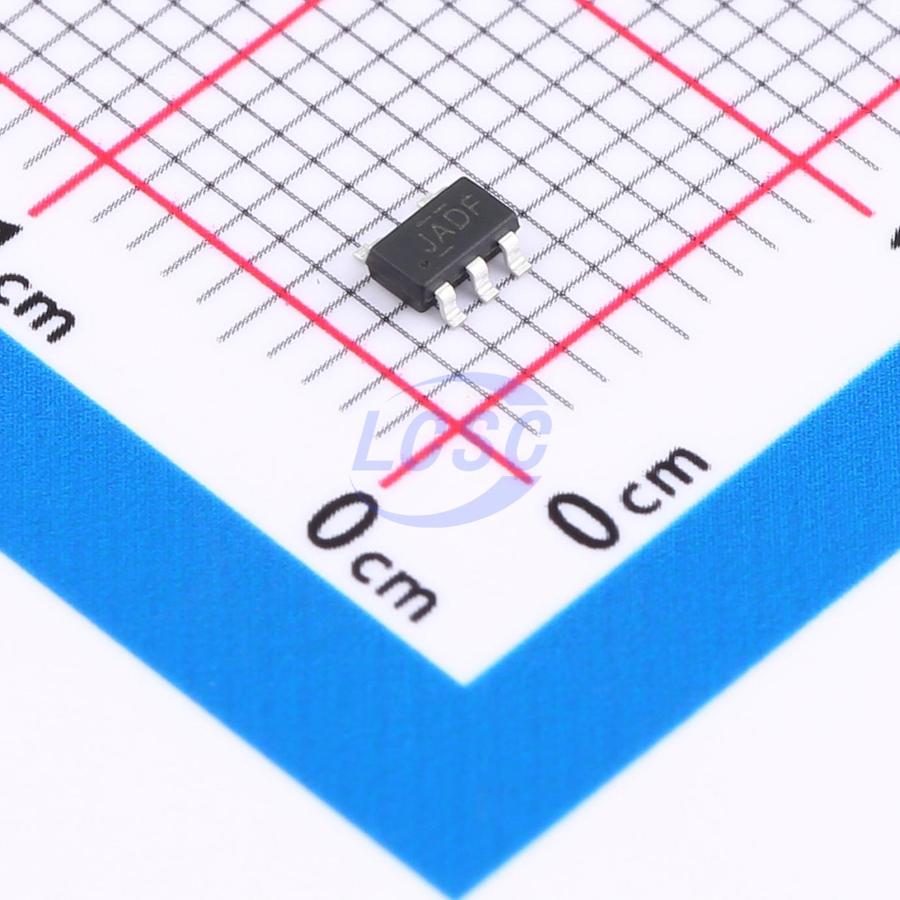

TS5A1066DBVR-TP

1 5.6Ω 1.6V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers

SOT-23-5RoHSActive

SINGLE-CHANNEL 1OQ SPST Analog Switches

Manufacturer: TECH PUBLIC
Manufacturer part #: TS5A1066DBVR-TP
Store part #: C47117650
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,800 in stock

#C47117650

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹15.24	₹76.20
50+	₹13.27	₹663.50
150+	₹12.42	₹1,863.00
500+	₹11.36	₹5,680.00
3,000+	₹10.90	₹32,700.00
6,000+	₹10.61	₹63,660.00

Quantity (min 5, multiples of 5)

5 × ₹15.24

₹76.20

excl. GST

₹89.92 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A1066DBVR-TP

₹76.20 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 5.6Ω
Voltage - Supply: 1.6V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

A low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, Ron = 10Ω
1.8V Logic Compatible Control Pin Overrides V+ to Achieve True Isolation Even When Supply Is Dead
High Off-Isolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @400MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
