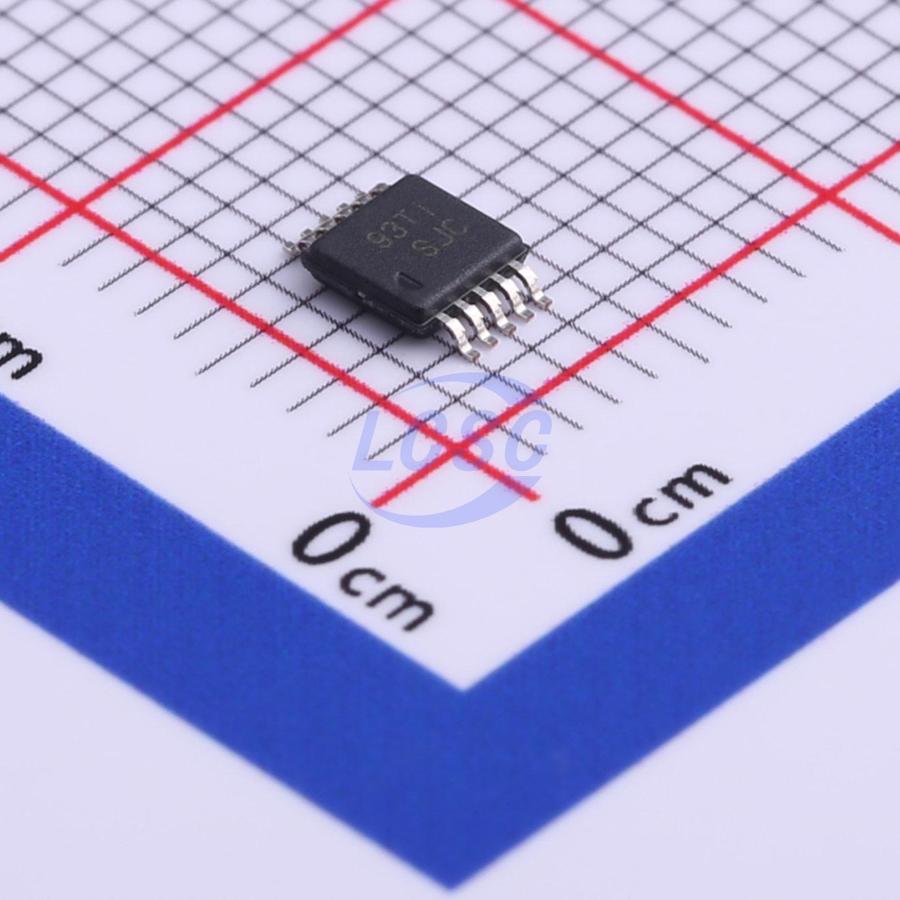

TS5A23157QDGSRQ1
2 15Ω 1.65V~5.5V VSSOP-10-0.5mm Analog Switches, Multiplexers, Demultiplexers RoHS
VSSOP-10-0.5mmROHS3 CompliantActive
DUAL 15-Q SPDT ANALOG SWITCH
- Manufacturer
- TI
- Manufacturer part #
- TS5A23157QDGSRQ1
- Store part #
- C523778
- Package / case
- VSSOP-10-0.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C523778
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹115.82 | ₹115.82 |
| 10+ | ₹90.61 | ₹906.10 |
| 30+ | ₹77.79 | ₹2,333.70 |
| 100+ | ₹65.18 | ₹6,518.00 |
| 500+ | ₹54.11 | ₹27,055.00 |
| 1,000+ | ₹50.19 | ₹50,190.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
Specifications
- Features
- Bidirectional analog channel
- Operating Temperature
- -40℃~+125℃
- Number of Channels
- 2
- Ron
- 15Ω
- Voltage - Supply
- 1.65V~5.5V
- Con
- 17.5pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
Low Total Harmonic Distortion 1.8-V to 5.5-V Single-Supply Operation
Applications
- Sample-and-Hold Circuits
- Battery-Powered Equipment
- Audio and Video Signal Routing
- Communication Circuits
Key features
- Qualified for Automotive Applications
- AEC-Q100 Qualified With the Following Results: Device Temperature Grade 1: -40°C to 125°C; Device HBM ESD Classification Level H2; Device CDM ESD Classification Level C4B
- Customer-Specific Configuration Control Can Be Supported Along With Major-Change Approval
- Specified Break-Before-Make Switching
- Low ON-State Resistance (15 Ω)
- Control Inputs Are 5-V Tolerant
- Low Charge Injection
- Excellent ON-Resistance Matching
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS5A23157TDGSRQ1#C130086TI · VSSOP-10-0.5mm | TI | VSSOP-10-0.5mm | 933 | ₹92.62 · 933 in stock | View |
 | TS5A23157DGSR#C11133TI · MSOP-10 | TI | MSOP-10 | 707 | ₹59.18 · 707 in stock | View |
 | U7SB3157G-SM2-R#C2934665UTC · MSOP-10 | UTC | MSOP-10 | 3,970 | ₹31.14 · 3,970 in stock | View |
 | PI5A23157UEX#C19950417DIODES · MSOP-10 | DIODES | MSOP-10 | 5 | ₹97.85 · 5 in stock | View |
 | ADG736BRMZ-REEL#C31152ADI · MSOP-10 | ADI | MSOP-10 | 200 | ₹768.95 · 200 in stock | View |
