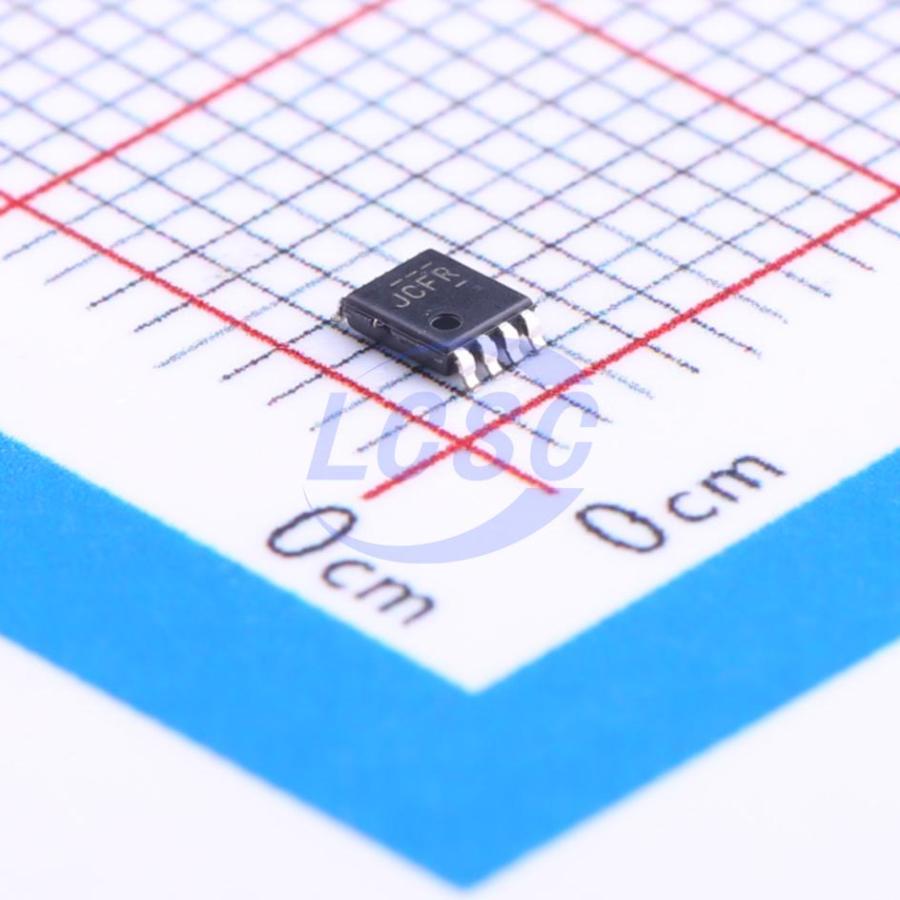

TS5A3154DCUR

900mΩ 1 1.65V~5.5V VSSOP-8-0.5mm Analog Switches, Multiplexers, Demultiplexers RoHS

VSSOP-8-0.5mmROHS3 CompliantActive

TS5A3154 0.9-Ω SPDT Analog Switch

Manufacturer: TI
Manufacturer part #: TS5A3154DCUR
Store part #: C165139
Package / case: VSSOP-8-0.5mm
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,982 in stock

#C165139

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
1+	₹78.88	₹78.88
10+	₹66.71	₹667.10
30+	₹58.24	₹1,747.20
100+	₹51.07	₹5,107.00
500+	₹48.90	₹24,450.00
1,000+	₹47.59	₹47,590.00

Quantity (min 1)

1 × ₹78.88

₹78.88

excl. GST

₹93.08 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3154DCUR

₹78.88 for 1 + GST

Specifications

Features: Glitch-free switching
Operating Temperature: -40℃~+85℃
Ron: 900mΩ
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.034 g

Overview

The TS5A3154 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and an excellent channel-to-channel ON-state resistance matching. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.

Applications

Cell Phones
PDAs
Portable Instrumentation
Audio and Video Signal Routing
Low-Voltage Data-Acquisition Systems
Communication Circuits
Modems
Hard Drives
Computer Peripherals
Wireless Terminals and Peripherals

Key features

Specified Make-Before-Break Switching
Low ON-State Resistance (0.9 Ω)
Control Inputs Are 5.5-V Tolerant
Low Charge Injection
Excellent ON-State Resistance Matching
Low Total Harmonic Distortion (THD)
1.65-V to 5.5-V Single-Supply Operation
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
