MSKSEMIDatasheet (PDF)

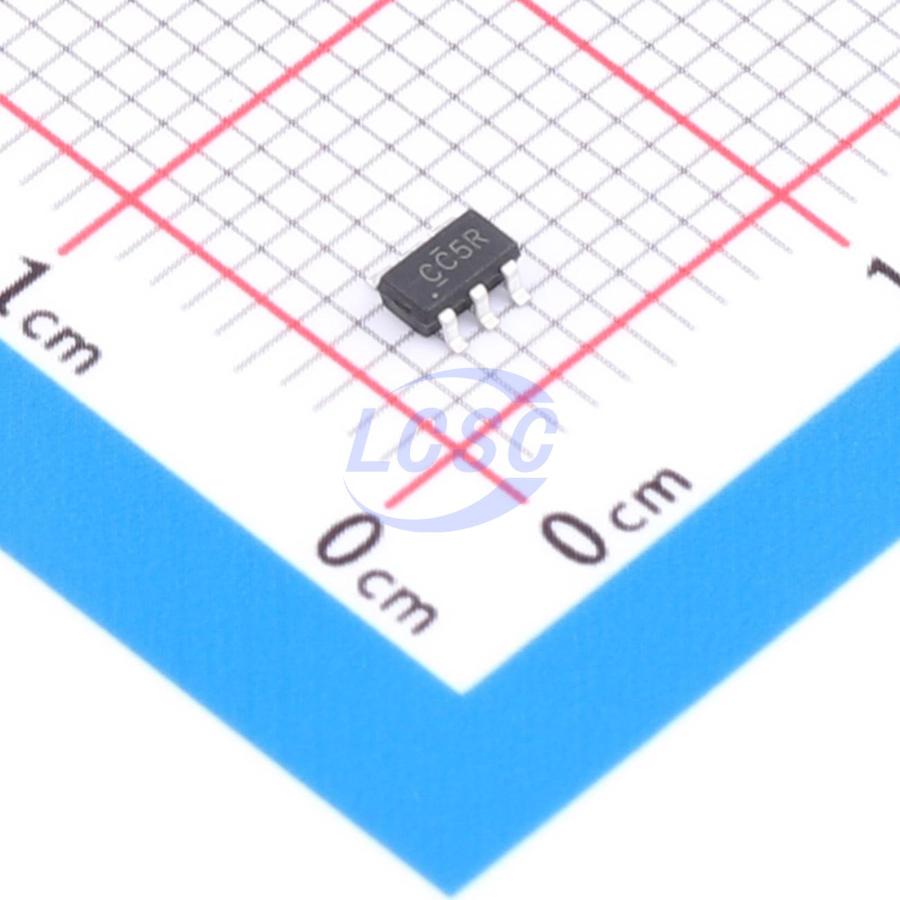

TS5A3157DBVR-MS
15Ω@4.5V 1.65V~5.5V SOT-23-6 Analog Switches, Multiplexers, Demultiplexers
SOT-23-6RoHSActive
- Manufacturer
- MSKSEMI
- Manufacturer part #
- TS5A3157DBVR-MS
- Store part #
- C50385406
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,985 in stock
#C50385406
Stock & price checked 26 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.01 | ₹120.05 |
| 50+ | ₹21.05 | ₹1,052.50 |
| 150+ | ₹19.78 | ₹2,967.00 |
| 500+ | ₹18.20 | ₹9,100.00 |
| 3,000+ | ₹17.50 | ₹52,500.00 |
| 6,000+ | ₹17.08 | ₹1,02,480.00 |
5 × ₹24.01
₹120.05
excl. GST
₹141.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A3157DBVR-MS
₹120.05 for 5 + GST
Specifications
- Features
- Fault protection;Glitch-free switching
- Operating Temperature
- -55℃~+125℃
- Ron
- 15Ω@4.5V
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 300ps
- Con
- 15.5pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.047 g
Overview
TS5A3157DBVR-MS is an advanced CMOS analog switch fabricated using silicon-gate CMOS technology. It achieves extremely low propagation delay while maintaining CMOS low power consumption. Analog and digital voltages can vary across the full supply voltage range (from VCC to GND). The select pin features overvoltage protection, allowing voltages up to 7.0V above VCC on this pin regardless of the operating voltage, without damaging the device or interrupting its operation.
Key features
- Low power consumption
- High speed
- Standard CMOS logic levels
- High bandwidth with improved linearity
- Switchable standard NTSC/PAL video, audio, SPDIF, and HDTV signals
- Suitable for clock switching, data multiplexing, etc.
- Low on-resistance
- Break-before-make circuit to prevent accidental short circuits
- Operating temperature range: -25℃ ~ +125℃
- Package type: SOT-23-6
