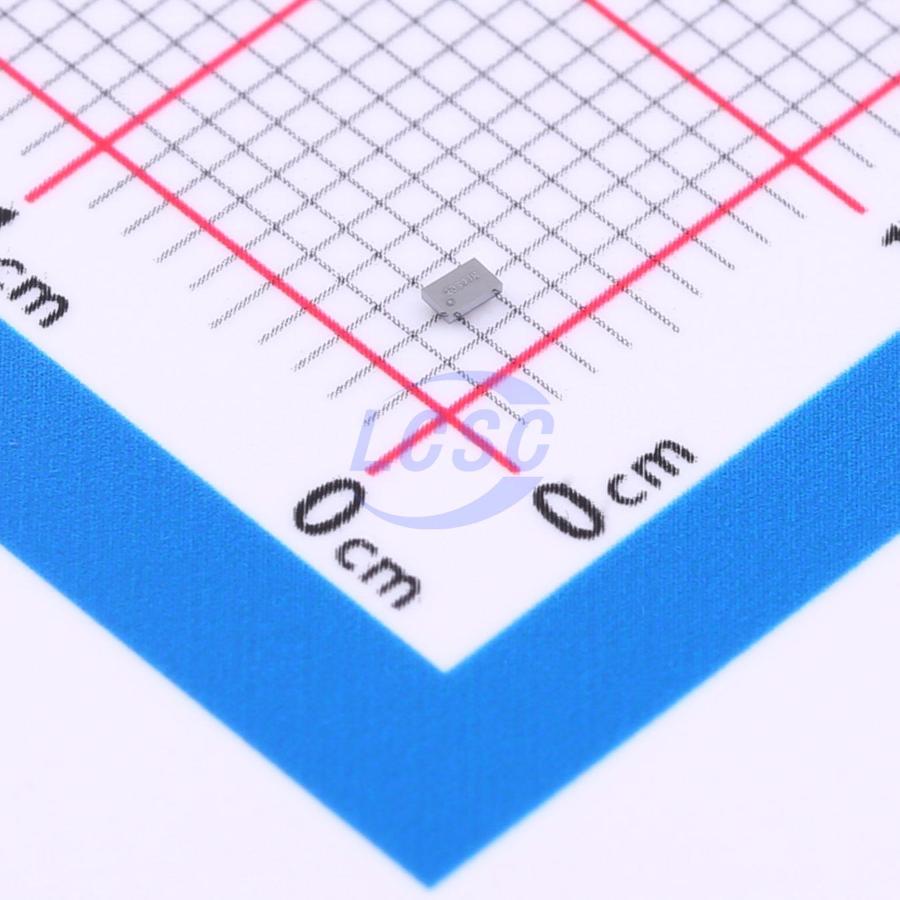

TS5A3159AYZPR
1 Circuit IC SWITCH 2:1 0.7Ω WCSP-6(1.4x0.9)
WCSP-6(1.4x0.9)ROHS3 CompliantActive
TS5A3159A 5V and 3.3V Single-Channel 2:1 Multiplexer and Demultiplexer
- Manufacturer
- TI
- Manufacturer part #
- TS5A3159AYZPR
- Store part #
- C2651909
- Package / case
- WCSP-6(1.4x0.9)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,144 in stock
#C2651909
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹66.79 | ₹66.79 |
| 10+ | ₹56.60 | ₹566.00 |
| 30+ | ₹49.23 | ₹1,476.90 |
| 100+ | ₹43.37 | ₹4,337.00 |
| 500+ | ₹41.42 | ₹20,710.00 |
| 1,000+ | ₹40.34 | ₹40,340.00 |
1 × ₹66.79
₹66.79
excl. GST
₹78.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A3159AYZPR
₹66.79 for 1 + GST
Specifications
- Features
- Glitch-free switching;Power-off isolation
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Ron
- 700mΩ
- Con
- 55pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.011 g
Overview
The TS5A3159A is a single-pole double-throw (SPDT) analog switch designed to operate at 1.65V to 5.5V. The device offers low on-resistance, excellent on-resistance matching, and break-before-make functionality to prevent signal distortion when switching between channels. It features outstanding total harmonic distortion (THD) performance and ultra-low power consumption. These characteristics make the device well-suited for portable audio applications.
Applications
- Mobile phones
- Personal Digital Assistants (PDAs)
- Portable instruments
- Audio and video signal routing
- Low-voltage data acquisition systems
- Communication circuits
- Modems
- Hard disk drives
- Computer peripherals, wireless terminals and peripherals
Key features
- Rated break-before-make switching isolation in power-off mode, V₊ = 0
- Terminal-compatible with TS5A3159 devices
- Low on-state resistance (1Ω)
- Control input tolerates 5.5V
- Low charge injection
- Excellent on-resistance matching
- Low total harmonic distortion (THD)
- 1.65V to 5.5V single-supply operation
- Latch-up performance exceeds 100mA, compliant with JESD 78 Class II
- ESD performance tested per JESD standards
- 2000V Human Body Model (A114-B, Class II)
- 1000V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SN74LVC1G3157YZPR#C2673189TI · WCSP-6(1.4x0.9) | TI | WCSP-6(1.4x0.9) | 240 | ₹61.16 · 240 in stock | View | |
