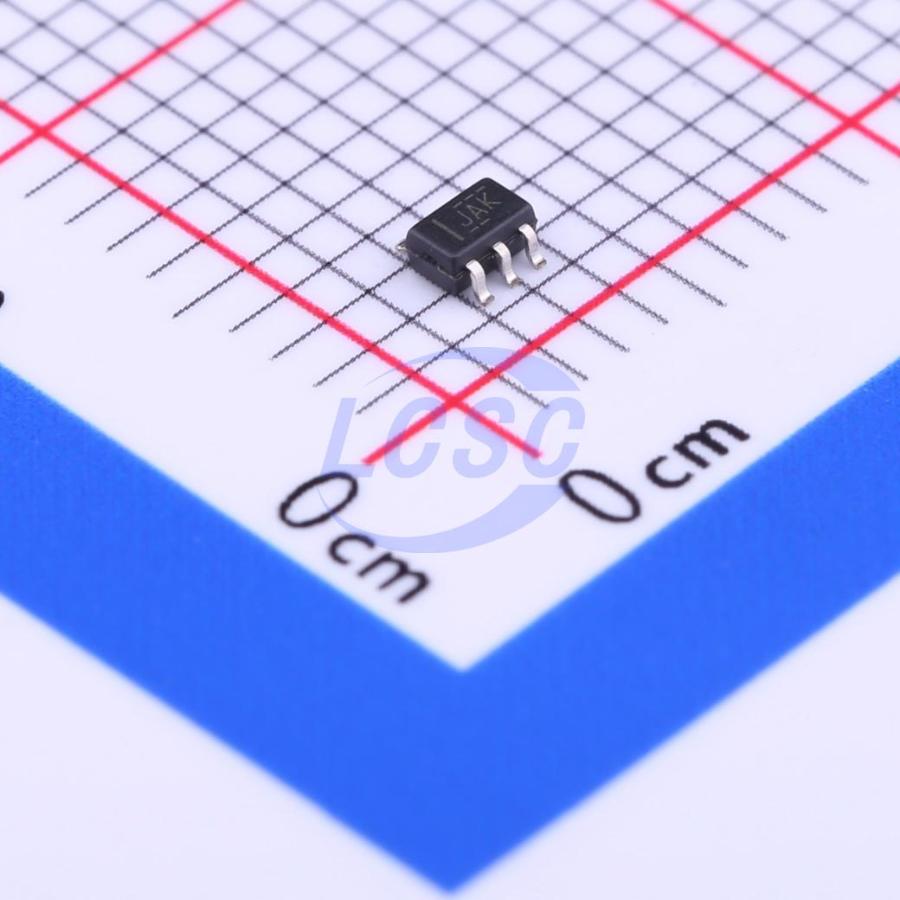

TS5A3159DCKR
1Ω 1 1.65V~5.5V SC-70-6(SOT-363) Analog Switches, Multiplexers, Demultiplexers RoHS
SC-70-6(SOT-363)ROHS3 CompliantActive
1Ω SPDT Analog Switch
- Manufacturer
- TI
- Manufacturer part #
- TS5A3159DCKR
- Store part #
- C46388
- Package / case
- SC-70-6(SOT-363)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
35,705 in stock
#C46388
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.06 | ₹250.30 |
| 50+ | ₹40.83 | ₹2,041.50 |
| 150+ | ₹36.32 | ₹5,448.00 |
| 500+ | ₹30.55 | ₹15,275.00 |
| 3,000+ | ₹29.44 | ₹88,320.00 |
| 6,000+ | ₹28.78 | ₹1,72,680.00 |
5 × ₹50.06
₹250.30
excl. GST
₹295.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS5A3159DCKR
₹250.30 for 5 + GST
Specifications
- Features
- Glitch-free switching
- Operating Temperature
- -40℃~+85℃
- Ron
- 1Ω
- Number of Channels
- 1
- Voltage - Supply
- 1.65V~5.5V
- Con
- 84pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.009 g
Overview
The TS5A3159 device is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ONstate resistance and an excellent ON-state resistance matching, with the break-before-make feature to prevent signal distortion during the transferring of a signal from one channel to another. The device has excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.
Applications
- Mobile Phones
- Consumer and Computing
- Portable Instrumentation
Key features
- Specified Break-Before-Make Switching
- Low ON-State Resistance (1 Ω)
- Control Inputs are 5-V Tolerant
- Low Charge Injection
- Excellent ON-Resistance Matching
- Low Total Harmonic Distortion
- 1.65-V to 5.5-V Single-Supply Operation
- Latch-Up Performance Exceeds 100 mA
- Per JESD 78, Class II
- ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPTS5A4624DCKR#C42449042TECH PUBLIC · SOT-363 | TECH PUBLIC | SOT-363 | 3,470 | ₹25.94 · 3,470 in stock | View |
 | DIO1159BSC6#C39290822DIOO · SC-70-6 | DIOO | SC-70-6 | 2,845 | ₹16.89 · 2,845 in stock | View |
 | RS2257XC6#C255483RUNIC · SC-70-6 | RUNIC | SC-70-6 | 14,795 | ₹20.60 · 14,795 in stock | View |
 | DIO1159SC6#C444357DIOO · SC-70-6 | DIOO | SC-70-6 | 775 | ₹13.87 · 775 in stock | View |
 | TS5A4624DCKT#C118867TI · SOT-363-6 | TI | SOT-363-6 | 2 | ₹98.23 · 2 in stock | View |
