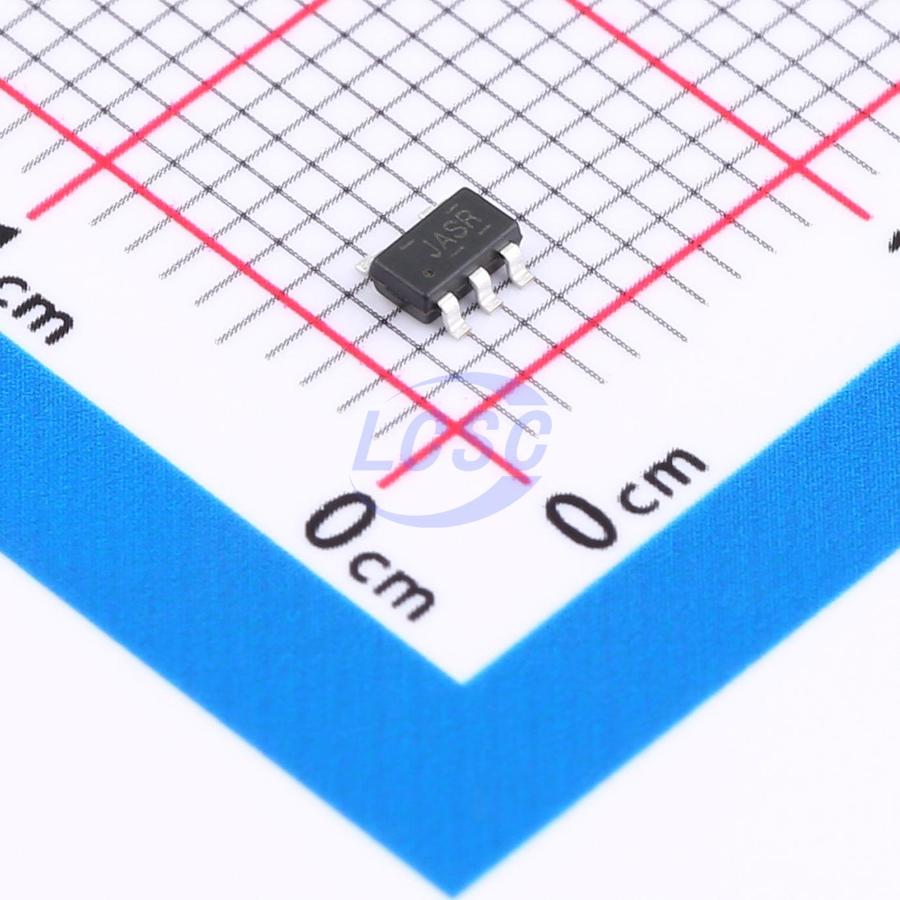

TS5A3166DBVR-TP

2Ω 1 1.6V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers

SOT-23-5RoHSActive

Single-Supply SPST Analog Switches

Manufacturer: TECH PUBLIC
Manufacturer part #: TS5A3166DBVR-TP
Store part #: C47117651
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,085 in stock

#C47117651

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.70	₹108.50
50+	₹16.95	₹847.50
150+	₹14.91	₹2,236.50
500+	₹12.37	₹6,185.00
3,000+	₹11.25	₹33,750.00
6,000+	₹10.56	₹63,360.00

Quantity (min 5, multiples of 5)

5 × ₹21.70

₹108.50

excl. GST

₹128.03 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3166DBVR-TP

₹108.50 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Ron: 2Ω
Number of Channels: 1
Voltage - Supply: 1.6V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

The is a low voltage single-pole, double-throw (SPST) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, Ron = 3.3Ω
1.8V Logic Compatible Control Pin Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-Isolation: - 100dB @ 100KHz
Low Channel-to-Channel Crosstalk: - 97dB @ 100KHz
High Bandwidth (- 3dB @400MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (<2uA)
With Very Wide Supply Range (1.5V ~ 5.5V)
