TECH PUBLIC

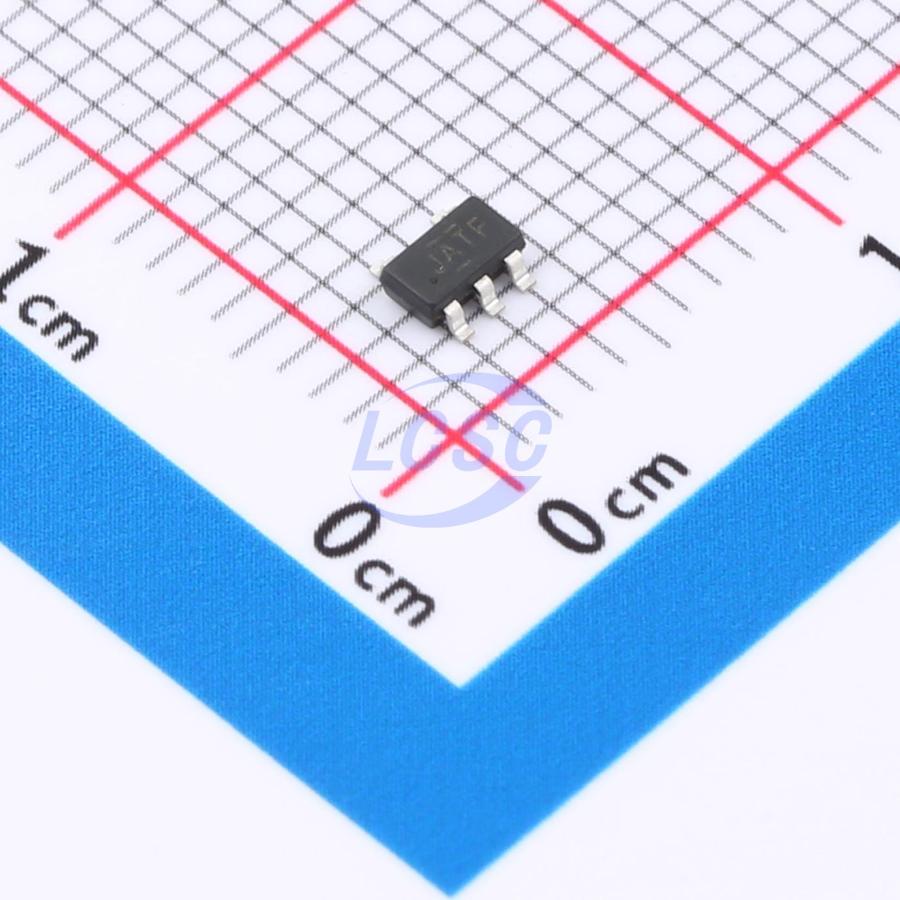

TS5A3167DBVR-TP

1 2Ω 1.6V~5.5V SOT-23-5 Analog Switches, Multiplexers, Demultiplexers

SOT-23-5RoHSActive

SINGLE-CHANNEL 2Q SPST Analog Switches

Manufacturer: TECH PUBLIC
Manufacturer part #: TS5A3167DBVR-TP
Store part #: C47117652
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,635 in stock

#C47117652

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹26.91	₹134.55
50+	₹21.05	₹1,052.50
150+	₹18.54	₹2,781.00
500+	₹15.40	₹7,700.00
3,000+	₹14.00	₹42,000.00
6,000+	₹13.16	₹78,960.00

Quantity (min 5, multiples of 5)

5 × ₹26.91

₹134.55

excl. GST

₹158.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3167DBVR-TP

₹134.55 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Ron: 2Ω
Voltage - Supply: 1.6V~5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.036 g

Overview

A low voltage single-pole, double-throw (SPDT) analog switch intending for use in chopping, modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, Ron = 2Ω
1.8V Logic Compatible Control Pin Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @400MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
