TECH PUBLIC

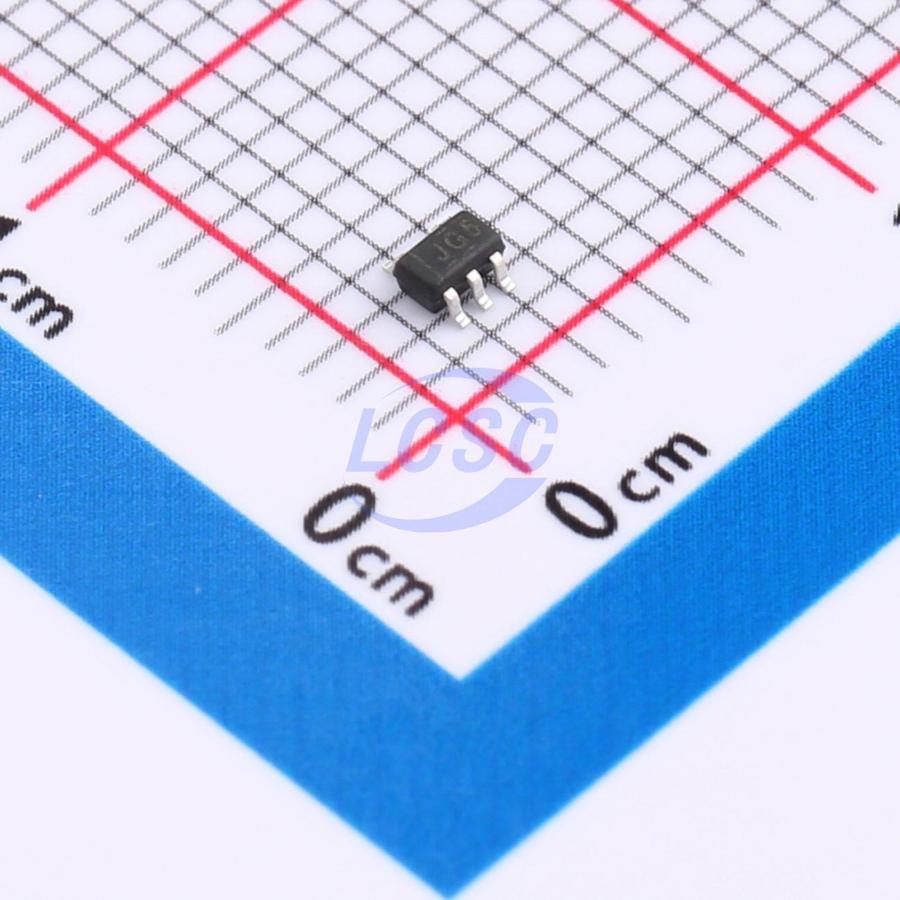

TS5A3167DCKR-TP

1 1.6V~5.5V 5.5Ω@5.5V SOT-353 Analog Switches, Multiplexers, Demultiplexers

SOT-353RoHSActive

Single-Supply SPST Analog Switches

Manufacturer: TECH PUBLIC
Manufacturer part #: TS5A3167DCKR-TP
Store part #: C46472253
Package / case: SOT-353
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,335 in stock

#C46472253

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹15.76	₹78.80
50+	₹13.76	₹688.00
150+	₹12.90	₹1,935.00
500+	₹11.83	₹5,915.00
3,000+	₹11.35	₹34,050.00
6,000+	₹11.07	₹66,420.00

Quantity (min 5, multiples of 5)

5 × ₹15.76

₹78.80

excl. GST

₹92.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A3167DCKR-TP

₹78.80 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+85℃
Number of Channels: 1
Voltage - Supply: 1.6V~5.5V
Ron: 5.5Ω@5.5V
Con: 7pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.028 g

Overview

The is a low voltage single-pole,double-throw (SPDT) analog switch intending for use in chopping,modem, signal gating, and signal multiplexing for analog-to-digital and digital -to-analog conversion systems.

Applications

Cell phones and TWS headset
Audio, Video, UART, USB2.0 Signal and Supply Routing

Key features

Low On-resistance, R0n = 2.2Ω
1.8V Logic Compatible Control Pin Overrides VCC to Achieve True Isolation Even When Supply Is Dead
High Off-lsolation: -100dB @ 100KHz
Low Channel-to-Channel Crosstalk: -97dB @ 100KHz
High Bandwidth (-3dB @400MHz)
Suitable For USB2.0 High-Speed Routing
Low Quiescent Current (< 2μA)
With Very Wide Supply Range (1.5V ~ 5.5V)
