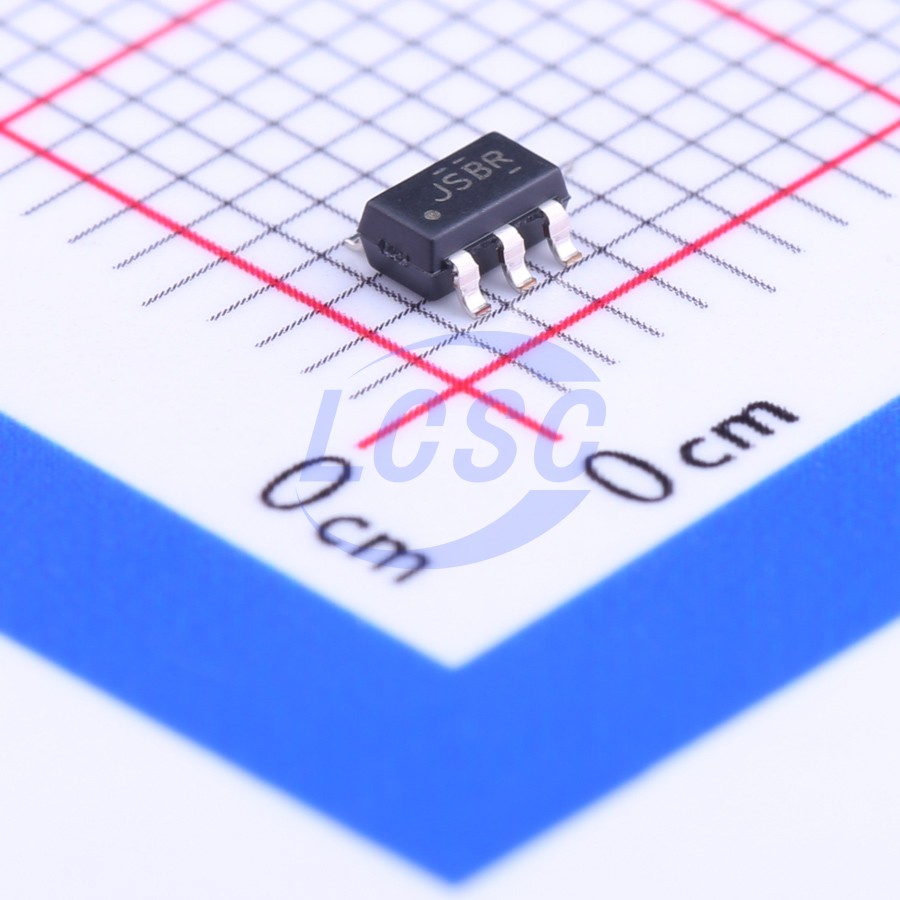

TS5A4595DBVR

8Ω 2.7V~5.5V 1 SOT-23-5 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-23-5ROHS CompliantActive

8-Q SPST Analog Switch, Single-Channel Analog Switch

Manufacturer: TI
Manufacturer part #: TS5A4595DBVR
Store part #: C133951
Package / case: SOT-23-5
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,125 in stock

#C133951

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹37.58	₹187.90
50+	₹30.76	₹1,538.00
150+	₹27.42	₹4,113.00
500+	₹24.45	₹12,225.00
3,000+	₹23.64	₹70,920.00
6,000+	₹23.16	₹1,38,960.00

Quantity (min 5, multiples of 5)

5 × ₹37.58

₹187.90

excl. GST

₹221.72 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TS5A4595DBVR

₹187.90 for 5 + GST

Specifications

Features: Bidirectional analog channel
Operating Temperature: -40℃~+85℃
Ron: 8Ω
Voltage - Supply: 2.7V~5.5V
Number of Channels: 1
Con: 13pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.033 g

Overview

The TS5A4595 is a single-pole single-throw (SPST) analog switch that is designed to operate from 2V to 5.5V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.

Applications

Sample-and-Hold Circuit
Battery-Powered Equipment (Cellular Phones, PDAs)
Audio and Video Signal Routing
Communication Circuits
PCMCIA Cards

Key features

Low ON-State Resistance (8 Ω)
ON-State Resistance Flatness (1.5 Ω)
Control Inputs Are 5.5-V Tolerant
Low Charge Injection (5 pC Max)
450-MHz −3-dB Bandwidth at 25°C
Low Total Harmonic Distortion (THD) (0.04%)
2-V to 5.5-V Single-Supply Operation
−82-dB OFF-Isolation at 1 MHz
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
0.5-nA Max OFF Leakage
ESD Performance Tested Per JESD 22
2000-V Human-Body Model (A114-B, Class II)
1000-V Charged-Device Model (C101)
TTL/CMOS-Logic Compatible
