TSM101AIDT
Series Voltage Reference IC Fixed 1.24V ±1% 10mA SOP-8
SOP-8ROHS3 CompliantActive
VOLTAGE AND CURRENT CONTROLLER, 11.24V SERIES VOLTAGE REFERENCE, TWO OPERATIONAL AMPLIFIERS, BUILT-IN CURRENT GENERATOR
- Manufacturer
- ST
- Manufacturer part #
- TSM101AIDT
- Store part #
- C2156887
- Package / case
- SOP-8
- Category
- Voltage Reference
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,503 in stock
#C2156887
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.38 | ₹63.38 |
| 10+ | ₹50.64 | ₹506.40 |
| 30+ | ₹44.35 | ₹1,330.50 |
| 100+ | ₹38.07 | ₹3,807.00 |
| 500+ | ₹34.30 | ₹17,150.00 |
| 1,000+ | ₹32.33 | ₹32,330.00 |
1 × ₹63.38
₹63.38
excl. GST
₹74.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel

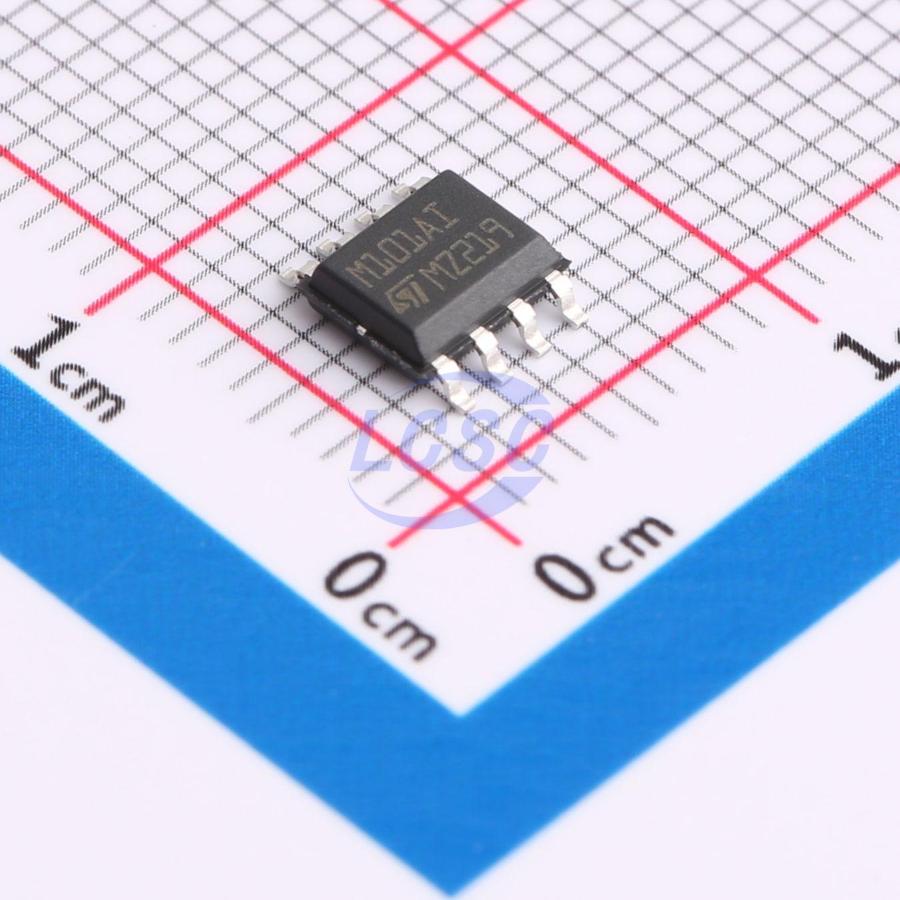

TSM101AIDT
₹63.38 for 1 + GST
Specifications
- Output Voltage
- 1.24V
- Quiescent Current
- 2mA
- Tolerance
- ±1%
- Voltage - Supply
- 4.5V~32V
- Reference Type
- Series
- Output Current
- 10mA
- Operating Temperature
- -40℃~+105℃@(Ta)
- Features
- Enable/disable
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Overview
The TSM101/TSM101A integrated circuit incorporates a high stability series band gap voltage reference, two ORed operational amplifiers and a current source. This IC compares the DC voltage and the current level at the output of a switching power supply to an internal reference. It provides a feedback through an optocoupler to the PWM controller IC in the primary side. The controlled current generator can be used to modify the level of current limitation by offsetting the information coming from the current sensing resistor.
Applications
- This circuit is designed to be used in battery chargers with a constant voltage and a limited output current.
- It can be used in every types of application requiring a precision voltage regulation and current limitation.
- Other applications include voltage supervisors, over voltage protection...
