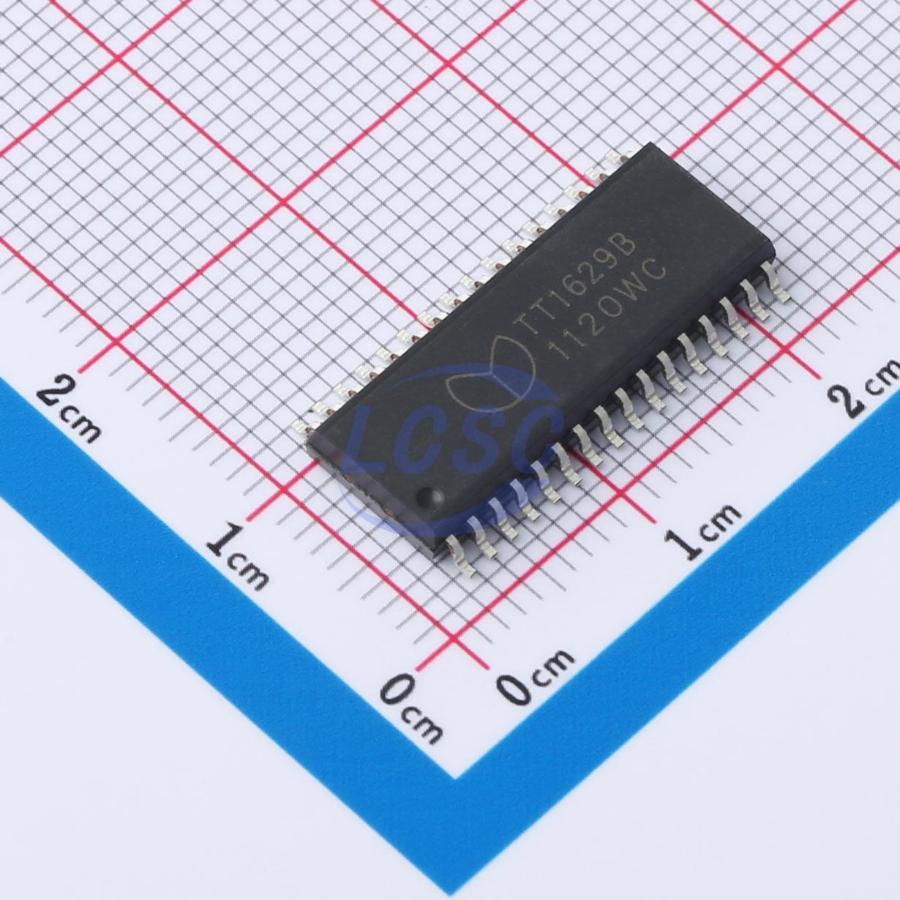

JingYang

TT1629BX

500kHz 4.5V~5.5V SOP-32 LED Drivers ICs RoHS

SOP-32ROHS CompliantActive

LED Controller Driven IC

Manufacturer: JingYang
Manufacturer part #: TT1629BX
Store part #: C6423775
Package / case: SOP-32
Category: LED Drivers ICs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,977 in stock

#C6423775

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹66.79	₹66.79
10+	₹59.42	₹594.20
40+	₹55.95	₹2,238.00
100+	₹52.26	₹5,226.00
500+	₹50.09	₹25,045.00
1,000+	₹49.00	₹49,000.00

Quantity (min 1)

1 × ₹66.79

₹66.79

excl. GST

₹78.81 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 20 per tube

TT1629BX

₹66.79 for 1 + GST

Specifications

Features: Keyboard scanning
Frequency - Switching: 500kHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -20℃~+70℃
Output Current: 50mA;200mA
Voltage - Input(DC): 4.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 20 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 1.52 g

Overview

TT1629BX is an LED Controller driven on a 1/7 to 1/8 duty factor. Fourteen-segment output lines, eight grid output lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer.
