JingYang

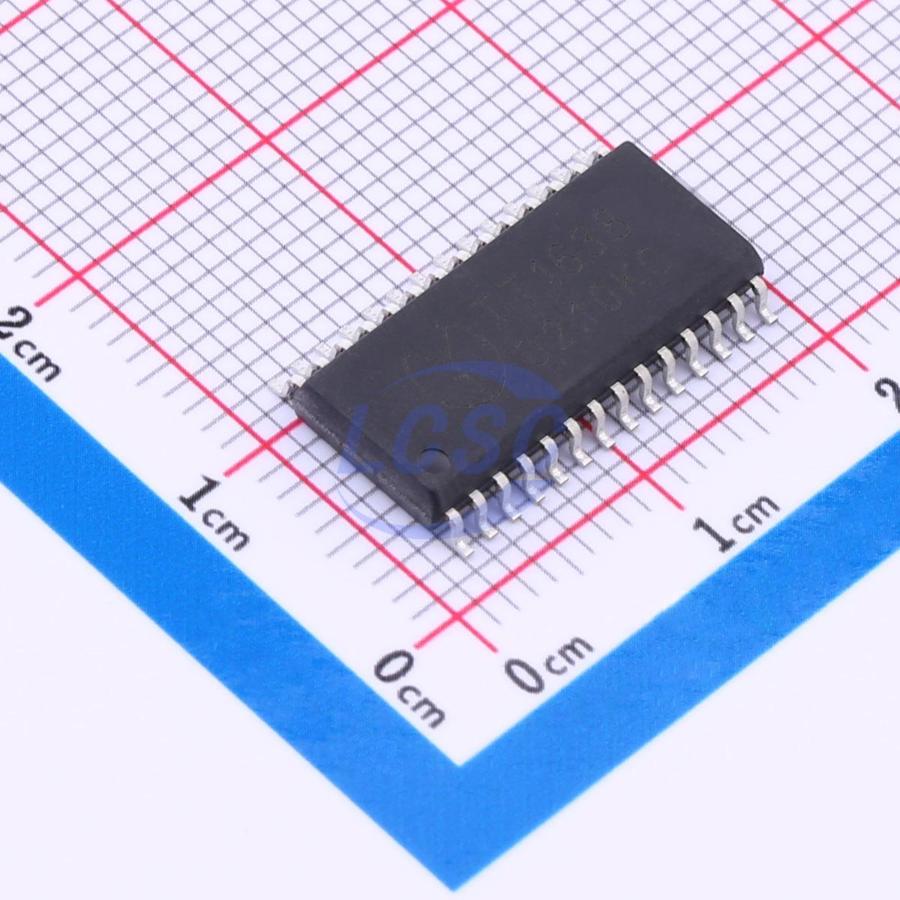

TT1638X

LED Driver IC 8 Output PWM Dimming SOP-28

SOP-28ROHS CompliantActive

IC LED DRIVER PWM SOP-28

Manufacturer: JingYang
Manufacturer part #: TT1638X
Store part #: C5364020
Package / case: SOP-28
Category: LED Drivers ICs
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,324 in stock

#C5364020

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
1+	₹52.47	₹52.47
10+	₹45.97	₹459.70
25+	₹43.37	₹1,084.25
100+	₹39.90	₹3,990.00
500+	₹38.38	₹19,190.00
1,000+	₹37.52	₹37,520.00

Quantity (min 1)

1 × ₹52.47

₹52.47

excl. GST

₹61.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 25 per tube

TT1638X

₹52.47 for 1 + GST

Specifications

Features: Keyboard scanning
Frequency - Switching: 500kHz
Operating temperature: -40℃~+80℃
Number of Channels: 8
Output Current: 140mA
Voltage - Input(DC): 4.5V~5.5V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 25 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 1.29 g

Overview

TT1638X is a dedicated LED display driver control IC with keyboard scan interface, integrating MCU digital interface, data latch, LED driver, and keyboard scan circuits. This product offers reliable quality, excellent stability, and strong anti-interference capability. Primarily designed for digital tube or LED display applications in home appliances (smart water heaters, microwave ovens, washing machines, air conditioners, induction cookers), set-top boxes, electronic scales, smart electricity meters, and similar devices.

Applications

Home appliances (smart water heaters, microwave ovens, washing machines, air conditioners, induction cooktops)
Set-top boxes
Electronic scales
Smart meters and other digital tube or LED display devices
