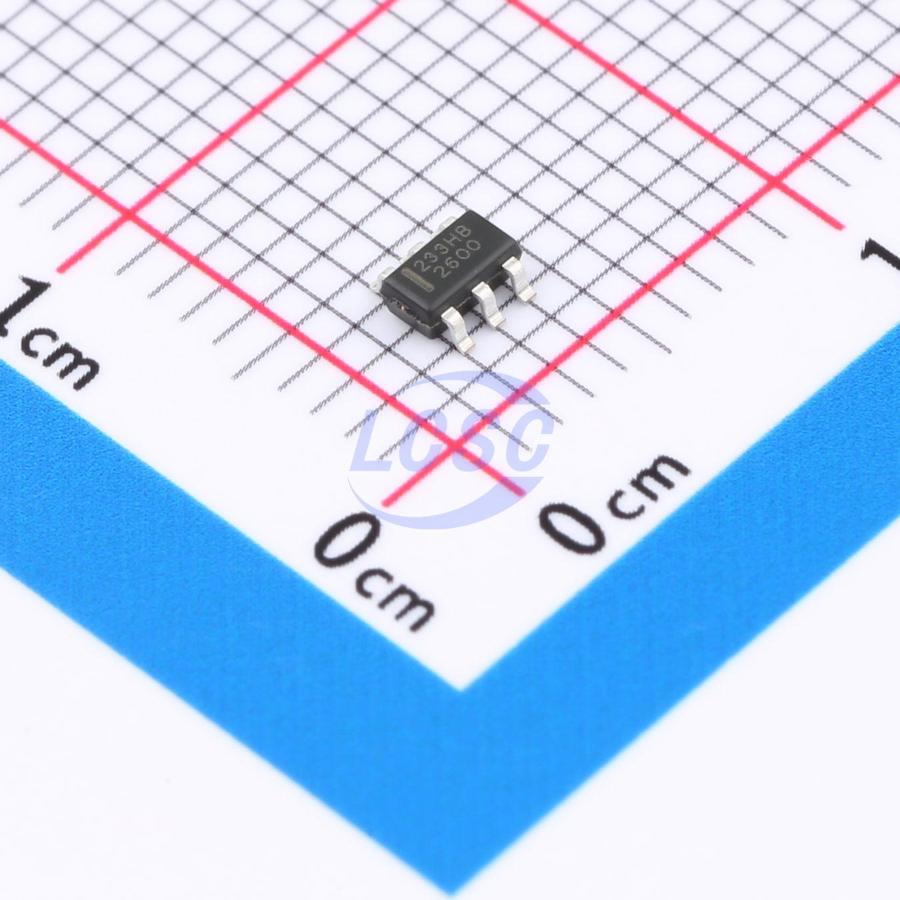

TTP233H-BA6
No SOT-23-6L Sensor, Capacitive Touch RoHS
1 key Touch Pad Detector IC
- Manufacturer
- TONTEK
- Manufacturer part #
- TTP233H-BA6
- Store part #
- C2890349
- Package / case
- SOT-23-6L
- Category
- Sensor, Capacitive Touch
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10,290 in stock
#C2890349
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.37 | ₹76.85 |
| 50+ | ₹12.28 | ₹614.00 |
| 150+ | ₹10.73 | ₹1,609.50 |
| 500+ | ₹9.58 | ₹4,790.00 |
| 3,000+ | ₹7.73 | ₹23,190.00 |
| 6,000+ | ₹7.26 | ₹43,560.00 |
5 × ₹15.37
₹76.85
excl. GST
₹90.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TTP233H-BA6
₹76.85 for 5 + GST
Specifications
- Features
- Capacitive Touch;Automatic sensitivity calibration
- ESD Protection Voltage
- 4kV
- Operating Temperature
- -40℃~+85℃
- Whether the Lock
- No
- Voltage - Supply
- 2.4V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The TTP233H-BA6 TonTouchTM is a touch pad detector IC which offers 1 touch key. The device built-in regulator for touch sensor. Stable sensing method can cover diversity conditions. The touching detection IC is designed for replacing traditional direct button key with diverse pad size. Low power consumption and wide operating voltage are the contact key features for DC or AC application.
Applications
- Wide consumer products
- Button key replacement
Key features
- Operating voltage 2.4V~5.5V
- Built-in regulator for touch sensor
- Built-in low voltage reset (LVR) function
- Operating current, <VDD=3V no load At low power mode typical 1.5uA, maximum 3uA
- The response time about 160mS at low power mode <VDD=3V
- Sensitivity can adjust by the capacitance（1~50pF）outside
- Stable touching detection of human body for replacing traditional direct switch key
- Provides Low Power mode
- Provides direct output or toggle output selection by pin option (TOG pin)
- Q pin is CMOS output can be selected active high or active low by pin option (AHLB pin)
- After power-on have about 0.5sec stable-time, during the time do not touch the key pad, and the function is disabled
- Auto calibration for life, and automatic calibration environment change
