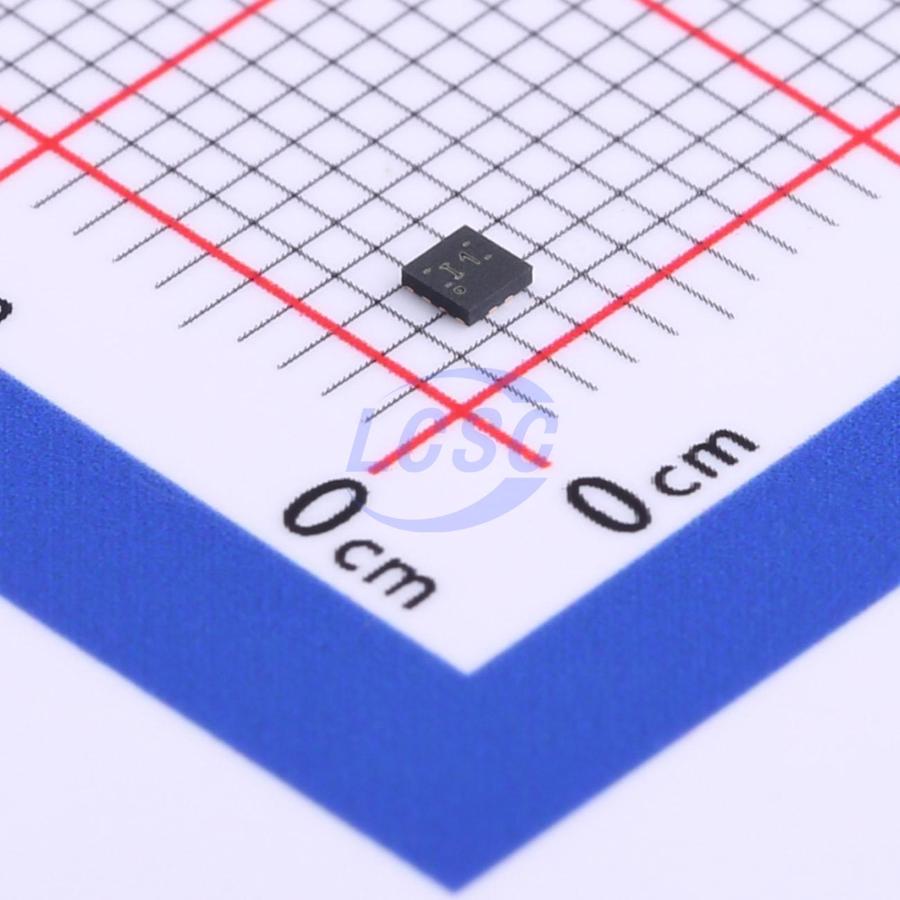

TUSB211IRWBR
USB -40℃~+85℃ 480Mbps X2QFN-12(1.6x1.6) Specialized RoHS
TUSB211 USB 2.0 High-Speed Signal Conditioner
- Manufacturer
- TI
- Manufacturer part #
- TUSB211IRWBR
- Store part #
- C575567
- Package / case
- X2QFN-12(1.6x1.6)
- Category
- Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,348 in stock
#C575567
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹305.47 | ₹305.47 |
| 10+ | ₹255.93 | ₹2,559.30 |
| 30+ | ₹224.87 | ₹6,746.10 |
| 100+ | ₹193.14 | ₹19,314.00 |
| 500+ | ₹178.80 | ₹89,400.00 |
| 1,000+ | ₹172.73 | ₹1,72,730.00 |
1 × ₹305.47
₹305.47
excl. GST
₹360.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TUSB211IRWBR
₹305.47 for 1 + GST
Specifications
- Interface
- USB
- Voltage Rating
- 3.3V
- Features
- Link equalization and compensation;Enable/shutdown function;Interrupt generation
- Operating Temperature
- -40℃~+85℃
- Data Rate
- 480Mbps
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.41 g
Overview
TUSB211 is a USB High Speed (HS) signal conditioner designed to compensate for ISI signal loss in the transmission channel. The device incorporates a patented-pending design that is transparent to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are not affected by the TUSB211. The device only compensates HS signals. It features programmable signal gain for fine-tuning device performance to optimize high-speed signals at the connector, which is beneficial for passing USB high-speed electrical compliance testing. The TUSB211 package does not disrupt the continuity of the DP/DM signal path, enabling zero-risk system design for a complete USB channel. In addition, the TUSB211 complies with USB On-The-Go (OTG) and Battery Charging (BC) specifications.
Applications
- Laptop
- Desktop
- Docking Station
- Mobile Phone Active Cables, Cable Extenders
- Backplane TV Tablet
Key features
- Compatible with USB 2.0, OTG 2.0, and BC 1.2
- Supports LS, FS, and HS signal transmission
- 55mW (typical) power consumption under 3.3V single-supply operation
- Signal gain selectable via external pull-down resistors
- No damage to DP and DM traces
- Scalable solution — daisy-chainable devices for high-loss applications
- Compact 1.6mm x 1.6mm QFN package
