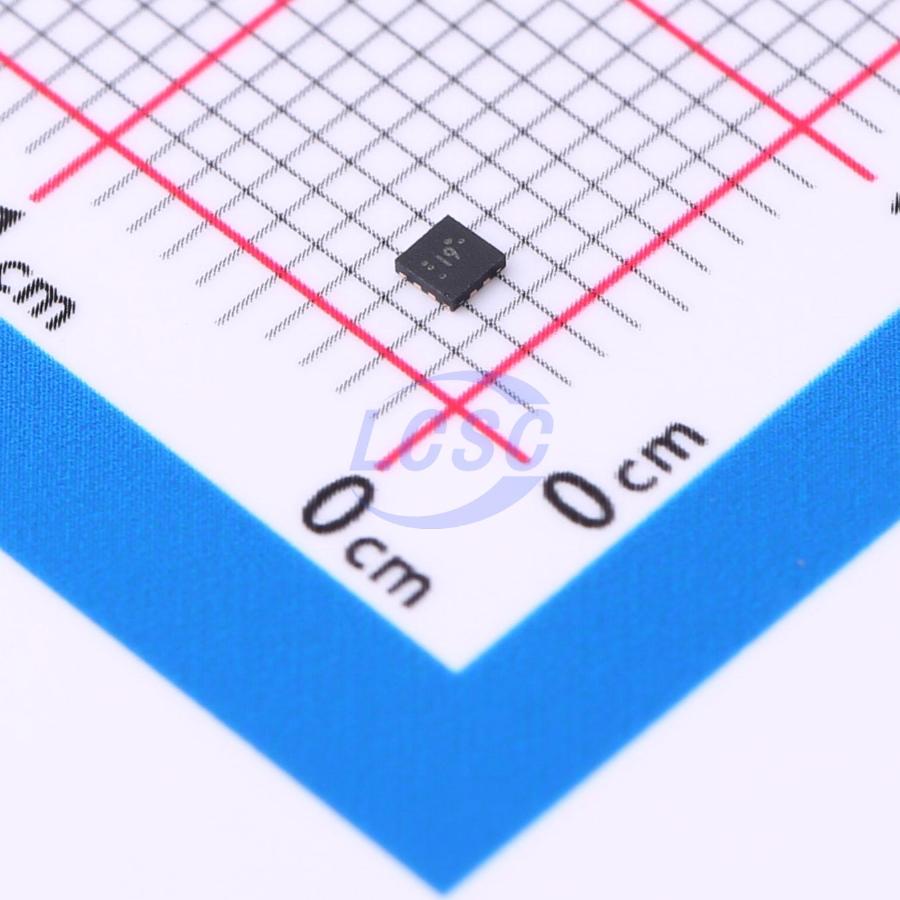

TUSB216IRWBR

The TUSB216I is a third-generation USB 2.0 high-speed signal conditioner designed to compensate for AC losses (due to capacitive loads) and DC losses (due to resistive loads) in the transmission channel. The TUSB216I features a patented design that accelerates the transmission edges of USB 2.0 high-speed signals through an edge accelerator and boosts the static level through a DC boost function. Additionally, it has a pre-emphasis function that improves the receiver's sensitivity and compensates for inter-symbol interference (ISI) jitter in long-cable applications. The characteristics of USB low-speed and full-speed signals remain unaffected. The TUSB216I enhances signal quality without altering packet timing or increasing propagation delay. The TUSB216I helps systems pass the USB 2.0 high-speed near-end eye diagram compliance test using cables up to 5 meters long. The TUSB216I is compatible with the USB On-The-Go (OTG) and Battery Charging (BC1.2) protocols. The integrated BC 1.2 battery charging controller can be enabled via a control pin.

Applications

• Laptop/Desktop/Docking Station
• Portable Electronics
• Tablet
• Mobile Phone
• TV
• Active Cables, Cable Extenders, Backplane

Key features

• Wide supply voltage range: 2.3V to 6.5V
• Ultra-low USB disconnect and shutdown power consumption
• USB 2.0 high-speed signal conditioning
• Compatible with USB 2.0, OTG 2.0, and BC 1.2
• Low-speed, full-speed, and high-speed signal transmission
• Integrated BC 1.2 CDP battery charging controller
• Host/device agnostic
• Cable support up to 5m
• Four selectable signal enhancement (edge boost vs. DC boost) settings via external pull-down resistor values
• Three selectable RX sensitivity settings via pull-up or pull-down to compensate for ISI jitter in high-loss applications
• Cable support up to 10m and two devices
• Scalable solution — devices can be daisy-chained for high-loss applications
• Pin-compatible with TUSB211/212/214 (3.3V)
