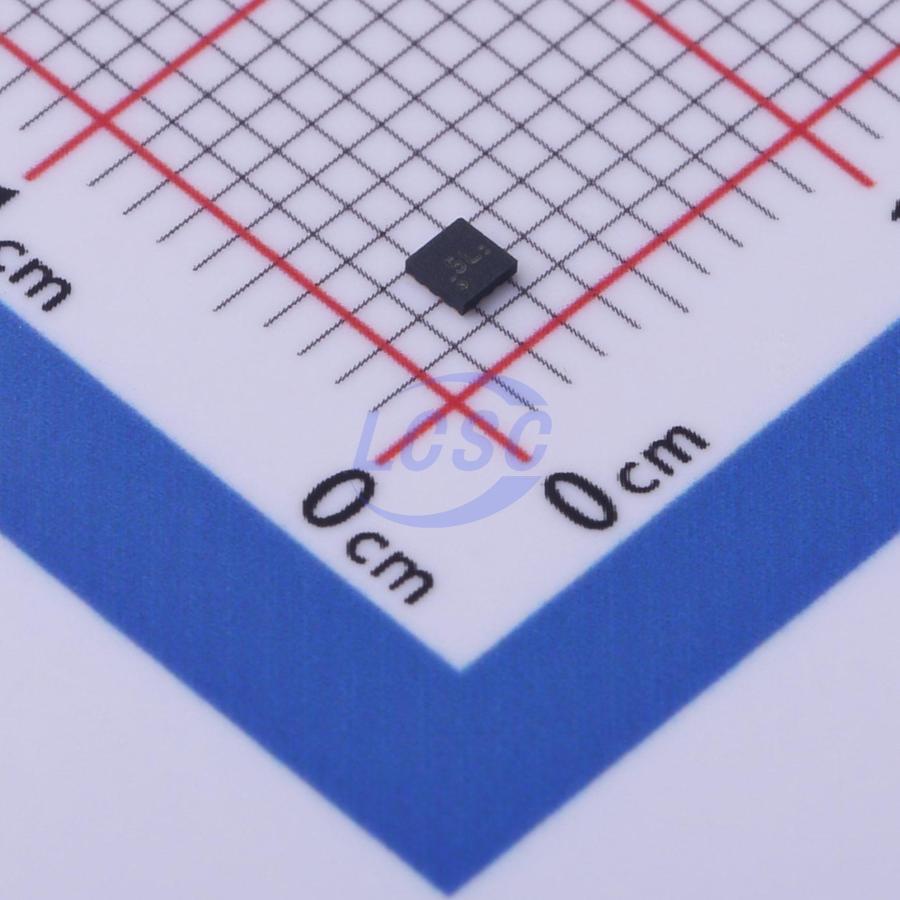

TUSB320LIRWBR
Controller USB Type-C 1.1 -40℃~+85℃ X2-QFN-12(1.6x1.6) Specialized RoHS
TUSB320LI, TUSB320HI USB Type-C Configuration Channel Logic and Port Control
- Manufacturer
- TI
- Manufacturer part #
- TUSB320LIRWBR
- Store part #
- C2836598
- Package / case
- X2-QFN-12(1.6x1.6)
- Category
- Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,008 in stock
#C2836598
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.73 | ₹104.73 |
| 10+ | ₹86.95 | ₹869.50 |
| 30+ | ₹77.85 | ₹2,335.50 |
| 100+ | ₹68.95 | ₹6,895.00 |
| 500+ | ₹58.54 | ₹29,270.00 |
| 1,000+ | ₹55.72 | ₹55,720.00 |
1 × ₹104.73
₹104.73
excl. GST
₹123.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TUSB320LIRWBR
₹104.73 for 1 + GST
Specifications
- Type
- Controller
- Voltage Rating
- 2.7V;5V
- Features
- Shutdown mode;Low-power mode
- USB Protocol
- USB Type-C 1.1
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 100uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.012 g
Overview
The TUSB320LI and TUSB320HI devices can implement the Configuration Channel (CC) logic required by the Type-C ecosystem on the USB Type-C port. The TUSB320 devices use the CC pins to determine the connection status of the port and the cable direction, as well as perform role detection and Type-C current mode control. The TUSB320 devices can be configured as a Downstream Facing Port (DFP), an Upstream Facing Port (UFP), or a Dual-Role Port (DRP), making them an ideal choice for any application. According to the Type-C specification, the TUSB320 will be alternately configured as a DFP or a UFP. The CC logic block monitors the pull-up or pull-down resistors on the CC1 and CC2 pins to determine when a USB port is connected, the direction of the cable, and the detected role. The CC logic determines whether the Type-C current mode is default, medium, or high based on the detected role. This logic determines whether the port is successfully connected in UFP and DRP modes by implementing VBUS detection. This family of devices can operate over a wide power supply range and has low power consumption. The TUSB320 is available in two enable versions: active-low enable, called TUSB320LI; and active-high enable, called TUSB320HI. The TUSB320 family of devices is suitable for the industrial temperature range.
Applications
- Host, device, and dual-role port applications
- Mobile phones
- Tablets and laptops
- USB peripherals
Key features
- USB Type-C Specification 1.1 backward compatible with USB Type-C Specification 1.0
- Current advertisement and detection up to 3A
- Host only - Downstream Facing Port (DFP) (power supplying device)
- Device only – Upstream Facing Port (UFP) (power receiving device)
- Dual Role Port – DRP
- Try.SRC and Try.SNK support
- USB port connection detection
- Cable orientation detection
- Role detection
- Type-C current mode (Default, Medium, and High) VBUS detection, I2C or GPIO control
- Role configuration control via I2C
- Supply voltage: 2.7V to 5V
- Low current consumption
- Industrial temperature range: -40°C to 85°C
