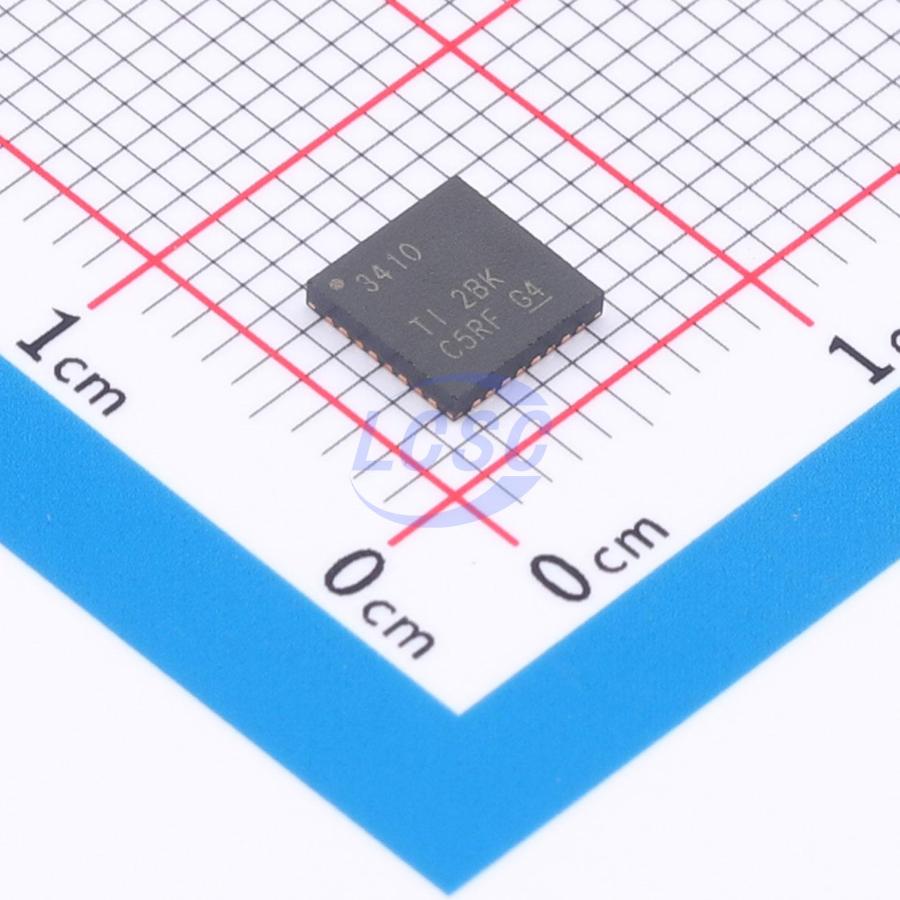

TUSB3410RHBR TI
TI

TUSB3410RHBR

8052 24MHz TQFN-32-EP(5x5) Microcontrollers RoHS

TQFN-32-EP(5x5)ROHS CompliantActive

UART, I2C, and IrDA serial port to USB bridge

Manufacturer
TI
Manufacturer part #
TUSB3410RHBR
Store part #
C2679332
Package / case
TQFN-32-EP(5x5)
Category
Microcontrollers
Packaging
Tape & Reel (TR)
Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2 in stock

#C2679332

Stock & price checked 33 h ago

QuantityUnit pricePack price
1+₹1,052.13₹1,052.13
10+₹911.76₹9,117.60
30+₹826.24₹24,787.20
100+₹754.55₹75,455.00

1 × ₹1,052.13

₹1,052.13

excl. GST

₹1,241.51 incl. 18% GST

Need volume or a scheduled delivery? Request a quote
  • Dispatch in 15-18 working days
  • GST invoice with every order
  • Standard pack: 3,000 per reel

TUSB3410RHBR

₹1,052.13 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of I/O
4
Operating Temperature
0℃~+70℃
Program Memory Type
ROM
Voltage - Supply
3V~3.6V
Program Storage Size
10KB
CPU Core
8052
CPU Maximum Speed
24MHz
Oscillator Type
External

Packaging & compliance

RoHS
ROHS Compliant
Lifecycle
Active
ECCN
EAR99
Packaging
Tape & Reel (TR)
Standard pack
3,000 / Reel
Sold per
Piece
Minimum order
1
Unit weight
0.247 g

Overview

The TUSB3410 device provides bridging between a USB port and an enhanced UART serial port. The device contains an 8052 microcontroller unit (MCU) with 16KB of RAM that can be loaded from the host or from the external onboard memory through an I²C. The device also contains 10KB of ROM that allows the MCU to configure the USB port at boot time. The ROM code also contains an I²C bootloader. All device functions (such as the USB command decoding, UART setup, and error reporting) are managed by the internal MCU firmware in unison with the PC host.

Applications

  • Modems
  • Peripherals:
  • Printers, Handheld Devices
  • Medical Meters
  • DSP and μc Interface

Key features

  • Fully Compliant With USB 2.0 Full-Speed Specifications: TID#40340262
  • Supports 12-Mbps USB Data Rate (Full Speed)
  • Supports USB Suspend, Resume, and Remote Wake-Up Operations
  • Configurable to Bus-Powered and Self-Powered Operation
  • Supports a Total of Three Input and Three Output (Interrupt, Bulk) Endpoints
  • Integrated 8052 Microcontroller With:
  • 256×8 RAM for Internal Data
  • 10K×8 ROM (With USB and I²C Bootloader)
  • 16K×8 RAM for Code Space Loadable From Host or I²C Port
  • 2K×8 Shared RAM Used for Data Buffers and Endpoint Descriptor Blocks (EDBs)
  • Master I²C Controller for EEPROM Device Access
  • MCU Operates at 24 MHz, Providing 2-MIPS Operation
  • 128-ms Watchdog Timer
  • Enhanced UART Features:
  • Software and Hardware Flow Control
  • Automatic RS-485 Bus Transceiver Control, With and Without Echo
  • Selectable IrDA Mode for Up to 115.2-kbps Transfer
  • Software-Selectable Baud Rate From 50 BPS to 921.6 kbps
  • Programmable Serial-Interface Characteristics
  • 5-, 6-, 7-, or 8-Bit Characters
  • Even, Odd, or No Parity-bit Generation and Detection
  • 1-, 1.5-, or 2-Stop Bit Generation
  • Line Break Generation and Detection
  • Internal Test and Loopback Capabilities
  • Modem Control Functions (CTS, RTS, DSR, RI and DCD)
  • Internal Diagnostic Capability
  • Loopback Control for Communications Link-Fault Isolation
  • Break, Parity, Overrun, Framing-Error Simulation
