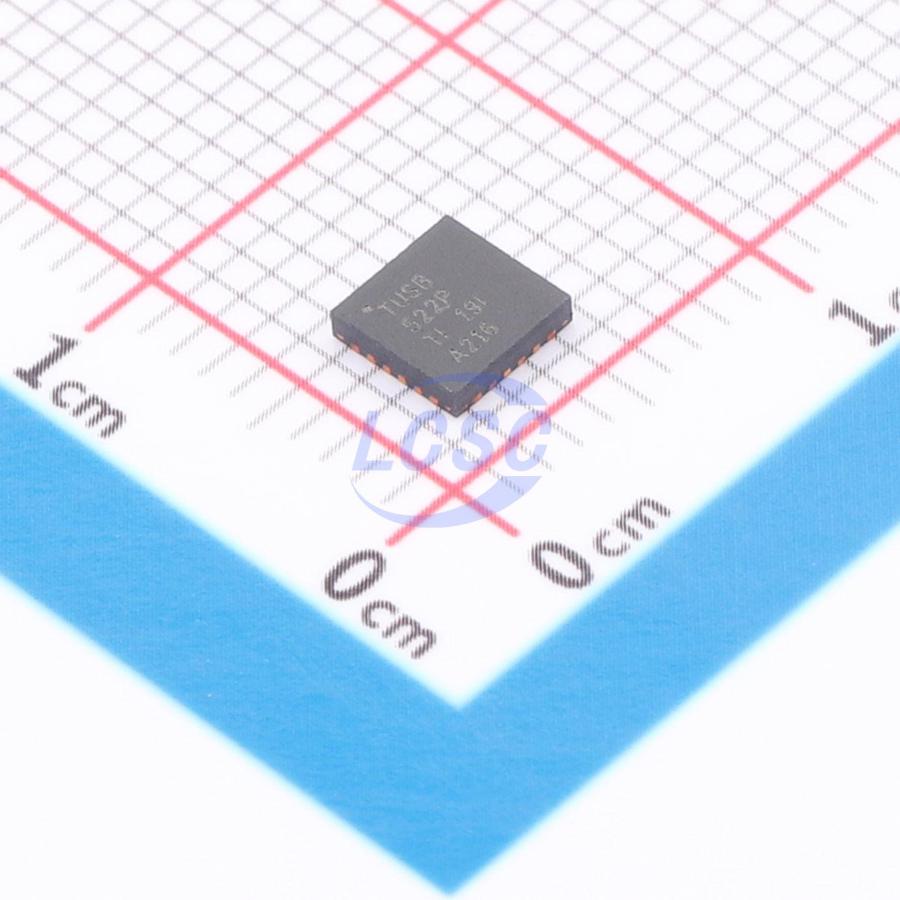

TUSB522PIRGER

The TUSB522P is a 4th-generation dual simplex channel USB 3.1 GEN 1 redriver and signal conditioner supporting 5 Gbps data transfer rates. The device features an ultra-low power architecture with very low power consumption when operating from a 3.3V supply. The redriver also supports USB 3.1 low-power modes to further reduce power consumption in idle states. The dual-channel capability enables the system to maintain signal integrity across both transmit and receive data paths. Receiver equalization offers three gain settings to overcome channel degradation caused by insertion loss and inter-symbol interference (ISI). These settings are controlled via the EQ pin. To compensate for transmission line losses, the output driver also supports de-emphasis configuration using the DE pin. Additionally, automatic LFPS de-emphasis control helps achieve full USB 3.1 compliance. These settings enable the TUSB522P in USB 3.1 Gen 1 paths to achieve optimal performance while extending signal reach and enabling flexible placement.

Applications

• Mobile phones
• Tablets
• Laptops
• Desktop PCs
• Docking stations
• Backplanes and active cables

Key features

• USB3.1 GEN 1 5Gbps dual-channel redriver, powered by 3.3V supply
• Ultra-low power architecture: U2: 98mA, U3: 1.2mA, Disconnect: 265μA, Shutdown: 60μA
• Excellent receiver equalization
• Three gain settings: 3dB, 6dB, and 9dB (at 2.5GHz)
• Output driver de-emphasis with three selectable configurations: 0dB, 3.5dB, and 6dB
• Automatic LFPS de-emphasis control for USB3.1 compliance
• Hot-plug support with no host/device-side requirements
