TECH PUBLICDatasheet (PDF)

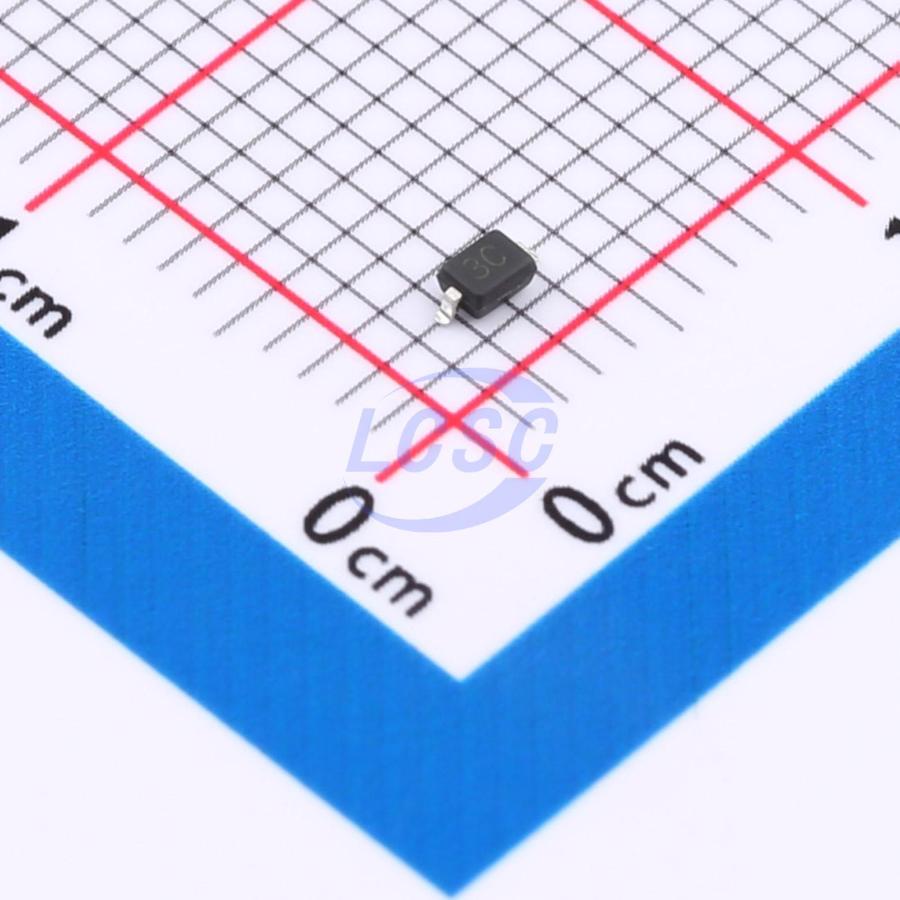

TUSD03FBXL
nan
SOD-323ROHS CompliantActive
3.3VWM 10VC SOD-323
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TUSD03FBXL
- Store part #
- C28642314
- Package / case
- SOD-323
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,540 in stock
#C28642314
Stock & price checked 16 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹5.24 | ₹104.80 |
| 200+ | ₹4.17 | ₹834.00 |
| 600+ | ₹3.56 | ₹2,136.00 |
| 3,000+ | ₹2.94 | ₹8,820.00 |
| 9,000+ | ₹2.63 | ₹23,670.00 |
| 21,000+ | ₹2.46 | ₹51,660.00 |
20 × ₹5.24
₹104.80
excl. GST
₹123.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TUSD03FBXL
₹104.80 for 20 + GST
Specifications
- Clamping Voltage
- 5.5V;7.5V
- Peak Pulse Current (Ipp)
- 8A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 72W@8/20us
- Voltage - Breakdown
- 5V
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 3.3V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.026 g
Overview
Applications
- Cellular Handsets and Accessories
- Personal Digital Assistants
- Notebooks and Handhelds
- Portable Instrumentation
- USB 2.0 power and data line
Key features
- Low operating voltage: 3.3V
- Ultra low capacitance: 0.4pF (Typ)
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning) 8A (8/20μs)
- 2-pin leadless package
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
