TWGMCDatasheet (PDF)

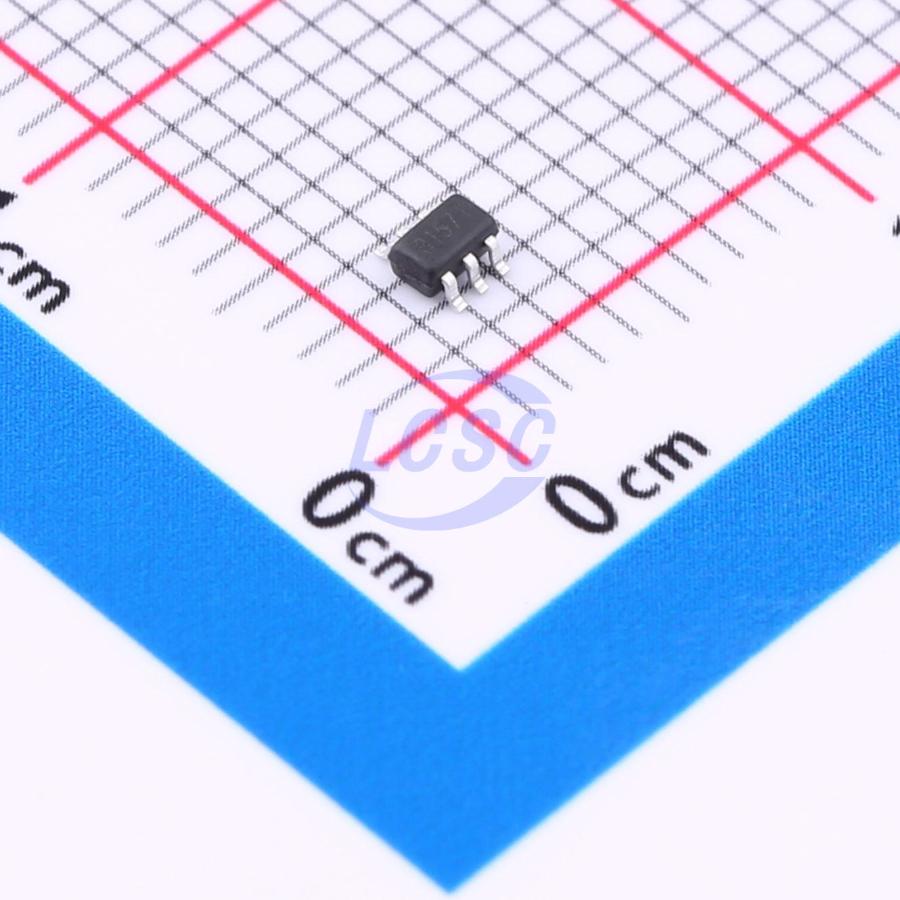

TW3157
IC SWITCH 2:1 3Ω SC-70-6
SC-70-6ROHS CompliantActive
One-of-two analog switch circuit
- Manufacturer
- TWGMC
- Manufacturer part #
- TW3157
- Store part #
- C42417401
- Package / case
- SC-70-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,840 in stock
#C42417401
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.77 | ₹87.70 |
| 100+ | ₹6.93 | ₹693.00 |
| 300+ | ₹6.02 | ₹1,806.00 |
| 3,000+ | ₹5.33 | ₹15,990.00 |
| 6,000+ | ₹4.78 | ₹28,680.00 |
| 9,000+ | ₹4.50 | ₹40,500.00 |
10 × ₹8.77
₹87.70
excl. GST
₹103.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TW3157
₹87.70 for 10 + GST
Specifications
- Features
- Fault protection
- Operating Temperature
- -55℃~+125℃
- Number of Channels
- 1
- Ron
- 3Ω
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 1.2ns
- Con
- 15.5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
TW3157 is a CMOS-based analog switch featuring low power consumption, low propagation delay, and low output impedance. The voltage output range for both analog and digital signals spans from VCC to GND. The Select input incorporates overvoltage protection, allowing input voltages to exceed VCC up to 7V without damaging the pin.
Applications
- Suitable for NTSC/PAL video, audio, SPDIF, and HDTV switching
- Suitable for clock switching and data selection switching
Key features
- Low power consumption
- High transmission speed
- Standard CMOS logic level translation
- High bandwidth, high linearity
- Low output impedance
- Break-before-make protection against short circuit
- Operating temperature: -55℃ ~ +125℃
- Package: SC70-6
