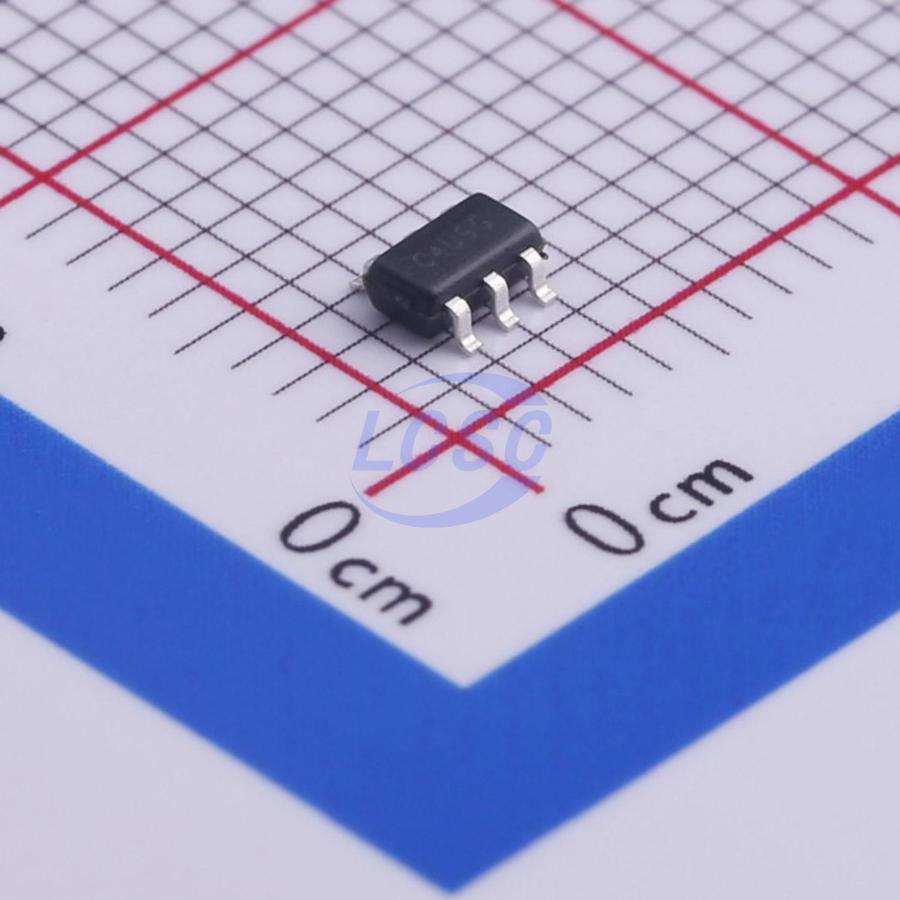

TX4120x
Buck Switching Regulator IC Adjustable 1 Output 1.5A SOT-23-6
SOT-23-6ROHS CompliantActive
High Efficiency Synchronous Buck Switching Regulator
- Manufacturer
- XDS
- Manufacturer part #
- TX4120x
- Store part #
- C448643
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,625 in stock
#C448643
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.86 | ₹179.30 |
| 50+ | ₹28.41 | ₹1,420.50 |
| 150+ | ₹25.22 | ₹3,783.00 |
| 500+ | ₹21.24 | ₹10,620.00 |
| 3,000+ | ₹18.28 | ₹54,840.00 |
| 6,000+ | ₹17.22 | ₹1,03,320.00 |
5 × ₹35.86
₹179.30
excl. GST
₹211.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TX4120x
₹179.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Light load efficient mode;Cable compensation;Built-in LDO regulator;Overcurrent Protection;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~36V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 1.5A
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.022 g
Overview
TX4120X is a high-efficiency synchronous step-down switching regulator with two integrated power MOSFETs: high-side 36V/250mΩ and low-side 36V/140mΩ. It delivers 1.5A continuous load current with a wide input voltage range of 4.5V–36V; when controlled via the EN pin, the input voltage can be as high as 27V. The input voltage protection threshold is 33V, with input overvoltage protection to prevent the device from operating under high-voltage and high-current conditions. Peak current control provides fast transient response and cycle-by-cycle current limiting. It features voltage feed-forward compensation, adjustable current control, and CC/CV mode control for stable constant-current and constant-voltage charging. Built-in features include soft-start, input undervoltage lockout (UVLO), output overvoltage protection, output short-circuit protection, and pulse-skipping mode at light load to improve light-load efficiency. The device operates stably with low-ESR ceramic output capacitors. Available in a SOT23-6 package with multiple options for various applications.
Applications
- Network systems
- Consumer electronics
- Chargers
- Portable charging devices
- General USB charger DC-DC conversion
Key features
- Wide input voltage 4.5V - 36V
- Input overvoltage protection
- 1.5A adjustable current output
- Efficiency: up to 97%
- Control mode: constant current, constant voltage
- Fixed frequency: 150kHz
- Line compensation function
- Overtemperature protection
- Adjustable startup time
