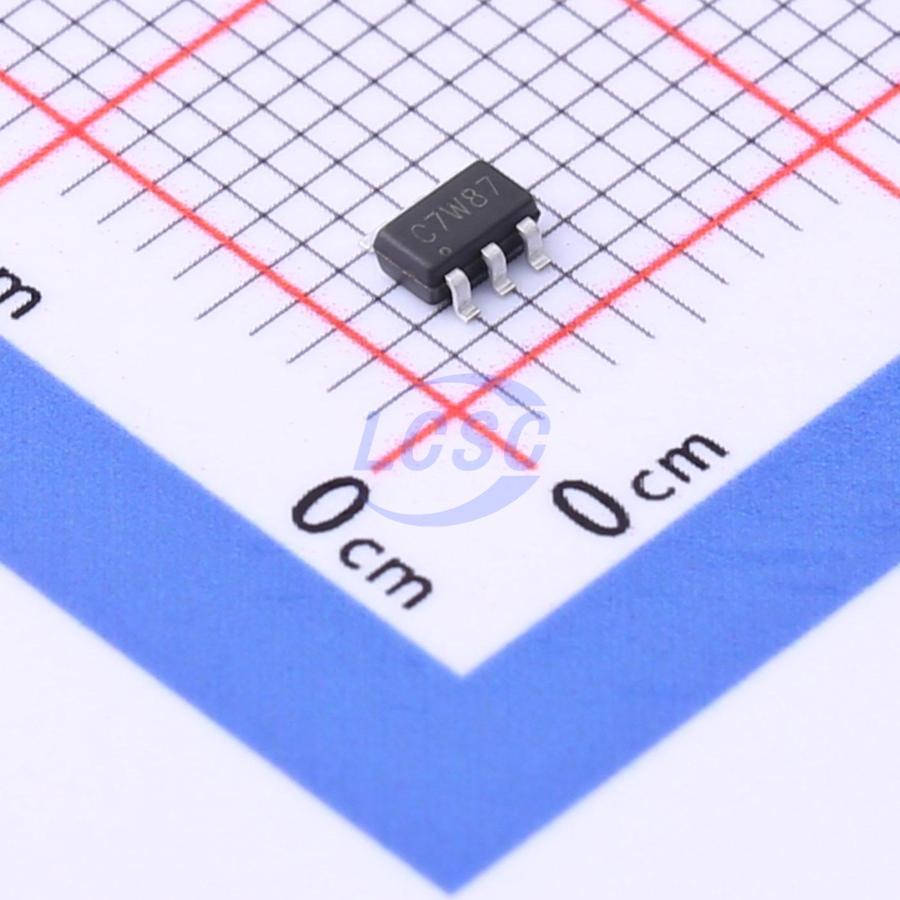

XDS

TX4120XH

Buck Switching Regulator IC Adjustable 1 Output 1A SOT-23-6

SOT-23-6ROHS CompliantActive

36V, 1A Monolithic Buck Switching Regulator

Manufacturer: XDS
Manufacturer part #: TX4120XH
Store part #: C2923805
Package / case: SOT-23-6
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,115 in stock

#C2923805

Stock & price checked 18 h ago

Quantity	Unit price	Pack price
5+	₹40.93	₹204.65
50+	₹32.18	₹1,609.00
150+	₹28.43	₹4,264.50
500+	₹23.75	₹11,875.00
3,000+	₹20.70	₹62,100.00
6,000+	₹19.45	₹1,16,700.00

Quantity (min 5, multiples of 5)

5 × ₹40.93

₹204.65

excl. GST

₹241.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TX4120XH

₹204.65 for 5 + GST

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 500kHz
Function: Step-down type
Number of Outputs: 1
Features: Adjustable current limiting;Cycle-by-cycle current limiting;Light load efficient mode;Cable compensation;Built-in LDO regulator;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 4.5V~36V
Switch tube (built-in/external): Built-in
Output Current: 1A
Output Voltage: 500mV~29.4V
Quiescent Current: 1mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.037 g

Overview

4120xH is a monolithic 36V, 1A step-down switching regulator. The 4120xH integrates a 36V, 150mΩ high-side and a 36V, 100mΩ low-side MOSFET, delivering 1A continuous load current over a wide 4.5V to 36V input voltage range, with 33V input overvoltage protection. Peak current mode control provides fast transient response and cycle-by-cycle current limiting. The 4120xH features configurable line drop compensation and configurable charge current limiting. CC/CV mode control enables smooth transitions between constant-current and constant-voltage charging phases. Built-in soft-start prevents inrush current at power-up. The 4120xH is an easy-to-use synchronous buck DC-DC converter operating from a 4.5V to 36V supply voltage. It delivers up to 1A continuous load current in a very compact solution size with high efficiency and thermal performance. The 4120xH also integrates input overvoltage and output overvoltage protection, helping customers easily design safe DC-DC converters. The switching frequency is fixed at 500kHz to minimize inductor size and improve EMI performance.

Applications

USB car charger
Portable charging device
General-purpose DC-DC conversion

Key features

1A continuous output current capability
4.5V to 36V wide operating input range, 33V input overvoltage protection
Integrated 36V, 150mΩ high-side and 36V, 100mΩ low-side power MOSFET switches
Up to 93.5% efficiency
Internal soft-start to limit inrush current at turn-on
Internal compensation to reduce external component count
Input undervoltage lockout
Input overvoltage protection against operation under high-voltage, high-current conditions
Output overvoltage protection
Output short-circuit protection with high-side and low-side current limiting for device protection under hard short-circuit conditions
Overtemperature protection
Pulse-skip mode at light load for improved light-load efficiency
Stable low-ESR ceramic output capacitor
Fixed 500kHz switching frequency
Minimal external components with comprehensive internal protection features
Available in SOT23-6 package
