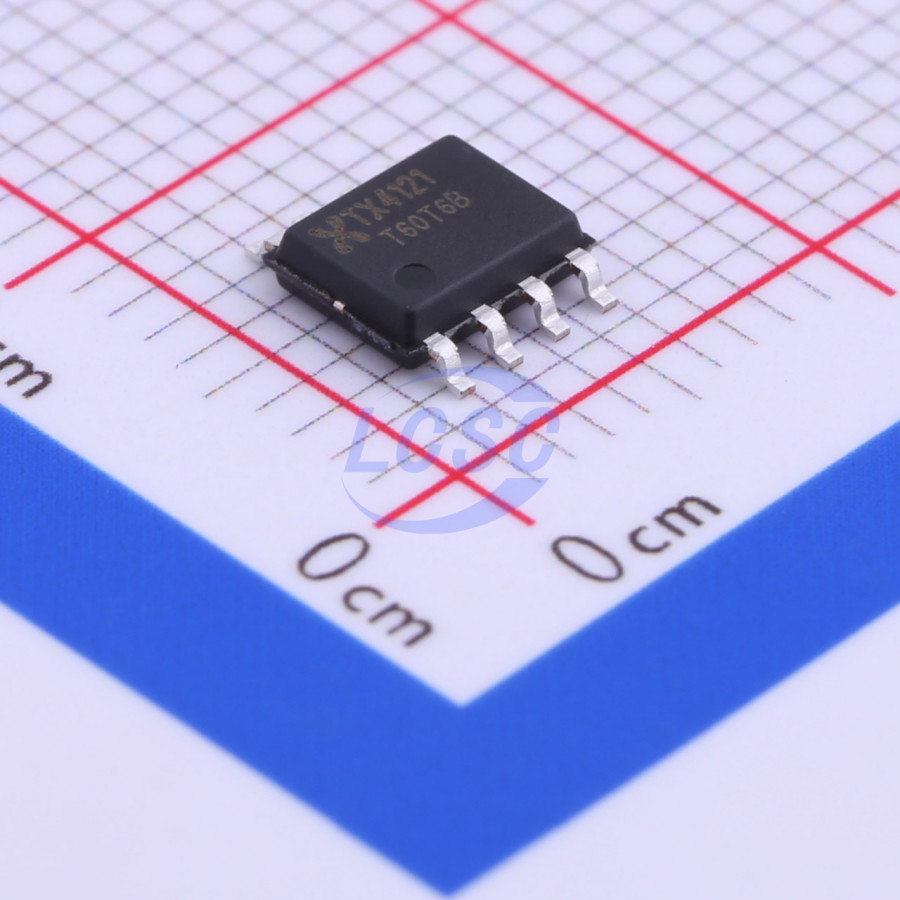

XDS

TX4121

Buck Switching Regulator IC Adjustable 1 Output 3.1A ESOP-8

ESOP-8ROHS CompliantActive

3.1A Synchronous Buck DC-DC Converter

Manufacturer: XDS
Manufacturer part #: TX4121
Store part #: C329268
Package / case: ESOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

14,255 in stock

#C329268

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
1+	₹62.66	₹62.66
10+	₹49.60	₹496.00
30+	₹43.95	₹1,318.50
100+	₹36.99	₹3,699.00
500+	₹31.98	₹15,990.00
1,000+	₹30.02	₹30,020.00

Quantity (min 1)

1 × ₹62.66

₹62.66

excl. GST

₹73.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TX4121

₹62.66 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 300kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Adjustable soft-start;Hiccup current limiting;Overcurrent Protection;Light load efficient mode;Built-in LDO regulator
Output Type: Adjustable
Topology: Buck
Operating Voltage: 6.5V~36V
Switch tube (built-in/external): Built-in
Output Current: 3.1A
Quiescent Current: 1mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.161 g

Overview

TX4121 is a synchronous rectification step-down DC-DC converter. The IC integrates a 36V/79mΩ high-side MOSFET and a 36V/62mΩ low-side MOSFET, with a wide input operating voltage range of 6.5V to 36V, capable of delivering 3.1A continuous load current output and featuring 33V input overvoltage protection. Peak current mode control provides fast transient response and cycle-by-cycle current limiting. Programmable soft-start prevents inrush current at power-up. Stable operation is achieved with low-ESR ceramic output capacitors. Input UVLO and input overvoltage protection prevent device operation at high input voltages. Output overvoltage protection, output short-circuit protection, and both high-side and low-side current limiting safeguard the device. The IC is available in an ESOP8 package.
