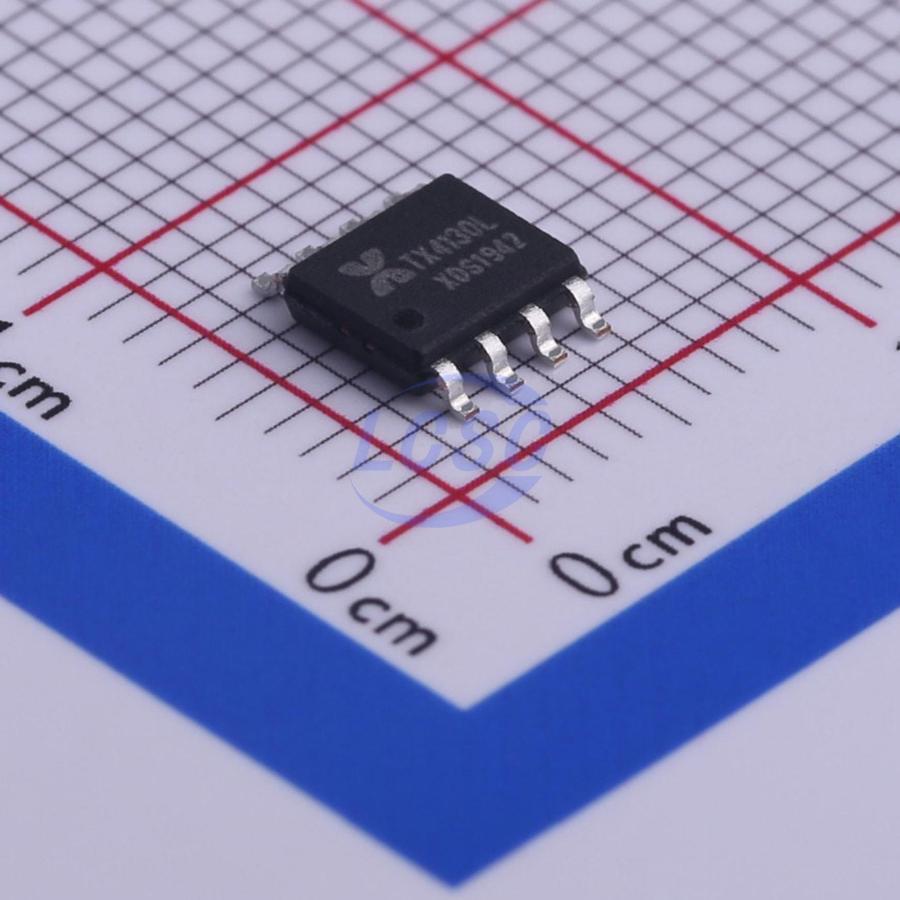

TX4130L
Buck Switching Regulator IC Adjustable 5V~30V 1 Output 2A SOP-8-EP
SOP-8-EPROHS CompliantActive
Built-in MOS Switching Buck Synchronous Rectifier DC-DC Converter
- Manufacturer
- XDS
- Manufacturer part #
- TX4130L
- Store part #
- C448635
- Package / case
- SOP-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,417 in stock
#C448635
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹75.62 | ₹75.62 |
| 10+ | ₹61.51 | ₹615.10 |
| 30+ | ₹54.55 | ₹1,636.50 |
| 100+ | ₹47.59 | ₹4,759.00 |
| 500+ | ₹39.77 | ₹19,885.00 |
| 1,000+ | ₹37.60 | ₹37,600.00 |
1 × ₹75.62
₹75.62
excl. GST
₹89.23 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TX4130L
₹75.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 140kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Light load efficient mode;Built-in LDO regulator;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 8V~90V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Output Voltage
- 5V~30V
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
TX4130L is a wide-input-voltage buck DC-DC converter with a maximum input voltage of 90V. The device features low standby power consumption, low ripple, high efficiency, excellent line regulation, and load regulation, with an output current of up to 2A. It supports both constant voltage (CV) and constant current (CC) output modes. The device adopts a fixed-frequency PWM control scheme with a typical switching frequency of 140KHz. At light load, the switching frequency is automatically reduced to achieve high conversion efficiency. Integrated protection features include soft-start, over-temperature protection, output short-circuit protection, and current limiting, enhancing system reliability. The device is available in an ESOP8 package with an exposed thermal pad internally connected to the VIN pin.
Applications
- Network systems
- Medical devices
- Consumer electronics
- Tracking sources
- Constant voltage sources
- Green electric vehicles
Key features
- Input voltage: 8 - 90V
- Adjustable output voltage: 5 - 30V
- Adjustable output current: up to 2A
- Fixed operating frequency: 140kHz
- Conversion efficiency: up to 96%
- Built-in MOSFET: 100V/5A
- Chip over-temperature protection
- Output short-circuit protection
- Bottom-mounted heatsink
