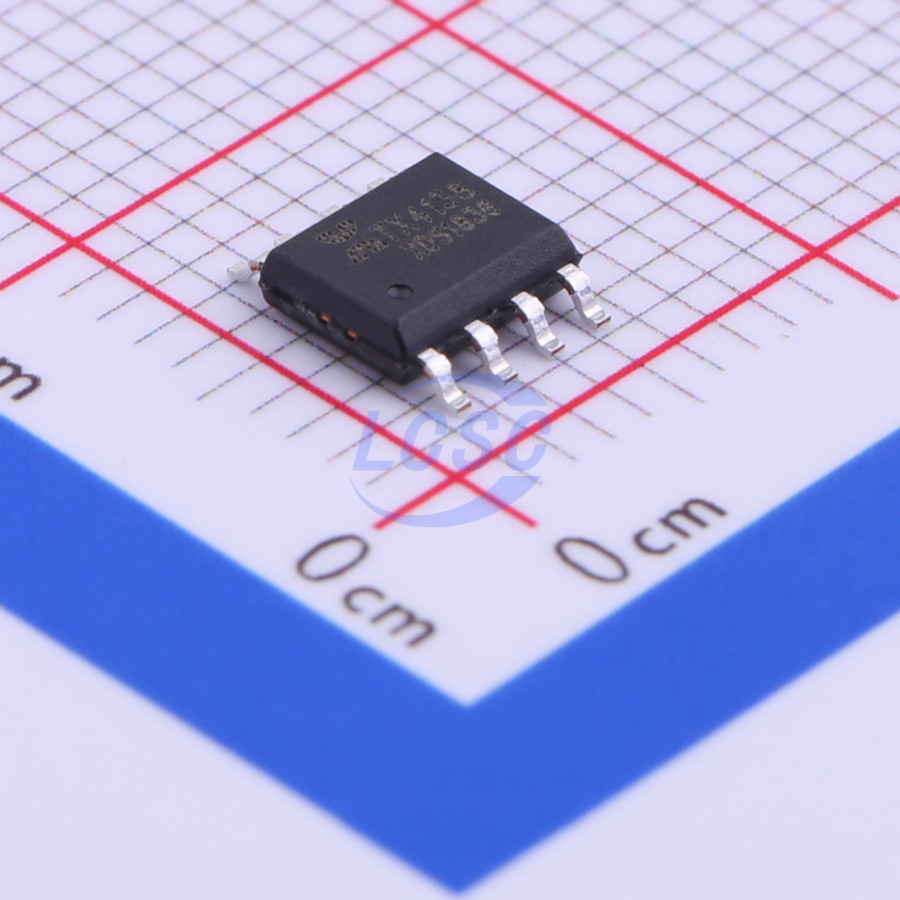

TX4138
200kHz Step-down type Adjustable 800mV~40V 4A SOIC-8-EP Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8-EPROHS CompliantActive
4A, 60V, 200KHz Step-Down Converter
- Manufacturer
- XDS
- Manufacturer part #
- TX4138
- Store part #
- C329267
- Package / case
- SOIC-8-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,880 in stock
#C329267
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹114.62 | ₹114.62 |
| 10+ | ₹92.01 | ₹920.10 |
| 30+ | ₹80.70 | ₹2,421.00 |
| 100+ | ₹69.39 | ₹6,939.00 |
| 500+ | ₹57.21 | ₹28,605.00 |
| 1,000+ | ₹53.73 | ₹53,730.00 |
1 × ₹114.62
₹114.62
excl. GST
₹135.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TX4138
₹114.62 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Frequency - Switching
- 200kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Light load efficient mode;Operating status indication
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~40V
- Output Current
- 4A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.114 g
Overview
The TX4138 is a monolithic step-down switch mode converter. It achieves 4A continuous output current over a wide input supply range with excellent load and line regulation. The maximum peak current can be programmed by sensing current through an accurate sense resistor. Fault condition protection includes cycle-by-cycle current limiting and thermal shutdown. The TX4138 requires a minimum number of readily available standard external components. The TX4138 is available in 8-pin ESOIC8 packages.
Applications
- Balance Bike
- Ebike
- USB Power Supplies
Key features
- Wide 4.5V to 60V Operating Input Range
- Output Adjustable from 0.8V to 40V
- Standby Current 400uA
- Power Save Mode at light load
- Programmable maximum peak current
- 32mΩ Internal Power MOSFET Switch
- 93% Efficiency at Vin = 60V，Vout = 12V@2A
- 84.5% Efficiency at Vin = 60V，Vout = 5V@2A
- Fixed 200KHz Frequency
- Thermal Shutdown
- Cycle-by-Cycle Over Current Protection
- Available in 8-Pin ESOIC8 Packages
