TX41390

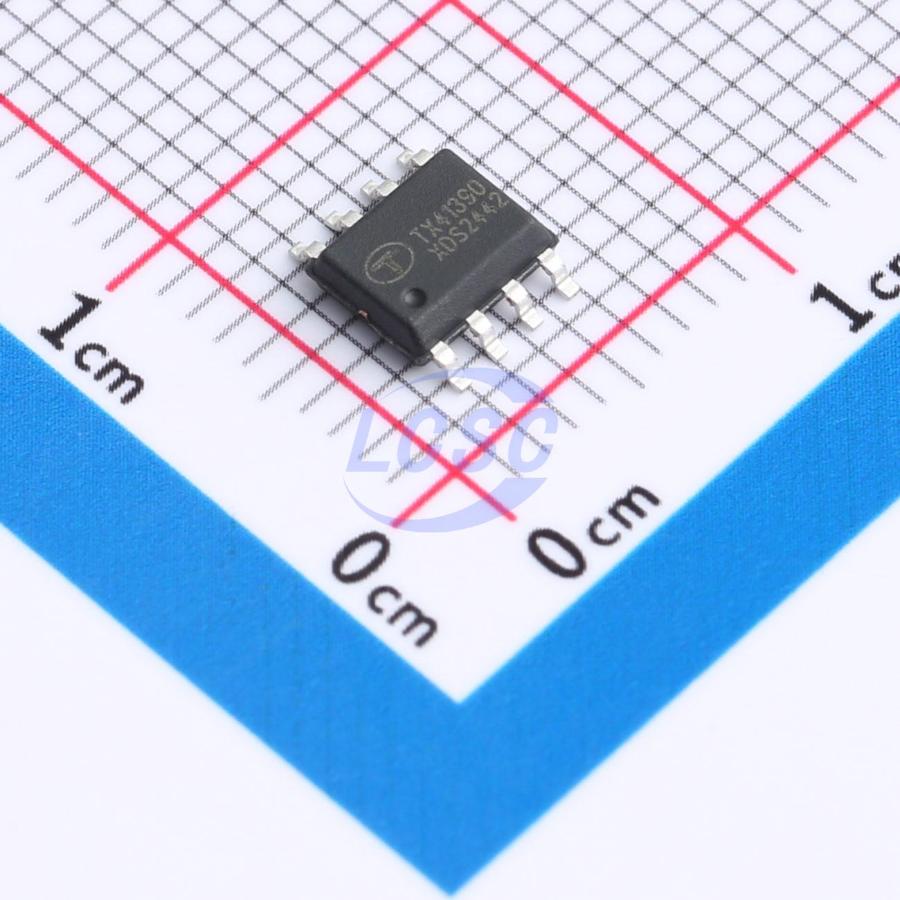

TX41390 is a wide input voltage buck DC-DC converter with a maximum input voltage of 100V. It features low standby power consumption, high efficiency, low ripple, excellent line regulation and load regulation, and supports high current output up to 2A or above. The output constant voltage can be set by configuring the voltage divider resistors on the FB pin. It adopts a fixed-frequency PWM control scheme with a typical switching frequency of 150KHz, and enters pulse-skipping mode under light load conditions to achieve high conversion efficiency. Internally integrated soft-start, over-temperature protection, output short-circuit protection, and current limiting protection functions enhance system reliability. The device is available in an ESOP8 package with an exposed thermal pad connected to the CS pin. TX41390 is a buck DC-DC converter compatible with a wide input voltage range. The chip integrates a built-in 100V/6A power MOSFET. It adopts a fixed-frequency PWM peak current mode control scheme, featuring low standby power consumption, fast transient response, and excellent line regulation and load regulation. The typical switching frequency is 150KHz, and the device enters pulse-skipping mode under light load conditions to achieve high conversion efficiency. Internally integrated soft-start, over-temperature protection, output short-circuit protection, and current limiting protection functions enhance system reliability.

Applications

• Tracker
• Constant voltage source
• Electric vehicles, e-bikes, electric scooters
• Self-balancing scooters, trucks

Key features

• Wide input voltage range: 8V~100V
• Input current limit adjustable via external resistor
• Adjustable output voltage
• EN enable control
• Supports output 12V/2A, 5V/2A
• Operating frequency: 150KHz
• Low standby power consumption
• Built-in over-temperature protection, output short-circuit protection
• Built-in soft-start
