XDSDatasheet (PDF)

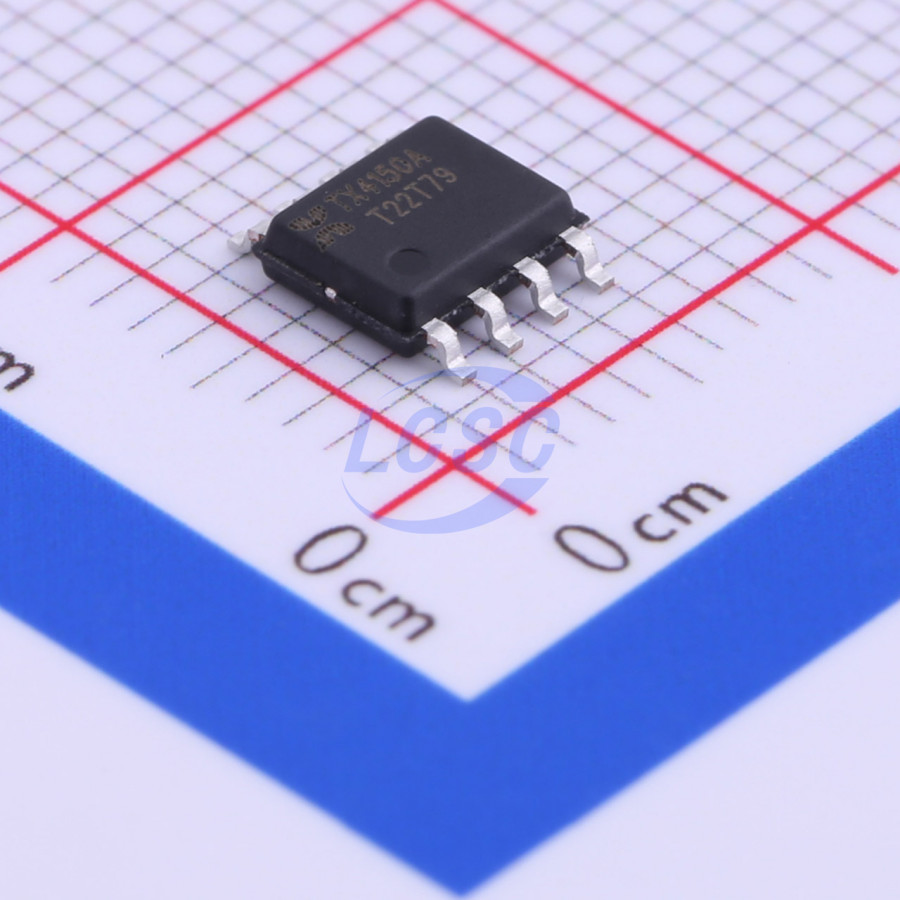

TX4150A
Buck Switching Regulator IC Adjustable 1 Output 1.5A ESOP-8
ESOP-8ROHS CompliantActive
36V Input 1.5A Output Switching Buck DC-DC Converter
- Manufacturer
- XDS
- Manufacturer part #
- TX4150A
- Store part #
- C329265
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,060 in stock
#C329265
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.38 | ₹216.90 |
| 50+ | ₹34.48 | ₹1,724.00 |
| 150+ | ₹30.67 | ₹4,600.50 |
| 500+ | ₹23.99 | ₹11,995.00 |
| 2,500+ | ₹21.86 | ₹54,650.00 |
| 4,000+ | ₹20.59 | ₹82,360.00 |
5 × ₹43.38
₹216.90
excl. GST
₹255.94 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TX4150A
₹216.90 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 150kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Adjustable current limiting;Cycle-by-cycle current limiting;Cable compensation;Built-in LDO regulator;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.161 g
Overview
TX4150 is a 36V input, 1.5A maximum output switching buck DC converter. The device integrates a high-side 36V 250mΩ and low-side 36V 140mΩ power MOSFET. Over a wide input voltage range of 4.5V to 36V, it delivers an adjustable 1.5A continuous load current output, with input overvoltage protection at 33V. Peak current mode control provides fast transient response and cycle-by-cycle current limiting. The device features configurable line drop compensation with adjustable output current. Input undervoltage lockout. Output overvoltage protection. CC/CV mode control provides smooth transition between constant current charging and constant voltage charging phases. Built-in soft-start prevents inrush current at power-up. The device is available in an ESOP8 package.
Applications
- Network systems & consumer electronics
- Chargers
- Portable charging devices
- Universal USB charger DC-DC conversion
Key features
- Wide input voltage range: 4.5V - 36V
- Input overvoltage protection
- Adjustable continuous output current up to 1.5A
- Efficiency: up to 97%
- Control modes: constant current, constant voltage
- Fixed frequency: 150KHz
- Line compensation function
- Thermal protection
- Adjustable soft-start time
