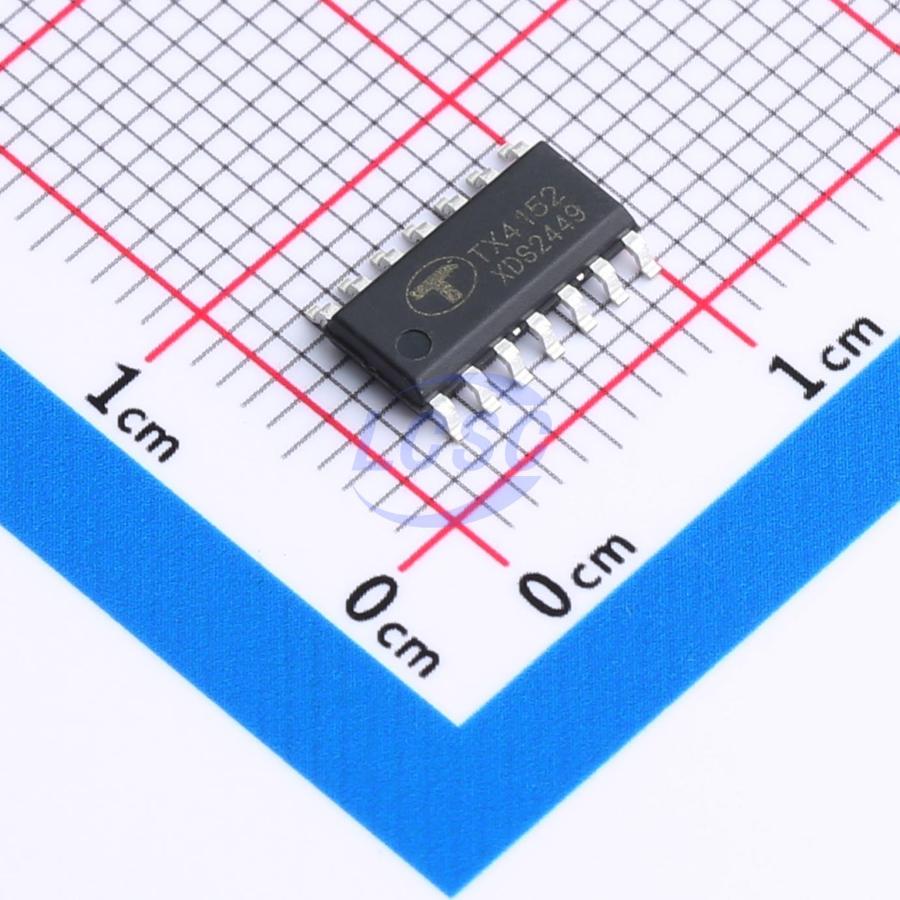

XDS

TX4152

Buck Switching Regulator IC Adjustable 3V~30V 1 Output 3.5A SOP-14

SOP-14ROHS CompliantActive

Wide-range synchronous step-down converter

Manufacturer: XDS
Manufacturer part #: TX4152
Store part #: C42393477
Package / case: SOP-14
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,869 in stock

#C42393477

Stock & price checked 2 days ago

Quantity	Unit price	Pack price
1+	₹62.23	₹62.23
10+	₹55.13	₹551.30
30+	₹51.69	₹1,550.70
100+	₹48.24	₹4,824.00
500+	₹46.08	₹23,040.00
1,000+	₹45.01	₹45,010.00

Quantity (min 1)

1 × ₹62.23

₹62.23

excl. GST

₹73.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 4,000 per reel

TX4152

₹62.23 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+120℃@(TJ)
Function: Step-down type
Frequency - Switching: 80kHz;175kHz
Number of Outputs: 1
Features: Adjustable current limiting;Built-in LDO regulator;Overcurrent Protection
Output Type: Adjustable
Topology: Buck
Operating Voltage: 8V~60V
Switch tube (built-in/external): Built-in
Output Current: 3.5A
Output Voltage: 3V~30V
Quiescent Current: 1.52mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.244 g

Overview

TX4152 is a synchronous buck regulator with an input voltage range of 8V to 60V. It offers excellent load regulation and line regulation capabilities, delivering a continuous output current of up to 3.5A. The switching frequency of the TX4152 is adjustable via a resistor, and its high-efficiency design supports a synchronous topology. Current-mode operation provides fast transient response and benefits loop stability. The TX4152 integrates internal soft-start, over-temperature protection, output short-circuit protection, and current limiting protection, enhancing system reliability. The TX4152 requires only a minimal number of standard external components. The TX4152 converter is available in an industry-standard SOP-14 package.
