XDSDatasheet (PDF)

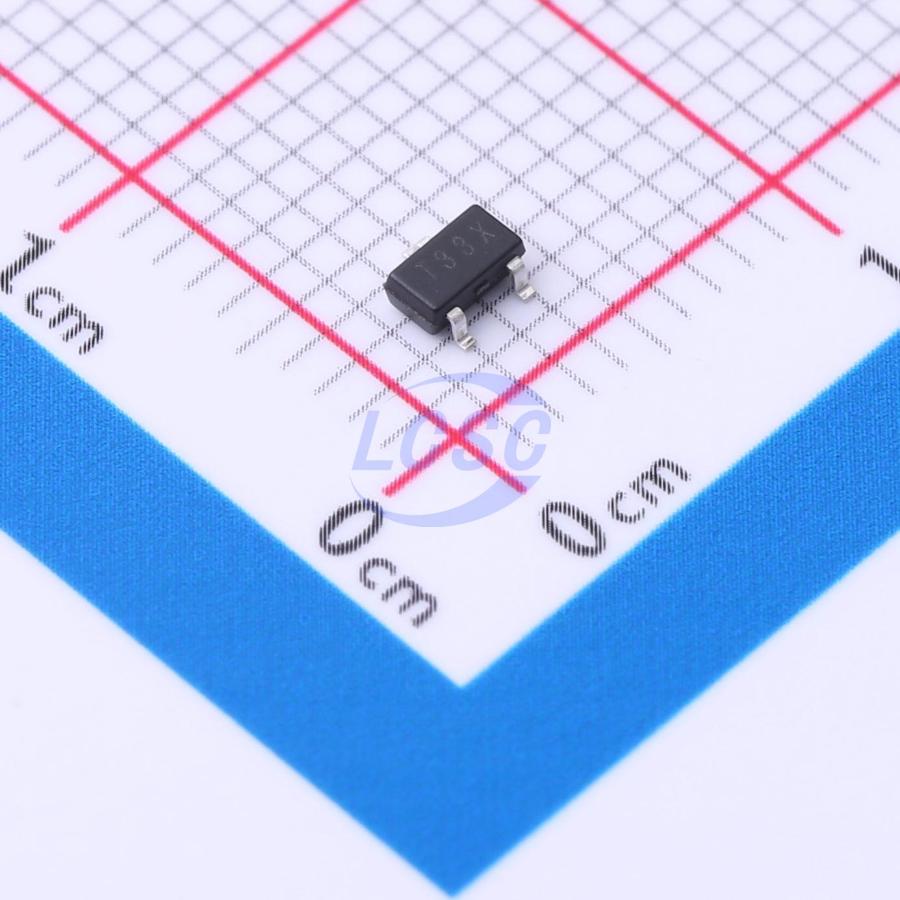

TX4204
Boost Switching Regulator IC Fixed 3.3V 1 Output 1A SOT-23-3
SOT-23-3ROHS CompliantActive
Low Power High Efficiency Synchronous Boost DC-DC Converter
- Manufacturer
- XDS
- Manufacturer part #
- TX4204
- Store part #
- C5122342
- Package / case
- SOT-23-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
33,180 in stock
#C5122342
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.50 | ₹75.00 |
| 100+ | ₹5.94 | ₹594.00 |
| 300+ | ₹5.16 | ₹1,548.00 |
| 3,000+ | ₹4.54 | ₹13,620.00 |
| 6,000+ | ₹4.06 | ₹24,360.00 |
| 9,000+ | ₹3.82 | ₹34,380.00 |
10 × ₹7.50
₹75.00
excl. GST
₹88.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TX4204
₹75.00 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+85℃
- Function
- Boost
- Frequency - Switching
- 370kHz
- Number of Outputs
- 1
- Output Type
- Fixed
- Topology
- Boost
- Operating Voltage
- 900mV~5V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 3.3V
- Quiescent Current
- 15uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The TX4204 series is a low-power, high-efficiency, low-ripple, high-frequency PFM synchronous boost DC-DC converter. Requiring only three external components, this series steps up low input battery voltage to the required operating voltage.
Applications
- Network systems
- Medical devices
- Industrial equipment
- Consumer electronics
- Electronic devices powered by 1~3 dry cell batteries
- Electronic dictionaries, digital cameras
- Wireless headphones, wireless mice and keyboards
- Handheld electronic devices such as medical instruments, VCRs, PDAs
Key features
- Input voltage: 0.9~5V
- Output voltage: 3.3V (expandable)
- Conversion efficiency: up to 95%
- Maximum operating frequency: 370KHz
- Low quiescent current: 15uA
- Output accuracy: ±2.5%
- Low ripple, low noise
- Compact size
