XDS

TX4211

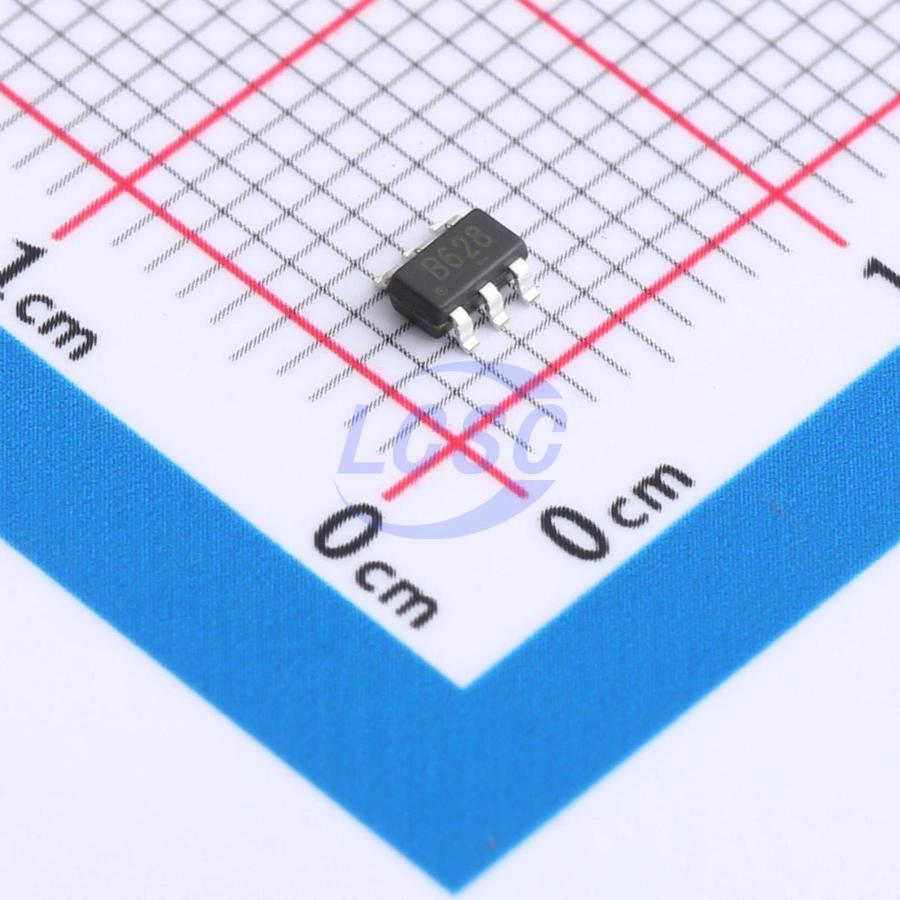

Boost Switching Regulator IC Adjustable 1 Output 2A SOT-23-6L

SOT-23-6LROHS CompliantActive

2A High Efficiency Current Mode Boost Converter

Manufacturer: XDS
Manufacturer part #: TX4211
Store part #: C5440788
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,200 in stock

#C5440788

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹17.52	₹87.60
50+	₹15.24	₹762.00
150+	₹14.26	₹2,139.00
500+	₹13.03	₹6,515.00
3,000+	₹12.49	₹37,470.00
6,000+	₹12.17	₹73,020.00

Quantity (min 5, multiples of 5)

5 × ₹17.52

₹87.60

excl. GST

₹103.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TX4211

₹87.60 for 5 + GST

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Function: Boost
Frequency - Switching: 1.2MHz
Number of Outputs: 1
Features: Adjustable current limiting;Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2V~24V
Switch tube (built-in/external): Built-in
Output Current: 2A
Quiescent Current: 100uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.045 g

Overview

TX4211 is a constant-frequency current-mode boost converter designed for small, low-power applications. The switching frequency is 1.2MHz, allowing the use of small, low-cost capacitors and inductors. Internal soft-start reduces inrush current and extends battery life. The device features automatic switchover to pulse frequency modulation (PFM) mode under light-load conditions. Under-voltage lockout, current limiting, and thermal overload protection are integrated to prevent device damage during output overload. The device is available in a SOT-23 package.
