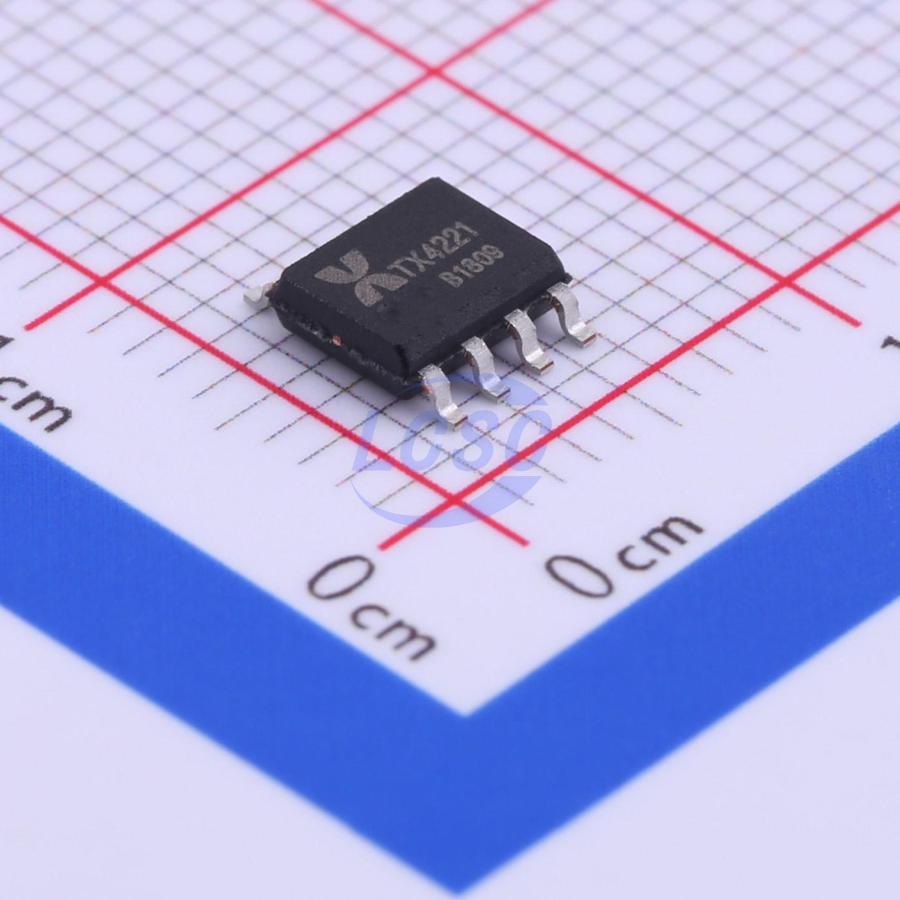

XDS

TX4221

Boost Buck-Boost Switching Regulator IC Adjustable 1 Output SOP-8

SOP-8ROHS CompliantActive

Boost/Buck-Boost DC-DC Controller

Manufacturer: XDS
Manufacturer part #: TX4221
Store part #: C329269
Package / case: SOP-8
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,966 in stock

#C329269

Stock & price checked 23 h ago

Quantity	Unit price	Pack price
1+	₹78.67	₹78.67
10+	₹63.45	₹634.50
30+	₹56.07	₹1,682.10
100+	₹48.69	₹4,869.00
500+	₹42.38	₹21,190.00
1,000+	₹39.99	₹39,990.00

Quantity (min 1)

1 × ₹78.67

₹78.67

excl. GST

₹92.83 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TX4221

₹78.67 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TJ)
Frequency - Switching: 150kHz
Function: Boost;Buck-Boost
Number of Outputs: 1
Features: Overcurrent Protection;Light load efficient mode
Output Type: Adjustable
Topology: Boost
Operating Voltage: 5V~40V
Switch tube (built-in/external): Built-in
Quiescent Current: 75uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.112 g

Overview

TX4221 is a dedicated DC-DC controller IC designed for boost and buck-boost switching power supplies. Typical applications support an input voltage range of 5–40V; with extended circuitry, input voltages above 400V are also supported. The IC employs fixed-frequency PWM control and automatically reduces switching frequency under light-load conditions to improve conversion efficiency. An integrated high-precision error amplifier, oscillator, and frequency compensation circuit simplify peripheral design. Built-in overcurrent protection and EN pin shutdown functionality are included. The switching frequency is adjustable via a single external resistor, allowing easy configuration for different applications. Internal soft-start and over-temperature protection circuits reduce external component count and enhance system reliability. Available in SOP8 package.
