XDS

TX6143

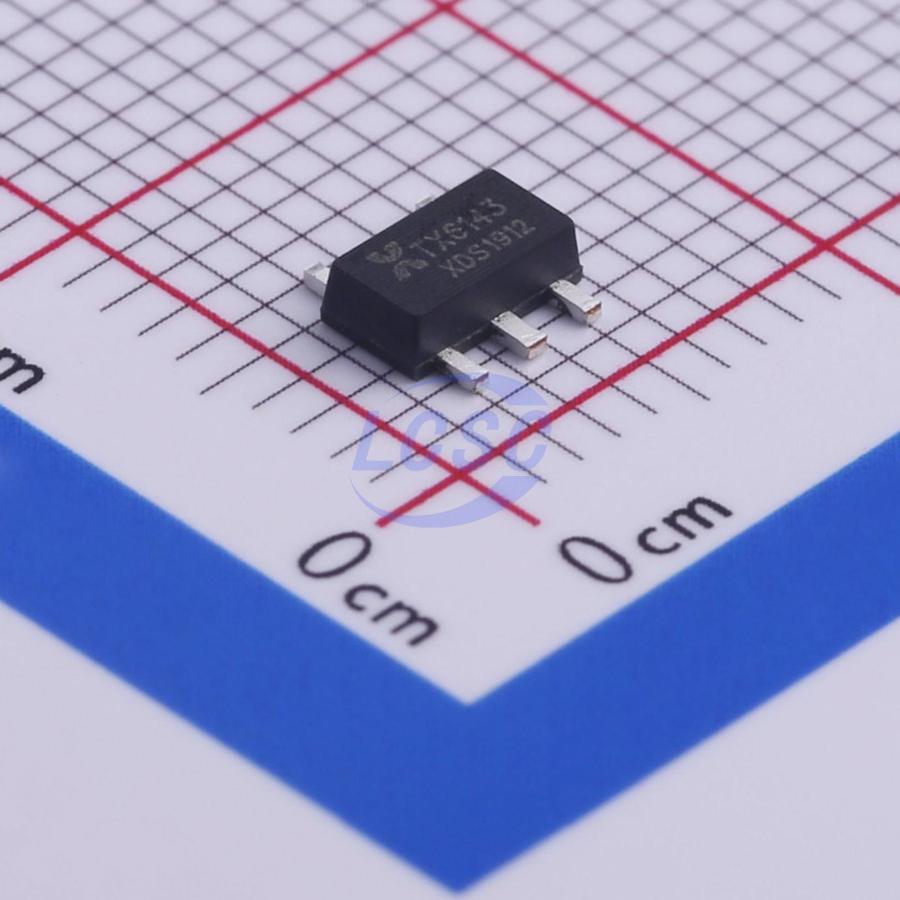

LED Driver IC 1 Output Buck PWM Analog Dimming 1.2A SOT-89-5

SOT-89-5ROHS CompliantActive

High-end current-sensing step-down LED constant-current driver

Manufacturer: XDS
Manufacturer part #: TX6143
Store part #: C448629
Package / case: SOT-89-5
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,655 in stock

#C448629

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹31.77	₹158.85
50+	₹25.20	₹1,260.00
150+	₹22.39	₹3,358.50
500+	₹18.87	₹9,435.00
3,000+	₹15.55	₹46,650.00
6,000+	₹14.61	₹87,660.00

Quantity (min 5, multiples of 5)

5 × ₹31.77

₹158.85

excl. GST

₹187.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TX6143

₹158.85 for 5 + GST

Specifications

Features: Over-Temperature Protection (OTP)
Frequency - Switching: 1MHz
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+150℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 1.2A
Constant Current Accuracy: 3%
Voltage - Input(DC): 5.5V~60V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.087 g

Overview

TX6143 is a continuous inductor current conduction mode step-down LED constant-current driver designed to drive one or multiple LED strings. Operating voltage ranges from 5.5V to 60V, providing adjustable output current with a maximum output current of up to 1.2A. Depending on the input voltage and external components, it can drive LEDs with power up to tens of watts. The device integrates a power switch, employs a high-side current sensing circuit, and features a DIM pin compatible with both PWM and analog dimming. When the DIM pin voltage falls below 0.3V, the output shuts down and enters standby mode, with current gradually decreasing to improve system reliability. A patented circuit architecture eliminates output current overshoot during low dropout operation, extending LED service life. A patented constant-current circuit delivers excellent load regulation and line regulation. Available in SOT89-5 and ESOP8 packages.
