XDS

TX6301

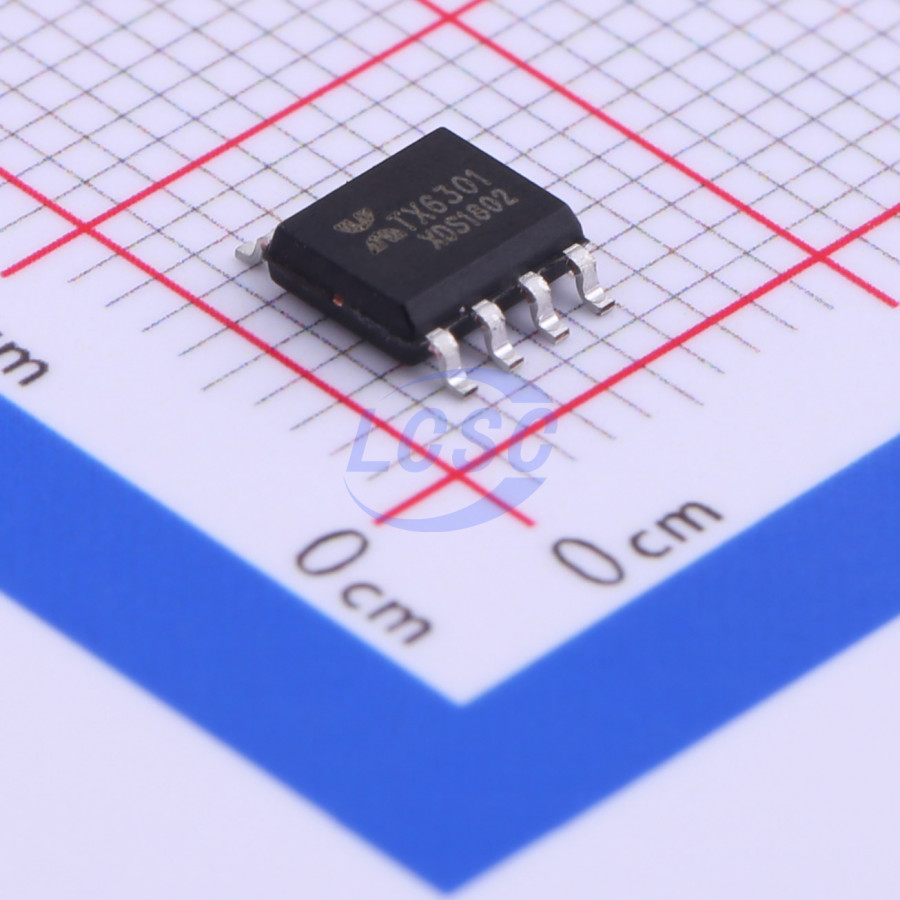

LED Driver IC 1 Output Buck-Boost PWM Dimming 3A SOIC-8

SOIC-8ROHS CompliantActive

High-precision and high-efficiency step-up/step-down LED constant current driver

Manufacturer: XDS
Manufacturer part #: TX6301
Store part #: C329279
Package / case: SOIC-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,713 in stock

#C329279

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹108.86	₹108.86
10+	₹88.22	₹882.20
30+	₹77.79	₹2,333.70
100+	₹67.58	₹6,758.00
500+	₹56.72	₹28,360.00
1,000+	₹53.67	₹53,670.00

Quantity (min 1)

1 × ₹108.86

₹108.86

excl. GST

₹128.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TX6301

₹108.86 for 1 + GST

Specifications

Features: Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): External
Operating temperature: -20℃~+85℃
Topology: Buck-Boost
Number of Channels: 1
Output Current: 3A
Constant Current Accuracy: 1%
Voltage - Input(DC): 5V~100V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.135 g

Overview

TX6301 is a high-precision, high-efficiency buck-boost LED constant-current driver control IC with a wide input/output voltage range. The IC employs current-mode closed-loop control to achieve high-precision constant-current driving. Operating frequency is adjustable via an external capacitor. Built-in cycle-by-cycle current limiting protection, soft-start, and over-temperature protection ensure system reliability. A built-in dimming pin allows LED dimming by applying a PWM signal to the CE pin. The IC features stable and reliable operation with fast dynamic response, delivering high-precision, high-efficiency buck-boost constant-current driving. Built-in VDD Zener diode. Available in SOP8 package.
