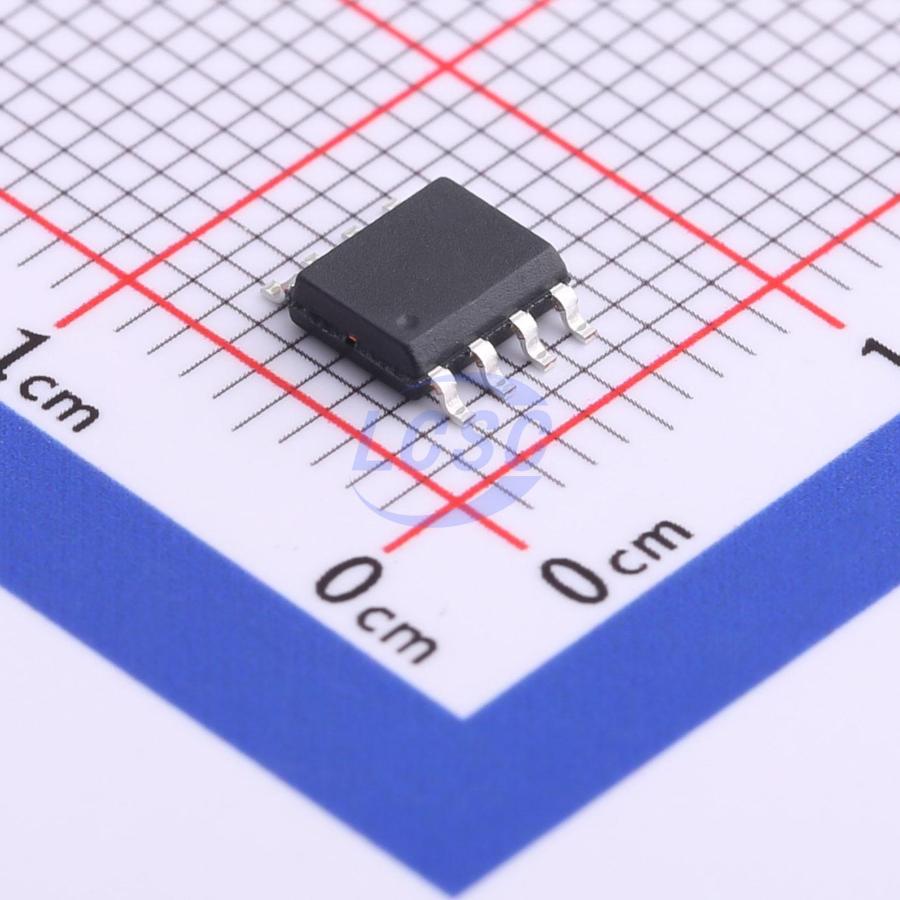

XDS

TX6410B

LED Driver IC 1 Output Buck PWM Dimming 2A ESOP-8

ESOP-8ROHS CompliantActive

Linear step-down LED constant current driver with PWM dimming

Manufacturer: XDS
Manufacturer part #: TX6410B
Store part #: C524847
Package / case: ESOP-8
Category: LED Drivers ICs
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

20,250 in stock

#C524847

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹29.30	₹146.50
50+	₹22.99	₹1,149.50
150+	₹20.28	₹3,042.00
500+	₹16.91	₹8,455.00
2,500+	₹15.04	₹37,600.00
4,000+	₹14.14	₹56,560.00

Quantity (min 5, multiples of 5)

5 × ₹29.30

₹146.50

excl. GST

₹172.87 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

TX6410B

₹146.50 for 5 + GST

Specifications

Output Voltage: 2.5V~30V
Features: Over-Temperature Protection (OTP)
Switch Tube (Built-In/External): Built-in
Operating temperature: -40℃~+120℃
Topology: Buck
Number of Channels: 1
Type: DC-DC
Output Current: 2A
Constant Current Accuracy: 4%
Voltage - Input(DC): 2.5V~6V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.172 g

Overview

TX6410B is a linear buck LED constant-current driver with PWM dimming capability. Only one external resistor is required to form a complete LED constant-current driver circuit. The output current can be adjusted by varying this external resistor, with an output current range of 10mA to 2000mA. TX6410B integrates a 30V 50mΩ MOS with built-in over-temperature protection to effectively safeguard the IC against damage caused by overheating. TX6410B features very low quiescent current with a typical value of 60μA. TX6410B supports PWM dimming, allowing LED current adjustment by applying a PWM signal to the DIM pin. TX6410B is available in an ESOP8 package with an exposed thermal pad connected to the LED pin.
