VISHAYDatasheet (PDF)

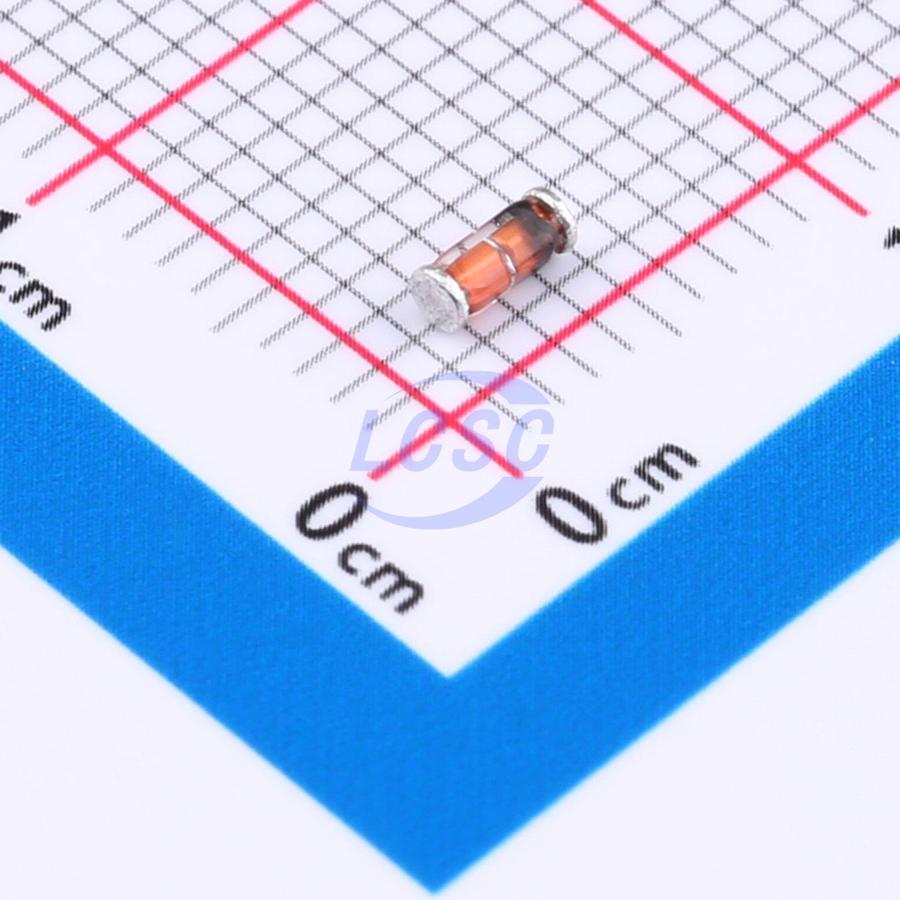

TZS4705-GS08
Zener Diode Independent 18V 500mW QuadroMELF(SOD-80)
QuadroMELF(SOD-80)ROHS3 CompliantActive
DIODE ZENER 18V 500mW QuadroMELF(SOD-80)
- Manufacturer
- VISHAY
- Manufacturer part #
- TZS4705-GS08
- Store part #
- C5377596
- Package / case
- QuadroMELF(SOD-80)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,220 in stock
#C5377596
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.72 | ₹87.20 |
| 100+ | ₹6.80 | ₹680.00 |
| 300+ | ₹5.85 | ₹1,755.00 |
| 2,500+ | ₹5.12 | ₹12,800.00 |
| 5,000+ | ₹4.55 | ₹22,750.00 |
| 10,000+ | ₹4.26 | ₹42,600.00 |
10 × ₹8.72
₹87.20
excl. GST
₹102.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
TZS4705-GS08
₹87.20 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 50nA
- Zener Voltage(Range)
- 17.1V~18.9V
- Zener Voltage(Nom)
- 18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.057 g
Overview
Applications
- Voltage stabilization
Key features
- Zener voltage specified at 50 μA
- Maximum delta VZ given from 10 μA to 100 μA
- Very high stability
- Low noise
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BZV55-C18,115#C128823Nexperia · SOD-80C | Nexperia | SOD-80C | 3,610 | ₹16.13 · 3,610 in stock | View |
 | ZMM5248B#C48578703LGE · LL-34 | LGE | LL-34 | 5,850 | ₹1.81 · 5,850 in stock | View |
 | ZMM5248B#C53058773luJing · LL-34 | luJing | LL-34 | 2,300 | ₹2.16 · 2,300 in stock | View |
 | TZMC18-GS08#C917485VISHAY · MiniMELF(SOD-80) | VISHAY | MiniMELF(SOD-80) | 170 | ₹7.50 · 170 in stock | View |
 | ZMM5248BPF#C7497523ST(Semtech) · LL-34 | ST(Semtech) | LL-34 | 880 | ₹3.32 · 880 in stock | View |
