U0349
Step-down type 500kHz Adjustable 2A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive

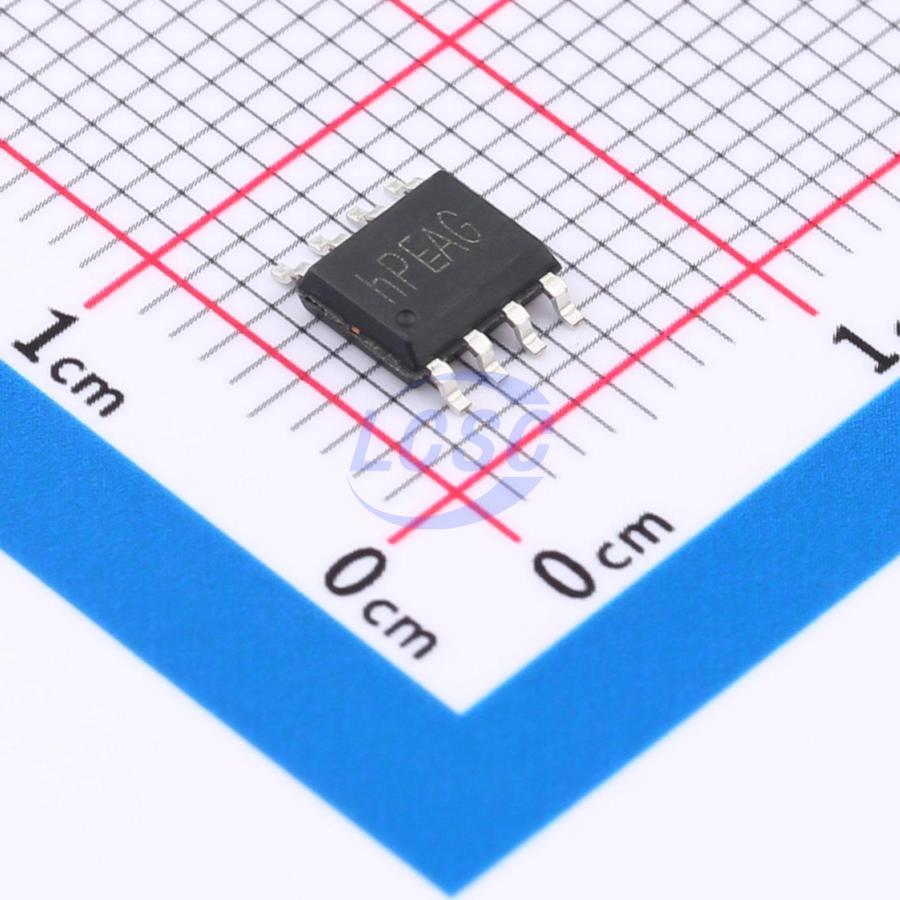

U0349 High Frequency Synchronous Rectified Buck Converter
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U0349
- Store part #
- C41374774
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,650 in stock
#C41374774
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.89 | ₹174.45 |
| 50+ | ₹30.36 | ₹1,518.00 |
| 150+ | ₹28.43 | ₹4,264.50 |
| 500+ | ₹26.06 | ₹13,030.00 |
| 2,500+ | ₹24.98 | ₹62,450.00 |
| 4,000+ | ₹24.34 | ₹97,360.00 |
5 × ₹34.89
₹174.45
excl. GST
₹205.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U0349
₹174.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃@(TA)
- Function
- Step-down type
- Frequency - Switching
- 500kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Overcurrent Protection;Light load efficient mode
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~38V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 2A
- Quiescent Current
- 600uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.208 g
Overview
U0349 is a high-frequency, synchronous rectification, step-down switching mode converter with integrated power MOSFETs. The device is available in multiple frequency and feedback voltage versions for different application requirements. It delivers up to 3A maximum output current over a wide input voltage range with excellent load and line regulation performance. The ECOT PSM control mode provides ultra-fast transient response, simplified loop design, and tight output regulation. The U0349 requires minimal external components and comes in an ESOP8 package.
Applications
- Automotive systems
- Network terminal equipment
- Security surveillance cameras
- Printer systems
- Industrial power systems
- Distributed power systems
Key features
- Wide 4.5V to 35V input voltage range
- 2A maximum output current
- 500kHz switching frequency
- ECOT mode control with fast transient response
- Built-in overcurrent limiting
- Built-in overvoltage protection
- PFM mode at light load for high efficiency
- Internal soft-start
- 25mΩ/15mΩ low RDS(ON) internal power MOSFETs
- Output voltage adjustable from 0.923V
- No Schottky diode required
- Short-circuit protection with hiccup mode
- Integrated internal compensation
- Thermal shutdown protection
- ESOP8 package
- -40°C to +85°C operating temperature range
