UNI-SEMICDatasheet (PDF)

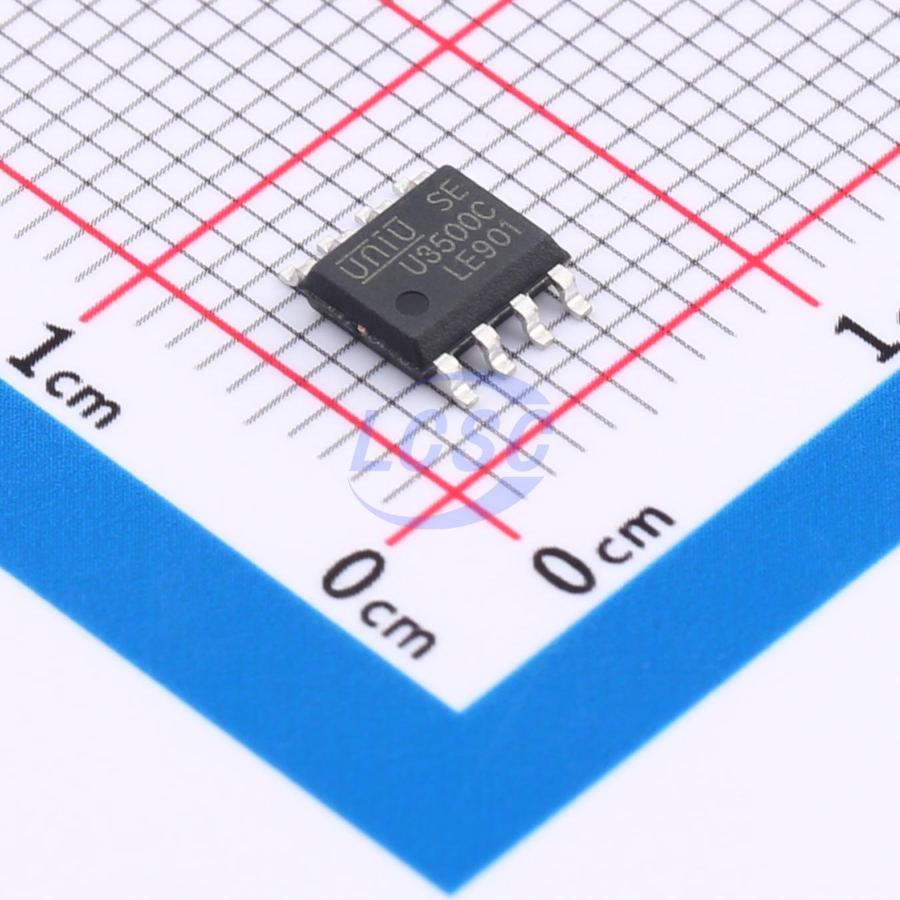

U3500C
Step-down type 80kHz Adjustable 10A ESOP-8 Voltage Regulators - DC DC Switching Regulators RoHS
ESOP-8ROHS CompliantActive
200V Input, 10A Current Limit Step-Down Converter
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U3500C
- Store part #
- C20416756
- Package / case
- ESOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,360 in stock
#C20416756
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.06 | ₹180.30 |
| 50+ | ₹28.30 | ₹1,415.00 |
| 150+ | ₹24.97 | ₹3,745.50 |
| 500+ | ₹20.82 | ₹10,410.00 |
| 2,500+ | ₹18.98 | ₹47,450.00 |
| 4,000+ | ₹17.88 | ₹71,520.00 |
5 × ₹36.06
₹180.30
excl. GST
₹212.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U3500C
₹180.30 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+150℃
- Function
- Step-down type
- Frequency - Switching
- 80kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 9V~200V
- Switch tube (built-in/external)
- External
- Output Current
- 10A
- Quiescent Current
- 2.5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.176 g
Overview
U3500C is a high-voltage buck switching regulator designed to drive an external power MOSFET. Its wide input voltage range suits a variety of buck applications, making it an ideal choice for automotive, industrial, and lighting applications. The device employs hysteretic voltage-mode control to achieve extremely fast response. Its proprietary feedback control scheme minimizes the number of required external components. An 80kHz switching frequency contributes to compact component sizing. Thermal shutdown and short-circuit shutdown ensure reliable, fault-tolerant operation. Low quiescent current makes it well-suited for battery-powered applications.
Applications
- Electric Scooter/E-Bike Control Power
- Solar Energy Systems
- Automotive Power Systems
- Industrial Power Supplies
- High-Power LED Drivers
Key features
- Integrated bootstrap power supply circuit
- DC-DC applications for typical 12V switching current
- Hysteresis control: no compensation required
- 80kHz switching frequency
- PWM control input for buck applications
- Integrated IC short-circuit shutdown protection
- Low quiescent current
- Thermal shutdown protection
- ESOP-8 package with exposed pad
