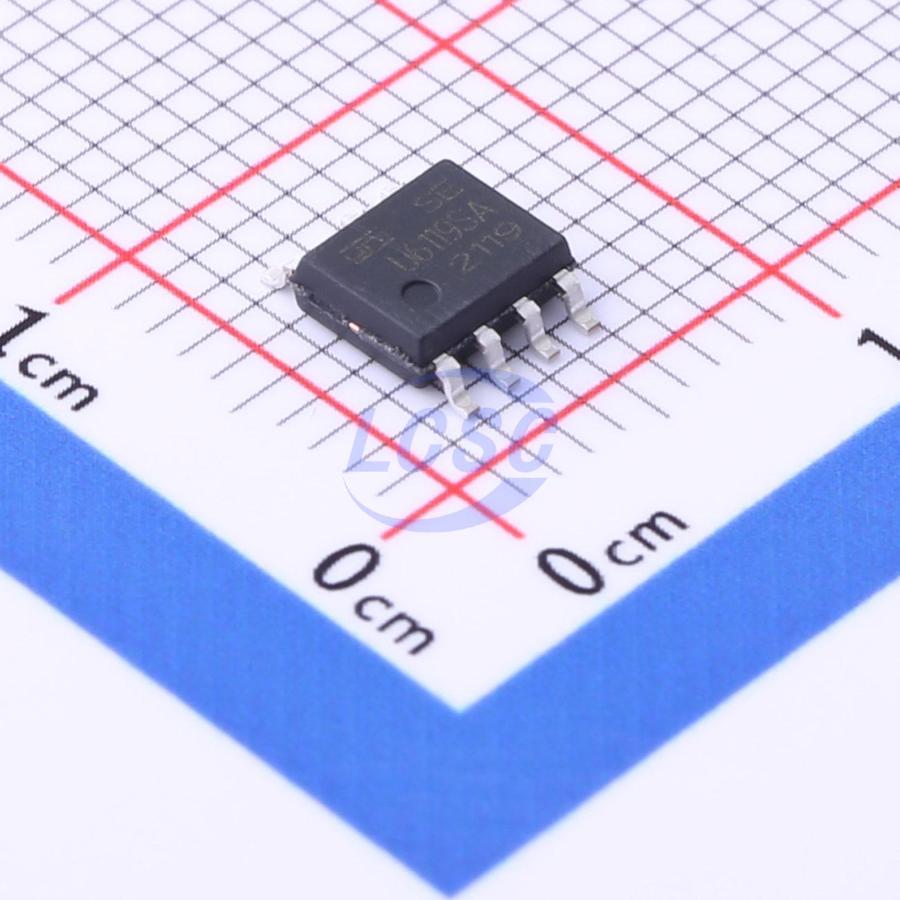

U6119SA
Step-down type 200kHz Adjustable SOP-7 Voltage Regulators - DC DC Switching Regulators RoHS
SOP-7ROHS CompliantActive
U6119SA DC-DC Converter Control Circuit
- Manufacturer
- UNI-SEMIC
- Manufacturer part #
- U6119SA
- Store part #
- C400124
- Package / case
- SOP-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,960 in stock
#C400124
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.77 | ₹100.77 |
| 10+ | ₹82.04 | ₹820.40 |
| 30+ | ₹72.79 | ₹2,183.70 |
| 100+ | ₹63.53 | ₹6,353.00 |
| 500+ | ₹58.15 | ₹29,075.00 |
| 1,000+ | ₹49.96 | ₹49,960.00 |
1 × ₹100.77
₹100.77
excl. GST
₹118.91 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
U6119SA
₹100.77 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+145℃
- Function
- Step-down type
- Frequency - Switching
- 200kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Cable compensation;Light load efficient mode;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Flyback;Buck
- Switch tube (built-in/external)
- Built-in
- Quiescent Current
- 15uA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.169 g
Overview
The U6119S/SA/SC series is a monolithic control circuit that provides the primary functions for DC-DC voltage conversion. The device incorporates an internal temperature-compensated reference, a comparator, a duty cycle-controlled oscillator with an active current limiting circuit, a driver, and a high-voltage high-current output switch. The output voltage is adjustable via two external resistors, with a reference accuracy of 2%. The U6119S/SA/SC series devices are designed with minimal external components, making them suitable for step-down applications.
Applications
- Electric vehicles
- Electric bicycles
- Industrial control
Key features
- 200V/100V input MOS
- Adjustable output switch
- 2% reference accuracy
- Low quiescent current: 15 μA (typical)
- Output MOSFET operating frequency up to 200kHz
- Effective current limiting
- Supports flyback and buck topologies
- Quasi-resonant buck constant current control (SEL pin grounded)
- Low standby power consumption <70mW
- Programmable cable drop compensation (CDC) for primary-side feedback CV mode
- Built-in AC line and load constant current compensation
- Built-in protection features: short-circuit load protection, on-chip thermal shutdown, cycle-by-cycle current limiting, leading-edge blanking, floating pin protection, VDD UVLO, OVP and clamping
- Package (SOP7)
