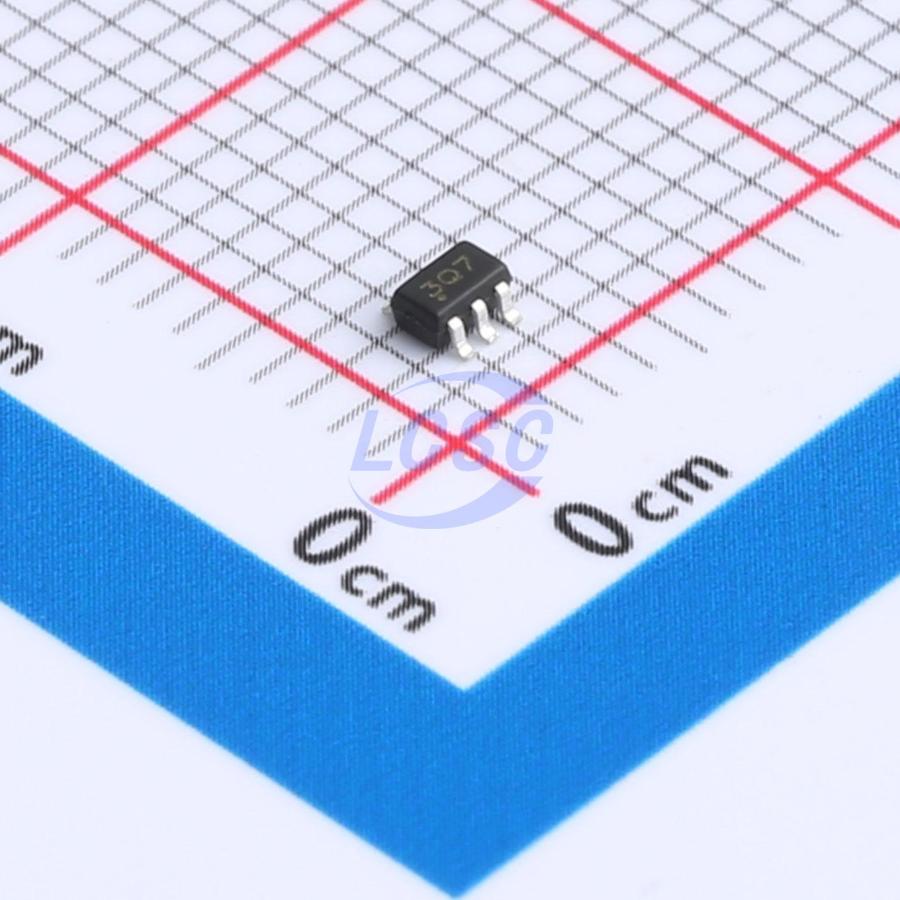

UTC

U74LVC1G157G

1 1.65V~5.5V SOT-363 Analog Switches, Multiplexers, Demultiplexers RoHS

SOT-363ROHS CompliantActive

CMOS IC single 2-input multiplexer

Manufacturer: UTC
Manufacturer part #: U74LVC1G157G
Store part #: C7509610
Package / case: SOT-363
Category: Analog Switches, Multiplexers, Demultiplexers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,420 in stock

#C7509610

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹11.51	₹57.55
50+	₹9.06	₹453.00
150+	₹7.83	₹1,174.50
500+	₹6.91	₹3,455.00
3,000+	₹6.18	₹18,540.00
6,000+	₹5.81	₹34,860.00

Quantity (min 5, multiples of 5)

5 × ₹11.51

₹57.55

excl. GST

₹67.91 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

U74LVC1G157G

₹57.55 for 5 + GST

Specifications

Features: Power-off isolation
Operating Temperature: -40℃~+125℃
Number of Channels: 1
Voltage - Supply: 1.65V~5.5V
Propagation Delay: 5.5ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.115 g

Overview

The U74LVC1G157 is a single 2-input multiplexer. The data select input(S) determines the two data input I0 or I1 which of them is connect to the output with the true and complementary data. This device has power-down protective circuit, preventing device destruction when it is powered down.

Key features

Wide supply voltage range from 1.65V to 5.5V
IOFF supports partial-power-down mode
Low static power consumption; lCC = 10μA (Max.)
±24mA output drive (VCC = 3.0V)

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74LVC1G3157DCK3#C1546312TI · SC-70-6	TI	SC-70-6	5	₹25.53 · 5 in stock	View
74LVC1G3157DW-7#C176651DIODES · SOT-363-6	DIODES	SOT-363-6	5	₹72.86 · 5 in stock	View
SN74LVC1G3157DC(LX)#C22469948lingxingic · SOT-363	lingxingic	SOT-363	3,010	₹6.36 · 3,010 in stock	View
74LVC1G3157GW-Q10H#C2442271Nexperia · TSSOP-6	Nexperia	TSSOP-6	130	₹34.38 · 130 in stock	View
74LVC1G3157GW,125#C265126Nexperia · SOT-363	Nexperia	SOT-363	16,925	₹17.75 · 16,925 in stock	View
